Automatic Sunscreen tube filling sealing machine Suntan Lotion Filling Machinery

FOB Reference Price:Get Latest Price
$9,900.00 - $23,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Quick Details
Applicable Industries:
CHEMICAL, Medical, toothpaste tubes
Packaging Type:
toothpaste tubes
Packaging Material:
Automatic Grade:
Driven Type:
Place of Origin:
Jiangsu, China
Brand Name:
1 YEAR, 1 year
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Filling Quantity:
3-30ml/ 5-75ml /30-250ml
Suntan Lotion Filling Machinery
50 tubes/min
Air Consumption:
<30 ^3/min
Compressed Air:
Quantity Error:
Filling material:
cosmetic cream
Stainless Steel 304/316
Product name:
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.Export free fumigating wooden case 2.One set in one case with film wrapped
shanghai /ningbo port
Picture Example:
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Sutiable package
Product Description
Parameter of sun screen tube filling sealing machine
Filling Quantity
3-30ml/5-75ml or 30-200ml
40 -50 tubes/min
Air Consumption
<30 m³/min
Compressed Air

Automatic Sunscreen tube filling sealing machine Suntan Lotion Filling Machinery

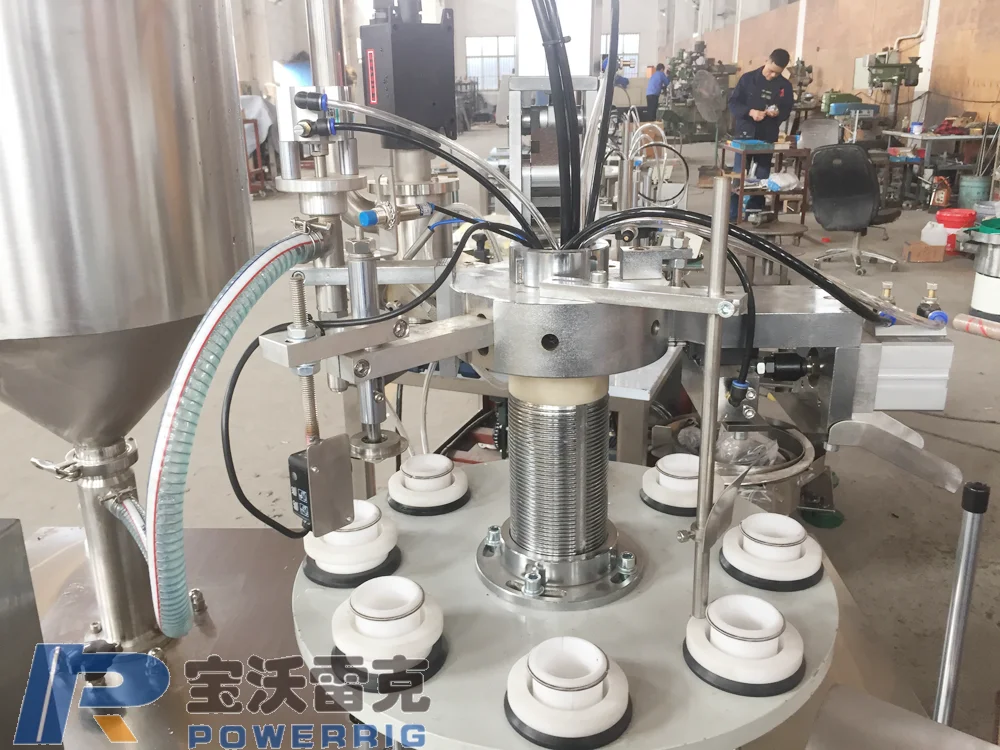

This Cost-effective full automatic face clean cream plastic soft tube filling heating gun sealing machine for cosmetic ,laminated tube FILLING & SEALING MACHINE is a simple operate sealing filling machine with inside heat and outside heat heads. It has total 8 positions for filling and sealing. And materials such as paste, toothpaste, adhesives, shampoo epoxy glue, skin cream, hair dye, shoe polish, toothpaste etc., are all applicable.

Function introduce

Note: if use the Swiss heating gun, will be need the water chiller or water circulation from well. Laminated tube don't need Swiss heating gun, Use double-outside heating head will be ok Like the video
Small and saving space

Efficient and precise
Easy to operate and flexible
Stainless steel body, neat and beautiful

Detailed Images

Swiss Liester heating gun

Heating gun adopt inside heating , can suitable to all kinds of different material and different thickness tube

sealing , Sealing effect tight and beauty.

Cooling sealing clamp

If use heating gun heating tube, the sealing clamp will connect with water chiller, sealing tube at same time cooling tube, make the sealing effect more beautiful.

Outside heating head

Double clamp heating head used to heating the outside surface of the tube end tail.

Inner heating head

Inner heatin head used to heating the inner wall of the tube end tail

Tube tail work station

Cutting the tail end of the tube after heating and sealing the tube wall.

Position check sensor

Used to fix the tube position in the tube holder before filling and sealing.

Tube load hopper

Used to load the tube into tube holder mould automatically

Can put aroumd 300-500 tubes in load hopper every time.

Stainless steel mandrel

 Stainless steel Vertical upper rod .stepping motor control rod move up .

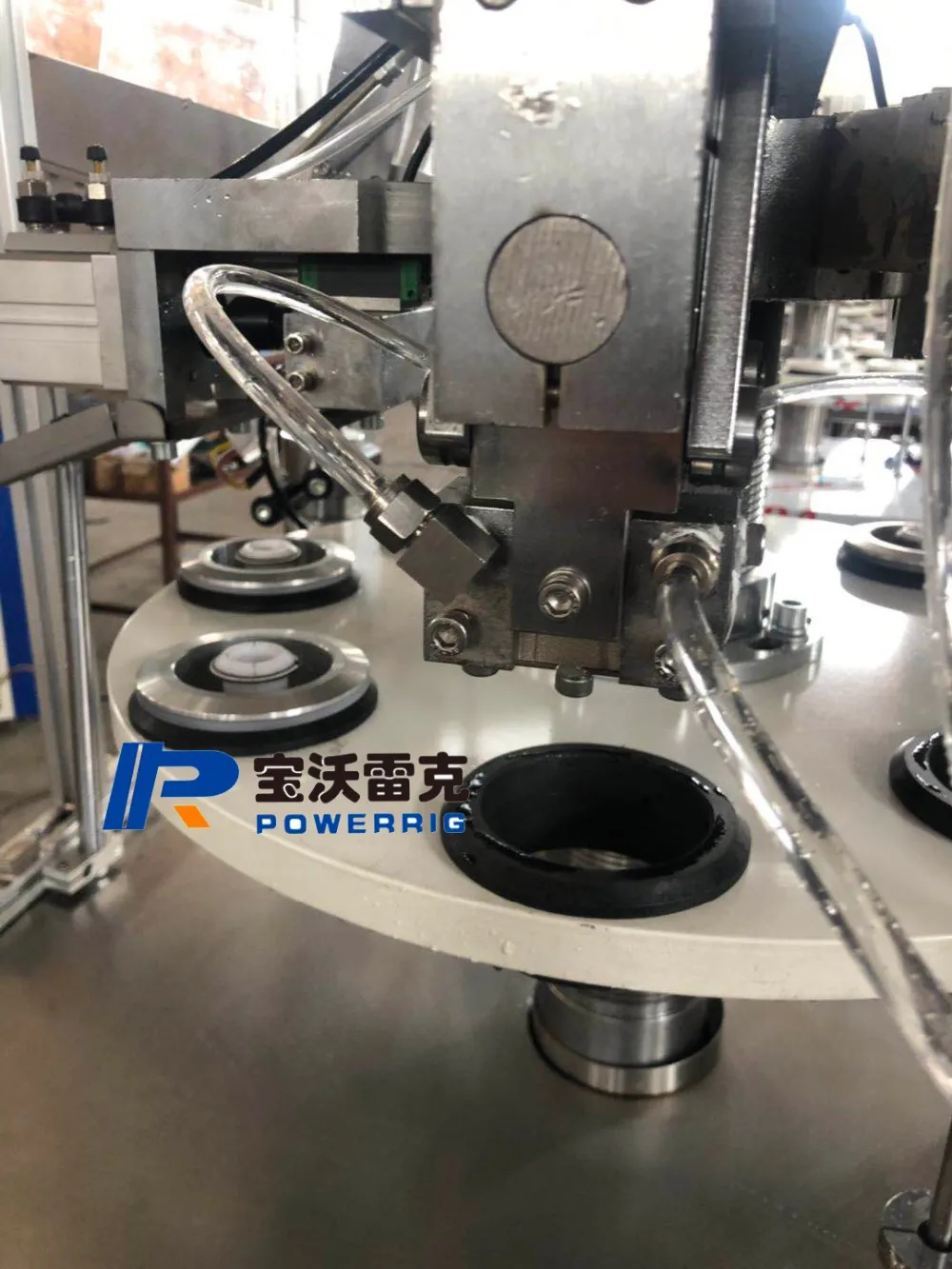

Filling nozzle

Piston cylinder control filling

Heating and mixer hopper

For high viscosity material, like toothpaste , can add heating and mixing hopper and also add the Insulation pipe.

According to customer's requirements ,filling different material or sealing different size tube, we will customize different filling method or sealing method in the machine

At same time according to customer's different tube wall thickness , we also will customize different heating sealing method,
If you have any questions or requirements about this Automatic Sunscreen tube filling sealing machine Suntan Lotion Filling Machinery ,please kinding send your inquiry:

Related Products
Machine model
Suitable tube type
Main suitable filling material
Plastic aluminum tube laminated tube
Toothpaste , pigment , pigment, cream , paste and so on
Full plastic tube
Hand cream, cosmetic cream, facial cleaner, shampoo, lotion, gel, oil , silicone sealant ,Adhesives
Full plastic tube
Hand cream, cosmetic cream, facial cleaner, shampoo, lotion, gel, oil , silicone sealant ,Adhesives
Full aluminum tube
Paint ,shoe polish ,pigment, ointment, unguent, silicone sealant, glue
Match produce line

Customize machine and match whole production line
If need  whole production line, like cream,toothpaste mixer Homogeneous emulsification machine or automatic tube filling sealing machine to improve production capacity, we also can offer automatic tube filling sealing machine for you as optional.
1. Can help customer find raw material, package tube, offer whole line serivce
2. Offer customize serivce, according to customer different tube customize machine
3. Offer Machine layout design according to customer's site size
4. Offer engineer Go abroad to install and trainning
5. Whole-lifer after sale serivce

Our Company
Packing & Delivery
1.2 T

Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

 Q:How Can I get a detailed quotation of Automatic Sunscreen tube filling sealing machine Suntan Lotion Filling Machinery ?

Just send us inquiry through this web page is ok. I will reply your any question within in 6 hours.

Q:Can your company able to offer 2 years gurantee?
Yes it's no problem for our company. During the warranty, if you need any spare parts, we will delivery it to you in DHL for free.

Q:Do you offer a free set of replacement parts for parts that commonly wear out quickly?
All spare parts are always avaliable for delivery. Above 90% spare parts are made by ourselves. Because we have our own processing center, so we can supply at anytime.

Q:What is the whole production line?Can i connect homogenizer with filling machine in whole line?
I do not know how many meters of conveyors are involved so can not determine the over-all size of the line with all of its components.
We can help you match pipe and pump to transfer material form homogenizer to filling directly., so it can be totally auatomaticlly.We will design and make a layout plan according to customer's factory floor plan.

Q:What is the cost to send installation/training staff? How many staff do you need to send?
Whole installation/traning process needs 2peoples. Around 10days. Client needs to provide us round-air ticket, visa fee, local transpotation, accomodation, food, and 80USD/day/person. .
If you have any questions or requirements about this Fully automatic skin ointment soft tube filling and sealing machine for chemical super glue ,please kinding send your inquiry:
Click here send your requirements
