High quality mini eye dropper bottles low viscosity eye drop filler capper

FOB Reference Price:Get Latest Price
$11,000.00 - $15,000.00 / Sets | 1 Set/Sets (Min. Order)
Power:
2.5KW
Model Number:
PWG-ZXS-2
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Packaging Type:
Cans, Bottles, e-cigarette
Packaging Material:
Metal, Glass, Wood, Automatic filling machine eliquid
Type:
Filling Machine
Applicable Industries:
Manufacturing Plant, mini bottle filling capping machine
Condition:
New
Application:
Food, Beverage, Medical, Chemical, Automatic filling machine
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V50HZ
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
POWERRIG
Dimension(L*W*H):
1800*1000*1500mm
Weight:
800KG
Certification:
CE ISO
After-sales Service Provided:
Online support, Video technical support, Free spare parts
Product name:
Automatic Filling machine Eliquid
Usage:
E-liquid
Filling Range:
10ml 30ml 50ml e-liquid small glass bottle filling machine
Production Capacity:
30-40 bottles/hour
Filling Volume:
1-50ml
Filling Accuracy:
99%
air pressure:
0.6mpa
Material:
Stainless Steel
Packing material:
Wood packing
After sale service:
long time after sales service
Supply Ability
Supply Ability:
100 Piece/Pieces per Month Automatic filling machine eliquid
Packaging & Delivery
Packaging Details
Automatic filling machine eliquid is packed by standard export wooden box
Port
Shanghai or ningbo
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

High quality mini eye dropper bottles low viscosity eye drop filler capper


Main features of 10ml 30ml 50ml e-liquid small glass bottle filling machine:


1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand.

3) Running in a high automatization ,no pollution.

4) Self bottle loaded.

5) Stainless steel body, neat and beautiful.

6) No bottle no filling.


Specification of eye drop filler capper
Type
Automatic eliquid filling capping machine
Power Supply:
220v/380v
Filling method
Piston pump filling Peristaltic pump filling
Filling Precision
99%
Max. Production Capacity
30-40 bottles per min 1800 -2400 BPH
Suitable Material
Essential oil,e-liquid ,eye drop,oral liquid
Dimension(L*W*H)
1800*1000*1500mm

Eye drop filler capper


The machine has been widely usde for filling essential Oil, Eye-drop, Cosmetics oil, E-liquid, oral liquid into various round and flat Glass bottles with the range from 50-200ml. High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down; constant turning arm screws caps; creep age pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

Filling material : Filling the material such as olive oil, essential oil, syrup, eyedrops, E-liquid, oral liquid etc., are all applicable.

Suitable bottle : Square bottle, round bottle , Special bottle etc.

Suitable cap: Screw cap, aluminum cap and so on.

Suitable filling volume range: 5-30ml/20-60ml/50-100ml / 100-200ml ( Can be customized)
Package Sample
Detailed images

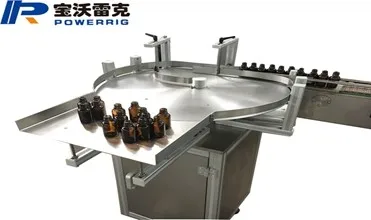

Bottle feeder table unscrabler


It is used to send bottle in the filling capping machine's conveyor belt by automatically and also can sort of the bottle.

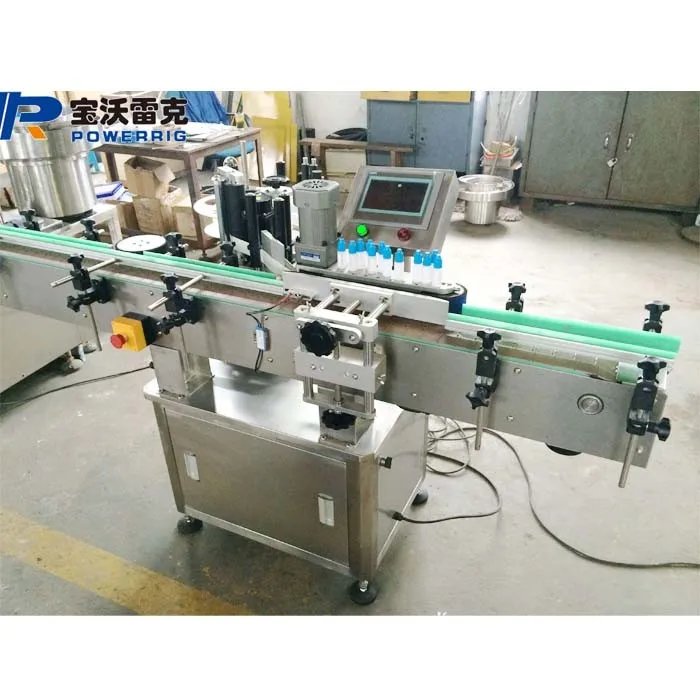

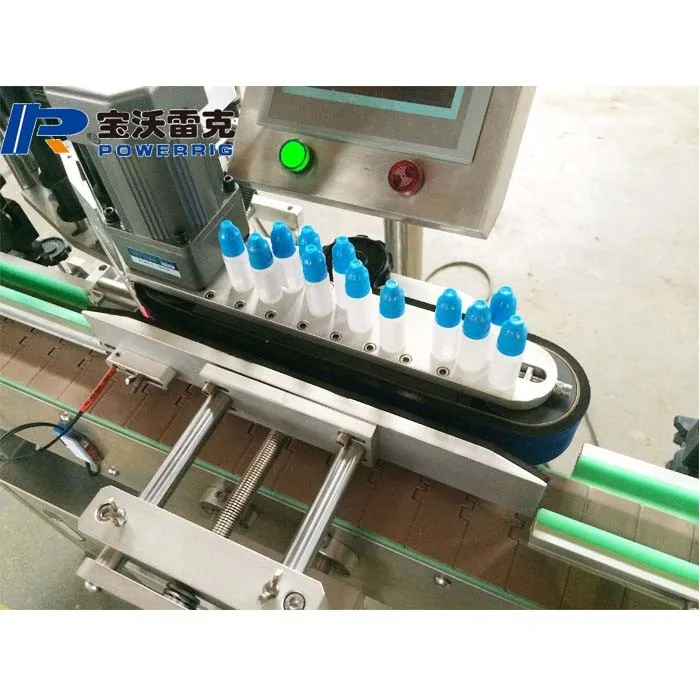

Conveyor belt


After bottle feeder loading bottle into filling capping machine then bottle load into the conevyor belt of filling capping machine automatically, The width of conveyor belt can be customized according to the different size of bottle.

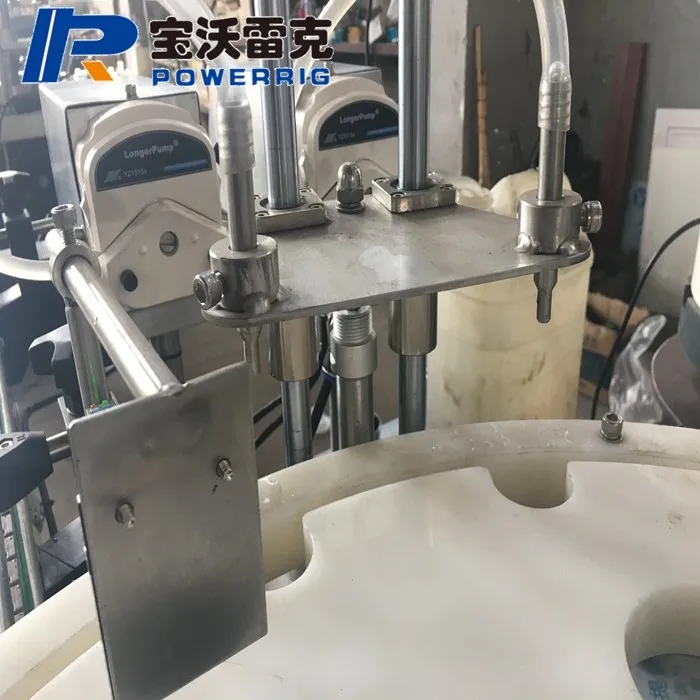

Filling nozzle


Filling different material such as different kinds of oil.

For small volume from 3ml-50ml, use servo motor contol Peristaltic pump filling , filling stable and filling accuracy is high
More than 50ml bottle can use piston pump control filling
Filling speed more faster.

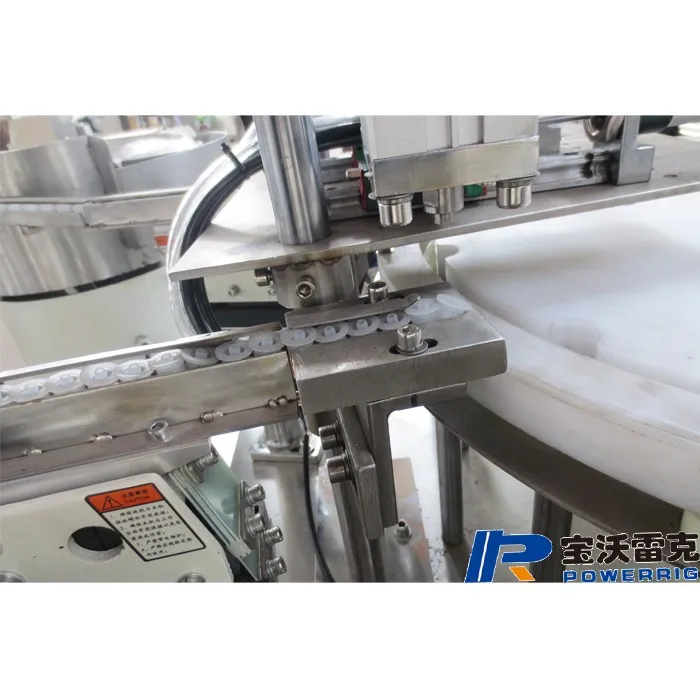

Inner Plugging and outer capping


Dould capping station will be used for inner plug and outside cap.

The plug head will suck plug and insert it into bottle mouth , capping station will suck outside cap to the bottle mouth too.

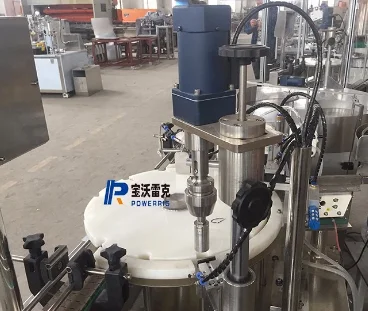

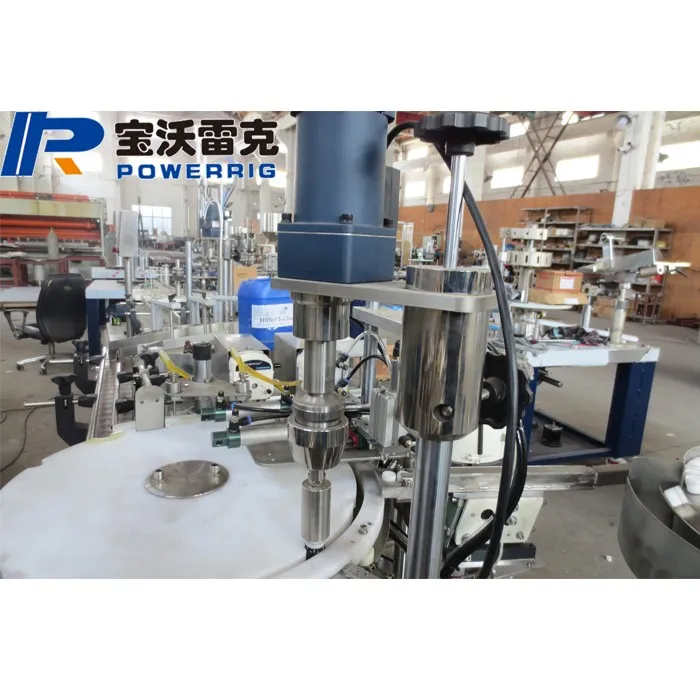

Capping head

When bottle arriving at the capping station, it will screw the capping.
Capping Twist torque can adjust according to different cap and capping speed.
Also can be customized according to the claw capping head of different shape cap.


Our Service
Pre-sale service

1. Inquirying and consulting support
2. Sample testing support
3..Veiw our factory. You are welcome to come to visit our factory,and see the machine running

After-sales Service

1. Sample service
2. Installation of service
2. Engineers available to service machinery overseas
3.Show you the video of the running machine.
4. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

5. One year warrant.

Our company

Changzhou Powerrig Machinery Technology Co., Ltd. is a professional manufacturer of filling and sealing machine, vacuum emulsifying machine, planetary mixer and a series of well-known professional facturers.

We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including soft tube filling sealing machine, aluminum tube filling sealing machine, homogenizer mixer, dryers, water chiller, bottle filling and capping machine and so on.

Due to our good credit and service, we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines.

In Powerrig machinery you can get your desired goods with the best price and good quality. Welcome your enquiries from all over the world.
Packing & Delivery

Packaging and shipping

1. Before packaged& delivered, we will test the machine seriously and guarantee the machine runs stably with high accuracy.
2. After inspection, our machines are wrapped by plastic film and then carefully packed in wooden cases.
3. Sea transportation can be provided by us.

FAQ

Q: Are you trading company or manufacturer ?
A:We are factor lie in Jiangsu province, all machine is made by ourself and the service can be customized according to your requirement.

Q: How can I ensure that I get high-quality machine?
A:As a manufacturer, we have a strict supervision and control of every manufacturing step from raw materials purchasing, brands choosing to parts processing, assembling and testing.

Q: How can I install my machine when it arrives?

A: The standard machine we will adjust it before shipping , when you get it you can directly use it . If you have other size tube that need the mold,  we will send you video of how to adjust it . Also ,  we can offer over sea technical service to come your factory install machine.


Q:What about your warranty?

A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).And offer lifetime after sale service


Q:Payment

A:T/T,30% deposit and 70% balance before delivery
