Online support, Video technical support, Free spare parts
Automatic Filling machine Eliquid
10ml 30ml 50ml e-liquid small glass bottle filling machine
After sale service:
long time after sales service
100 Piece/Pieces per Month Automatic filling machine eliquid
Packaging & Delivery
Automatic filling machine eliquid is packed by standard export wooden box
Shanghai or ningbo
1 - 1
To be negotiated
Professional supplier small bottle olive oil and e liiquid filling and capping machine essential oil filling and capper
Main features of 10ml 30ml 50ml e-liquid small glass bottle filling machine:
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand.
3) Running in a high automatization ,no pollution.
4) Self bottle loaded.
5) Stainless steel body, neat and beautiful.
6) No bottle no filling.
Specification of olive oil filling and capping machine
Automatic eliquid filling capping machine
Piston pump filling Peristaltic pump filling
Max. Production Capacity
30-40 bottles per min 1800 -2400 BPH
Essential oil,e-liquid ,eye drop,oral liquid
Olive oil filling and capping machine
The machine has been widely usde for filling essential Oil, Eye-drop, Cosmetics oil, E-liquid, oral liquid into various round and flat Glass bottles with the range from 50-200ml. High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down; constant turning arm screws caps; creep age pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.
Filling material : Filling the material such as olive oil, essential oil, syrup, eyedrops, E-liquid, oral liquid etc., are all applicable.
Suitable bottle : Square bottle, round bottle , Special bottle etc.
Suitable cap: Screw cap, aluminum cap and so on.
Suitable filling volume range: 10-30ml/20-60ml/50-100ml / 100-200ml ( Can be customized)
Bottle feeder table unscrambler
Sorting out the messy bottle then the bottles will be conveyed by conveyor belt automatically one by one.
After bottle feeder loading bottle into filling capping machine then bottle load into the conevyor belt of filling capping machine automatically, The width of conveyor belt can be customized according to the different size of bottle.

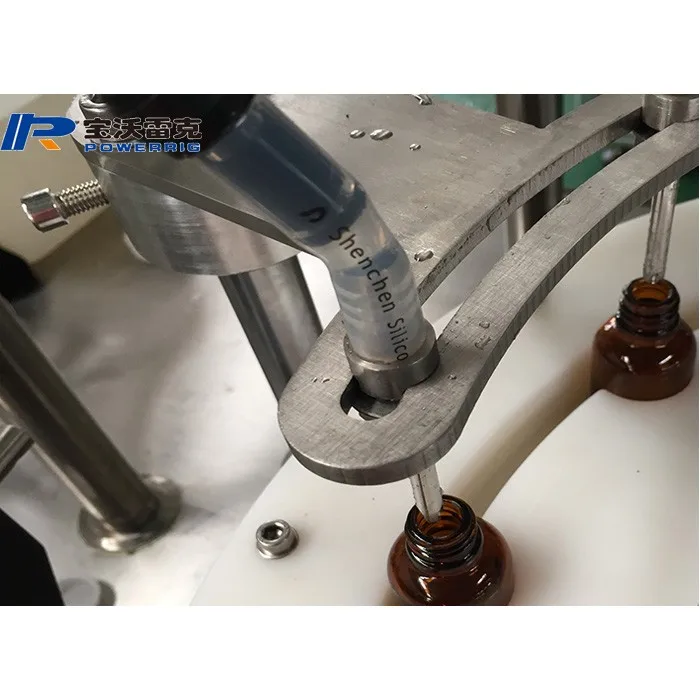

Filling nozzle (Piston pump and peristaltic pump)
Filling the material with filling heads. It could fill accurately
For small volume from 3ml-50ml, use servo motor contol Peristaltic pump filling such as eye-drop, e-liquid.
Piston pump mainly is used for the large volume(more than 50ml bottle) and high viscosity such as syrup. Filling speed will be more faster.

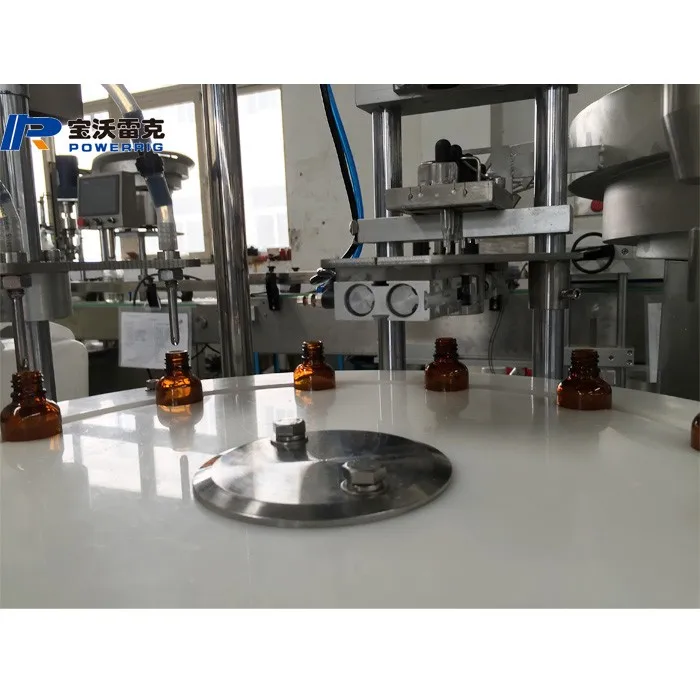

Filling and capping will be finished in the turnable.
It could fix the bottles and also fill and cap it perfectly.

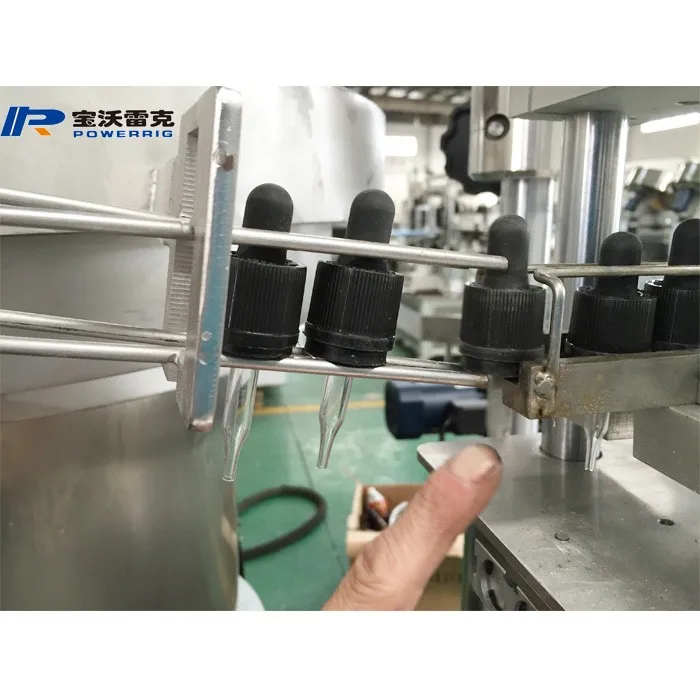

Cap conveying tunnel
It is used to transport the caps, the conveying belt is designed to allow a large number of lids to be transported to the lid holder automaticlly in an orderly way. No drop
For drop bottle,. there is only one plugging station, plug head will suck plug and put it on the bottle mouth.

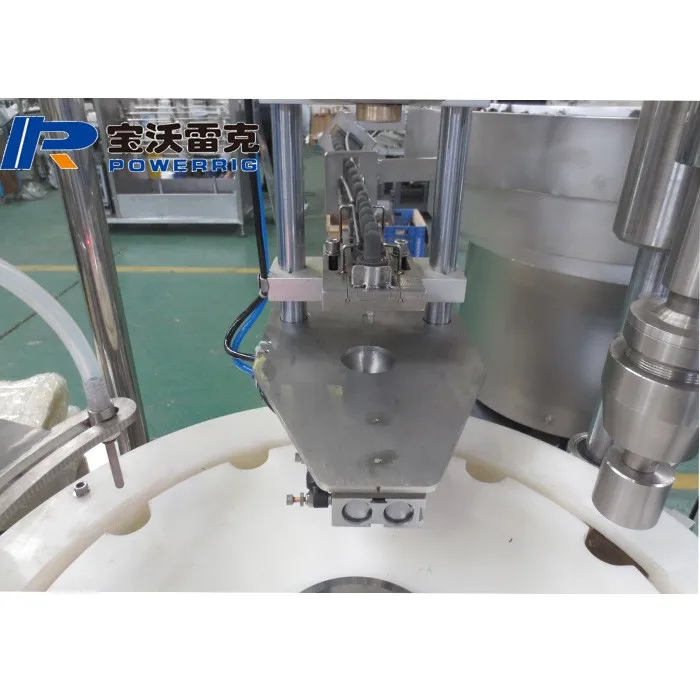

When bottle arriving at the capping station, it will screw the capping. Capping Twist torque can be adjusted according to different cap and capping speed. Also can be customized according to the claw capping head of different shape cap.
1. Inquirying and consulting support
2. Sample testing support 3..Veiw our factory. You are welcome to come to visit our factory,and see the machine running
1. Sample service 2. Installation of service 2. Engineers available to service machinery overseas 3.Show you the video of the running machine. 4. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
5. One year warrant.
Changzhou Powerrig Machinery Technology Co., Ltd. is a professional manufacturer of filling and sealing machine, vacuum emulsifying machine, planetary mixer and a series of well-known professional facturers.
We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including soft tube filling sealing machine, aluminum tube filling sealing machine, homogenizer mixer, dryers, water chiller, bottle filling and capping machine and so on.
Due to our good credit and service, we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines.
In Powerrig machinery you can get your desired goods with the best price and good quality. Welcome your enquiries from all over the world.
Packing & Delivery
Before packaged& delivered, we will test the machine seriously and guarantee the machine runs stably with high accuracy.
After inspection, our machines are wrapped by plastic film and then carefully packed in wooden cases.
Q: Are you trading company or manufacturer ? A:We are factor lie in Jiangsu province, all machine is made by ourself and the service can be customized according to your requirement.
Q: How can I ensure that I get high-quality machine? A:As a manufacturer, we have a strict supervision and control of every manufacturing step from raw materials purchasing, brands choosing to parts processing, assembling and testing.
Q: How can I install my machine when it arrives?
A: The standard machine we will adjust it before shipping , when you get it you can directly use it . If you have other size tube that need the mold, we will send you video of how to adjust it . Also , we can offer over sea technical service to come your factory install machine.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).And offer lifetime after sale service
A:T/T,30% deposit and 70% balance before delivery
