High quality Anti-Corrosive Liquid Filling Machine Bleach Filling machine

FOB Reference Price:Get Latest Price
$12,000.00 - $28,000.00 / Sets | 1 Set/Sets (Min. Order)
Power:
2KW
Model Number:
ZX-12
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Packaging Type:
Bottles, Bleach Filling machine
Packaging Material:
Plastic, High quality Anti-Corrosive Liquid Filling Machine
Type:
Filling Machine
Application:
Chemical, Anti-Corrosive Liquid Filling Machine
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V
Brand Name:
POWERRIG
Dimension(L*W*H):
2440mm *1480mm*2610mm
Weight:
700
Certification:
CE
After-sales Service Provided:
Online support, Video technical support, Free spare parts
Product name:
Bleach Filling machine
Filling material:
Bleach
Filling speed:
3500PBH
Filling nozzles:
12 Nozzle
Function:
Automatic Filling Material
Usage:
Filling Material
Filling range:
1000-5000ml
Filling volume:
1-5L
Control:
PLC+ Touch Screen
Packing type:
Wooden box
Supply Ability
Supply Ability:
10 Set/Sets per Month High quality Anti-Corrosive Liquid Filling Machine
Packaging & Delivery
Packaging Details
High quality Anti-Corrosive Liquid Filling Machine is packed by standard export wooden box
Port
Shanghai/Ningbo
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

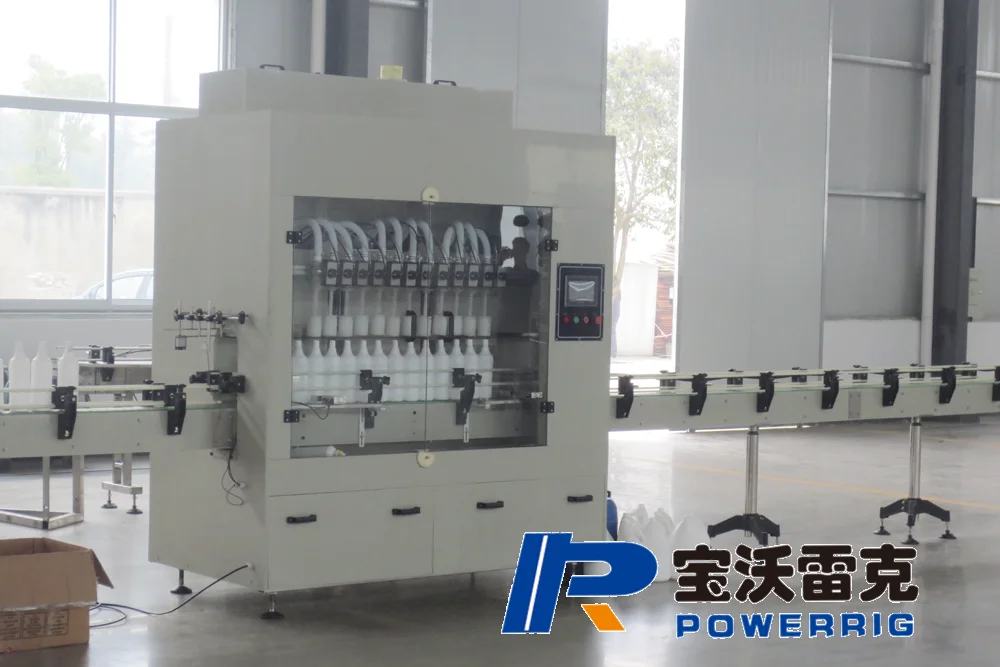

High quality Anti-Corrosive Liquid Filling Machine Bleach Filling machine

Introduction of machine :

The Time Gravity Filling Machine is often used for filling free flowing, non foaming, non flammable chemicals because of lower relative capital cost and flexibility of container size and geometry. These machines can be used to efficiently fill both containers with smaller openings as well as large bulk containers with large openings. However, if the product is foamy, the time gravity filling machine may not be as efficient as the overflow filling machine for filling containers especially with small openings. Although time gravity filling machines can be configured with subsurface and "bottom up fill" filling nozzles to control foam in smaller containers, this configuration does reduce throughput. On large containers filling either foamy or non foamy chemical products, the time gravity filling machine with subsurface filling capability is a very practical machine to use since the overall throughput requirement on bulk containers is usually low. Time Gravity Filling Machines are also preferred where it is not practical to pressurize or recirculate dangerous chemical products like corrosives or explosives. For more information about this, see the section of hazardous location and corrosive filling machines.

Application :
The materil with lower viscosity , such as water , toliet cleaner, diswashing liquid , liquid soap , detergent ect.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Running in a high automatization and intellectualization,no pollution
4) Self bottle loaded
5) Stainless steel body, neat and beautiful


Main parameter :

Filling head
12 heads
Votage
220V
Speed
≤3500BPH
Power
2kw
Filling volume
1-5L
Metering error
≤±0.1‰
Container minimum diameter
Ф50mm
Air Comsumption
0.9m3/min
Dimension
2440mm × 1480mm× 2610mm
Weight
700 kg
Detailed Images

Machine Parts

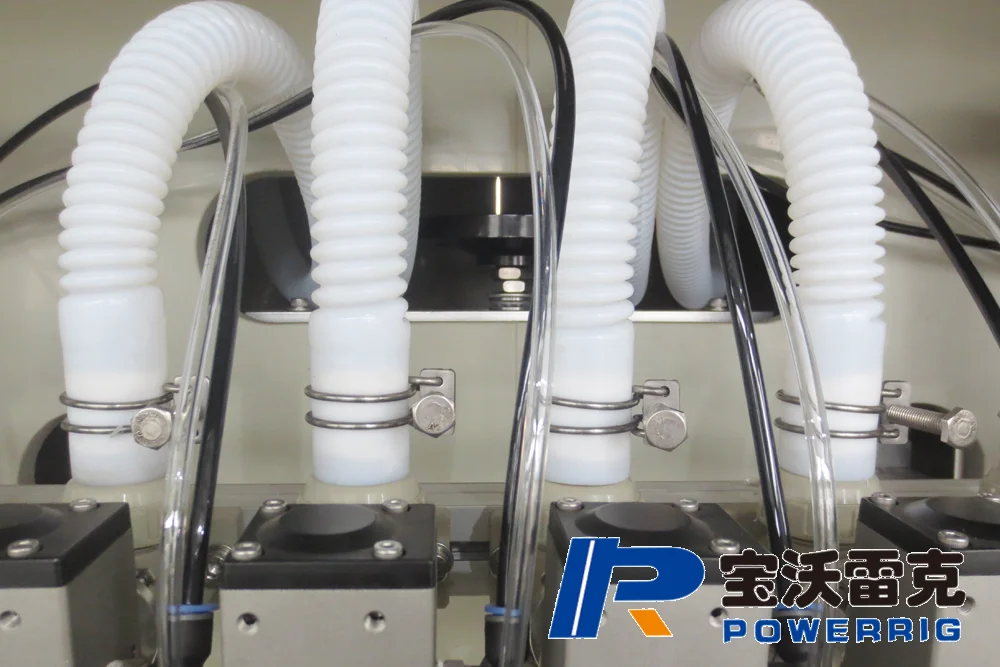

Name:  Filling nozzles

Brand: Powerrig

Original: China

Each filling nozzle add bottle fix device on the filling nozzle part, ensure when filling material, the bottle is fix in a right position, the filling nozzle use PP material customize, anti-corrosive and anti-drop. Length can customize according to different bottle.


Machine Parts

Name: Filling valve
Brand: VAA

Original: USA

Adopt VAA filling valve with high filling precision and no leak and corrosion .

Machine Parts

Name: Filling pipe
Brand: Powerrig
Original: China
Long Life Anti Corrosive filling pipe to prevent corrosive liquid to break the pipe .

Machine Parts

Name: Touch screen
Brand: Powerrig
Original: China
All operate control by PLC touch screen , like the filling volume , production capacity counting .It's easy to operate .

Related Products

Capping machine

Introduction of machine :
This machine designs a universal capping machine according to the diversity of the screw cap. When the bottle and the cover are changed, the parts need not be replaced, as long as the equipment is adjusted, the rotary cover has the advantages of high passing rate, high speed and convenient operation and maintenance. The automatic inline screw capping machine is composed of a cover system, a cover, a gland, a bottle and a screw cover. Adopting frequency conversion speed regulation. The main parts of this machine are made of high quality stainless steel and meet the requirements of GMP.

Labeling machine

Introduction of machine :
Electrical cabinet,Conveying mechanism,Separate bottle device,Rolling label device,Brush label device,1# labeling engine,Operation system and control system ;
1) Applicable labels: stickers labels, stickers film, electronic monitoring code, bar code and so on.

2) As required side, arc, circumferential, concave, convex or other surface. By changing the mold, it also can labeling on irregular object.
3) Applicable toround bottles,  labeling, such as shampoo flat bottles, lubricants flat bottles, hand-washing round bottles and other round bottle labeling,

Some cooperation brand
Certifications

Our machine configuration brand

Our Service

Lifetime after sale service

Packing & Delivery

 Use standard export wooden box packing

Before Order Confirmation:
Our factory team does all the prepare work to make sure our equipment can meet your needs by:
1. Confirm customer packing requirements, such as packing material , filling volume , production capacity requirements ect.
2.Offer drawing, machine model details and formula suggestion for confirm.
3.Give information like quotation ,production time ,delivery time,etc.
4.Design packaging sulotions ,based on clients' requirements.
 During Order Production
Our factory has full-time merchandiser who will update all our clients' order condition from our producing line each day,then our salesman will keep clients updated of the production each week by E-mail,Phone call ,photos or Video.
After Order Finished and service
1.We will keep touch with our clients feedback the order finish and send video of customer packing material and pictures .After customer confirm then pay the balance .
2.Our machine have 1 year guarantee that any part broken within one year , we will send you by free . And we do lifetime after sale service , any time you have problem you can contact us by email , whatsapp. skype etc. We will reply you within 12hours. And tell you the solutions .

This production line is customized,and we will make a suitable plan for you according to your detailed request.More informations, please feel free contact :

 Tell&Whatsapp:+86 18257104541

 Skype: Mic-Yilia

 QQ: 985465791

Wechat: lyh1308953921
