Touch screen control engine oil filling machine car oil bottle filling capping machine line

FOB Reference Price:Get Latest Price
$12,000.00 - $36,000.00 / Sets | 1 Set/Sets (Min. Order)
Power:
2.5KW
Model Number:
PWG-ZX-8
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year, 1 Year
Packaging Type:
Bottles, Cans, Capsule, car oil bottle filling capping machine
Packaging Material:
Glass, Metal, Plastic, engine oil filling machine
Type:
Filling Machine
Condition:
New
Application:
Chemical, Food, car oil bottle filling capping machine line
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V
Place of Origin:
Jiangsu, China
Brand Name:
POWERRIG
Dimension(L*W*H):
2400*1500*2500mm
Weight:
800kg
Certification:
CE ISO
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Engineers available to service machinery overseas
Function:
Automatic filling material
Material:
Stainless Steel 304
Filling material:
Flowing Liquid
Filling nozzle:
16 nozzles
Filling range:
1-5L
Production capacity:
4000-5000 BPH
Filling way:
Piston filling
After sale service:
Lifetime after sale serive
Supply Ability
Supply Ability:
10 Set/Sets per Month engine oil filling machine
Packaging & Delivery
Packaging Details
engine oil filling machine is packed by standard export wooden box
Port
Shanghai/Ningbo
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Video Description
Product Description

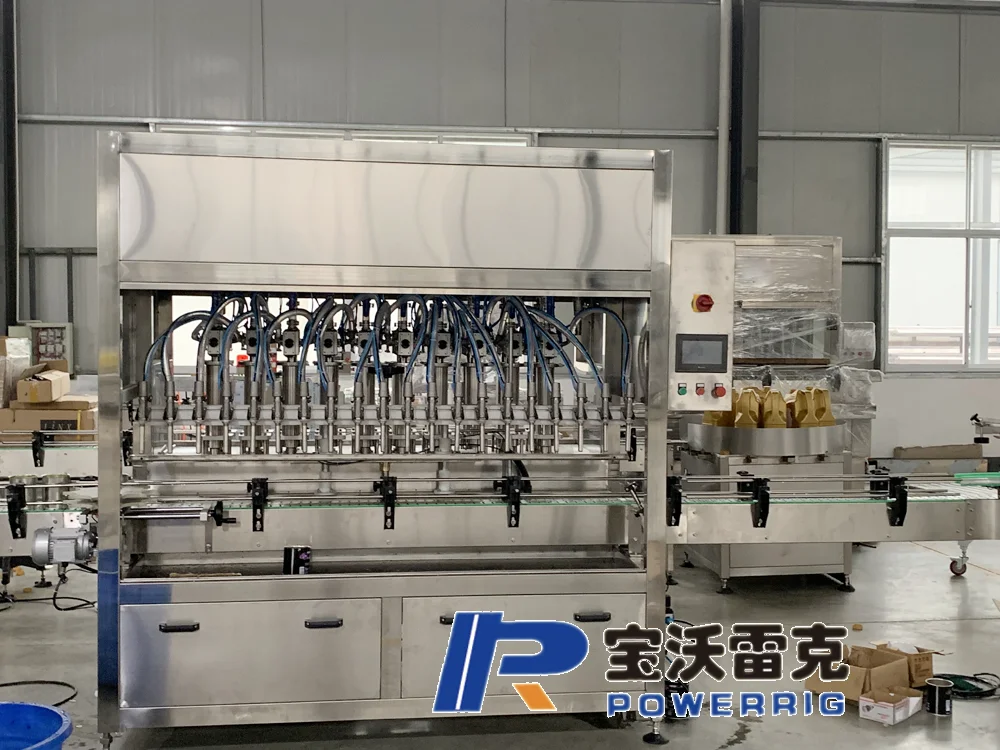

 Touch screen control engine oil filling machine car oil bottle filling capping machine line

Product Introduction:

This machine adopt PLC touch screen Siemens control,It's adopt piston filling form. The filling nozzle material tank and touches liquid part material is USU304 Teflon and POM.And it have proteation device that machine will stop and alarm when lack of materials .


Application :

Filling material : Car oil, motor oi, engine oil, detergent,shampoo,dishwasher,liquid soap ,toilet cleaner etc .
Suitable bottle : Square bottle, round bottle , Unique bottle etc.
Suitable cap: Screw cap, press cap , pump cap
Suitable label:Sticker Label
Suitable filling volume range: 100ml-1000ml , 500-2000ml, 1000-5000ml ( Could according to customer filling volume custom made)


Main parameter
Filling head
16 heads
Votage
220V
Speed
≤5000BPH (base on 1L)
Power
2kw
Filling volume
1-5L
metering error
≤±3‰
Container minimum diameter
Ф50mm
Air Comsumption
0.9m3/min
Working Pressure
0.6Mpa-0.7Mpa
Dimension
2440mm × 1480mm× 2610mm

Main Features

1) PLC programmable control, with touch screen man-machine interface system .
2) Automatic feeding, automatic filling, automatic out bottle after filling .
3) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
4) Stable and reliable operation, high production efficiency, strong adaptability .
5) Filling volume adjustable , each filling nozzle could be single use , you can stop any filling nozzle at any time .

Detailed Images

Machine Parts

Name:  Material tank

Brand: Powerrig

Original: China

1.The material box and ball valve are made of 316 high quality stainless steel, and has the ability of corrosion resistance.

2.The design of the hopper is designed with the slope, which can be convenient for the customers to change the variety, which is convenient for cleaning and meets the requirements of GMP.

Machine Parts

Name: Piston cylinder
Brand: Power
Original: China
According to customer production capacity requirements could make 1-5 liter cylinder

Machine Parts

Name: Touch screen
Brand: Canada Xinjie
Original: China
The whole filling processing adopt touch screen control , and each filling nozzle could be single use by touch screen control

Machine Parts

Name: driving system
Brand: Power
Original: China
The machine adopt servo motor double screw-rod drive, Control the movement of the piston rod to ensure the stability of the filling
.

Capping machine

Introduction of machine :

This machine designs a universal capping machine according to the diversity of the screw cap. When the bottle and the cover are changed, the parts need not be replaced, as long as the equipment is adjusted, the rotary cover has the advantages of high passing rate, high speed and convenient operation and maintenance. The automatic inline screw capping machine is composed of a cover system, a cover, a gland, a bottle and a screw cover. Adopting frequency conversion speed regulation. The main parts of this machine are made of high quality stainless steel and meet the requirements of GMP.

Labeling machine

Introduction of machine :

Electrical cabinet,Conveying mechanism,Separate bottle device,Rolling label device,Brush label device,1# labeling engine,Operation system and control system ;

1) Applicable labels: stickers labels, stickers film, electronic monitoring code, bar code and so on.
2) As required side, arc, circumferential, concave, convex or other surface. By changing the mold, it also can labeling on irregular object.
3) Applicable to flat bottles, round bottles, square bottles of single-sided and double-sided labeling, such as shampoo flat bottles, lubricants flat bottles, hand-washing round bottles and other double-sided labeling,

Related Products
Machine producing process
Certifications

Our machine configuration brand

Our Service

Lifetime after sale service

Packing & Delivery

 Use standard export wooden box packing

Before Order Confirmation:
Our factory team does all the prepare work to make sure our equipment can meet your needs by:
1. Confirm customer packing requirements, such as packing material , filling volume , production capacity requirements ect.
2.Offer drawing, machine model details and formula suggestion for confirm.
3.Give information like quotation ,production time ,delivery time,etc.
4.Design packaging sulotions ,based on clients' requirements.


 During Order Production
Our factory has full-time merchandiser who will update all our clients' order condition from our producing line each day,then our salesman will keep clients updated of the production each week by E-mail,Phone call ,photos or Video.

After Order Finished and service
1.We will keep touch with our clients feedback the order finish and send video of customer packing material and pictures .After customer confirm then pay the balance .
2.Our machine have 1 year guarantee that any part broken within one year , we will send you by free . And we do lifetime after sale service , any time you have problem you can contact us by email , whatsapp. skype etc. We will reply you within 12hours. And tell you the solutions .
