Aluminum filling machine
food, medical, tube filling sealing machine
Nitrogen Blow after filling
60-80 tubes/ minute
100 Piece/Pieces per Month
Packaging & Delivery
Standard export wooden box
Shanghai or ningbo
1 - 1
To be negotiated
Automatic aluminum tube filling and sealing machine for cosmetic and pharmaceutical
why choose us?
1.We are specialized in the production of filling&sealing machine such as Semi-auto or Automatic Soft Tube Filling Sealing Machine, Semi-auto or Automatic Metal Tube Filling Sealing Machine, Semi-Auto Glue Filling Capping Machine, Automatic perfume Filling Capping Machine, Automatic Small Bottle Filling Capping Machine, Automatic E-liquid Filling Capping Machine. Liter Vacuum,. Homogenizer, Linear Filling line and so on.
2. Our advantage: Factory supplier with reasonable price; high quality control with CE, quick reply with superior service; OEM are welcomed.
3.Our company has many years experience and good reputation.
4. Our trading markets are spread across Asia and south America.
5. We attend the Canton fair every year, you can come and visit.
Automatic aluminum tube filling sealing machine
Automatic filling machine with one filling head has multiple purpose, it is ideal equipment aluminum tube. A automatic aluminum tube filling and sealing machine is widely used for metal hose filling and sealing. A metal tube filling and sealing machine put the tube into a rotary indexing table, orients the tube then fills and seals by folding for aluminum metal tubes. This FWJ-l60 cosmetic filling and sealing machine has 16positions in total. It is suitable for food products, chemical products, greases. gels. glues, epoxy glue, skin cream and so on.
Parts of introduction
1. Hopper: where the filling material are loaded
2. Control panel: To control the machine
3. Electric Box: Contain all the motive parts, such as motor, transducer, electric box. PLC etc...
4. Filling Head: Filling the material
5. Tube Loader: where are the tubes are loaded in the loader. they will be conveyed automatically to the working desk by tunnel
6. Folding Head: Folding the bottom of tube
7. Tube Orientation
8. Exit Tunnel
9. Rotary table
Specification of automatic aluminum tube filling sealing machine
Max. Production Capacity
60-80tube per minuter
Maxinum Tube Dia
Nitrogen Blow after filling
1. Automatic tube feeding
2. Automatic tube orientationed
3. Sealing system: folded
4. No tube no filling
5. Date coding at the bottom
6. Machine body stainless steel 304
7.Simense Electric PLC controller with touch screen
Introduction of main steps
Step1: Manually put the tubes into the molds on the plate(16points)
Step2: Tubes point loacated by the device(color sensor optional)
Step3: Starting filling when the tube is sensed by the light
Step4:folds sealing and output finished products
Use Germany sensor orient the tube position
The sensor check Accuracy can reach 0.03%..
It can be customized according to customer's different material such as the heating hopper, mixer hopper and anti-corrosion hopper.
Also can match automatic loading material pump and transfer material system to machine's hopper.

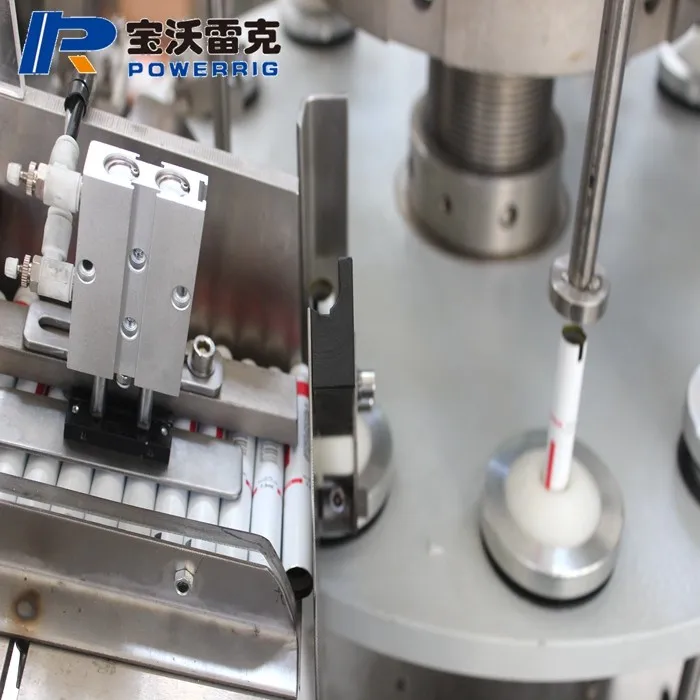

Auto loading tube tunnel
Transiting the tube into the tube holder mould automatically.
And the press head will orient the tube position automatically before tube into next station

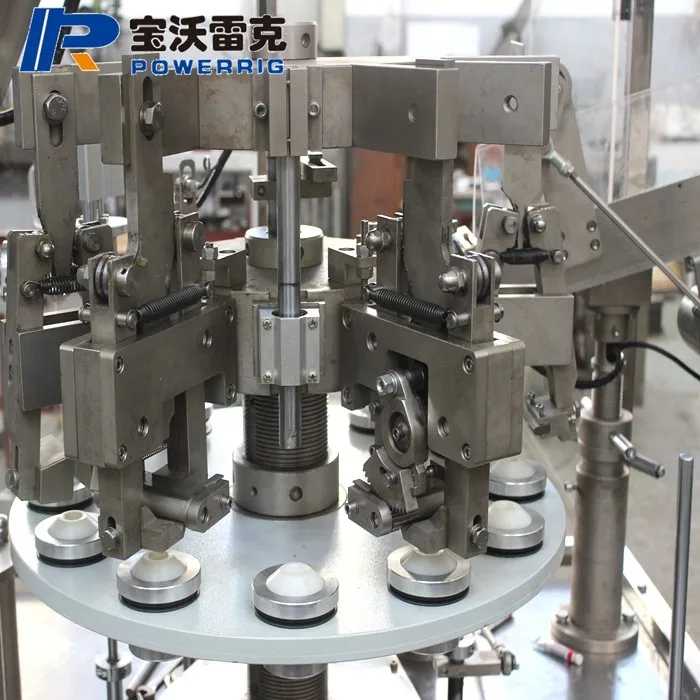

Folding and Reverse folding
Normally tube tail need folding 2-4 times.
One position has several functions, it is more quickly, at the same time, so tight and beautiful for sealing.
1. Inquirying and consulting support
2. Sample testing support 3..Veiw our factory. You are welcome to come to visit our factory,and see the machine running
1. Sample service 2. Installation of service 2. Engineers available to service machinery overseas 3.Show you the video of the running machine. 4. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
5. One year warrant.
Changzhou Powerrig Machinery Technology Co., Ltd. is a professional manufacturer of filling and sealing machine, vacuum emulsifying machine, planetary mixer and a series of well-known professional facturers.
Packing & Delivery
Q: Are you trading company or manufacturer ? A:We are factor lie in Jiangsu province, all machine is made by ourself and the service can be customized according to your requirement.
Q: How can I ensure that I get high-quality machine? A:As a manufacturer, we have a strict supervision and control of every manufacturing step from raw materials purchasing, brands choosing to parts processing, assembling and testing.
Q: How can I install my machine when it arrives?
A: The standard machine we will adjust it before shipping , when you get it you can directly use it . If you have other size tube that need the mold, we will send you video of how to adjust it . Also , we can offer over sea technical service to come your factory install machine.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).And offer lifetime after sale service
A:T/T,30% deposit and 70% balance before delivery
>>>> Welcome to contact us>>>>
If you have any interest in filling and sealing machine you may send email to me or add me with online contact way, so that i can solve your question more quickly.
