Full Automatic L45 aluminum tube filling sealing machine for medical ointment

FOB Reference Price:Get Latest Price
$11,000.00 - $13,000.00 / Sets | 1 Set/Sets (Min. Order)
Power:
1.1kw
Model Number:
FWJ-L45
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Packaging Type:
Tube
Packaging Material:
Wood
Type:
Filling Machine
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
POWERRIG
Dimension(L*W*H):
1850*950*1980mm
Weight:
800KG
Certification:
CE certification
After-sales Service Provided:
Online support, Video technical support, Free spare parts
Product name:
Filling sealing machine
Filling material:
food, medical, tube filling sealing machine
Function:
Filling Sealing Date Printing
Filling Range:
5-75ml/75-150ml/150ml-300ml
Production Capacity:
10-40 tubes/ minute
Filling head:
1 Head
Filling Accuracy:
99%
Control:
Button Control
Material:
Stainless Steel
Packing material:
Wood packing
Supply Ability
Supply Ability:
100 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard export wooden box
Port
Shanghai or ningbo
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

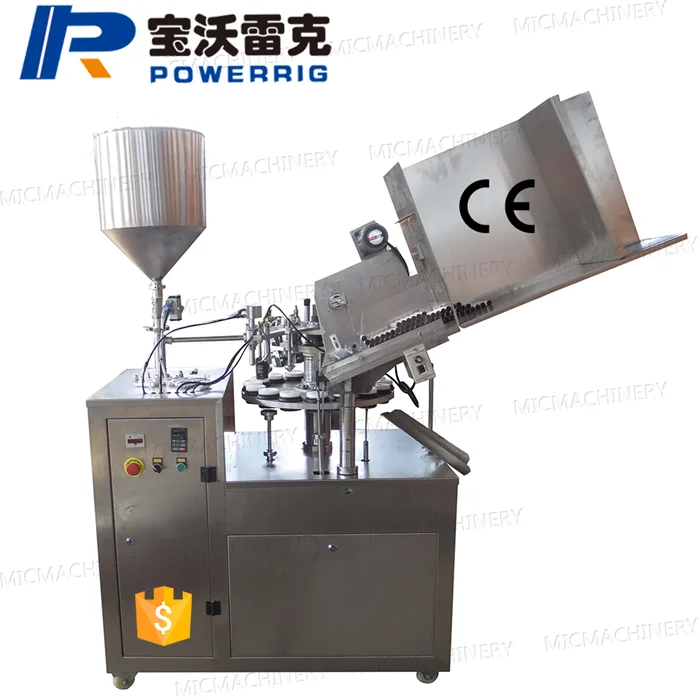

Full Automatic L45 aluminum tube filling sealing machine for medical ointment


why choose us?

1.We are specialized in the production of filling&sealing machine such as Semi-auto or Automatic Soft Tube Filling Sealing Machine, Semi-auto or Automatic Metal Tube Filling Sealing Machine, Semi-Auto Glue Filling Capping Machine, Automatic perfume Filling Capping Machine, Automatic Small Bottle Filling Capping Machine, Automatic E-liquid Filling Capping Machine. Liter Vacuum,. Homogenizer, Linear Filling line and so on.

2. Our advantage: Factory supplier with reasonable price; high quality control with CE, quick reply with superior service; OEM are welcomed.

3.Our company has many years experience and good reputation.

4. Our trading markets are spread across Asia and south America.

5. We attend the Canton fair every year, you can come and visit.
Specification of filling machine for medical ointment:
Type
Filling machine
Power Supply:
220v/50HZ
Filling Volume
5-75ML /50-200ML/100-300ML
Filling Precision
99%
Max. Production Capacity
10-40tube per minuter
Dimension(L*W*H)
1300*700*1400mm
Filling material
Aluminum tube
Maxinum Tube Dia
60mm
Additional Function
Piston filling

Filling machine for medical ointment


Automatic filling machine with one filling head has multiple purpose, it is ideal equipment aluminum tube. A automatic aluminum tube filling and sealing machine is widely used for metal hose filling and sealing. A metal tube filling and sealing machine put the tube into a rotary indexing table, orients the tube then fills and seals by folding for aluminum metal tubes. This FWJ-L45 cosmetic filling and sealing machine has 16positions in total. It is suitable for food products, chemical products, greases. gels. glues, epoxy glue, skin cream and so on.
Parts of introduction

1. Hopper: where the filling material are loaded
2. Control panel: To control the machine
3. Electric Box: Contain all the motive parts, such as motor, transducer, electric box. PLC etc...
4. Filling Head: Filling the material
5. Tube Loader: where are the tubes are loaded in the loader. they will be conveyed automatically to the working desk by tunnel
6. Folding Head: Folding the bottom of tube
7. Tube Orientation
8. Exit Tunnel
9. Rotary table
Main Features

1. Automatic tube feeding

2. Automatic tube orientationed

3. Sealing system: folded

4. 16 stations on rotary table

5. No tube no filling

6. Date coding at the bottom

7. Machine body stainless steel 304

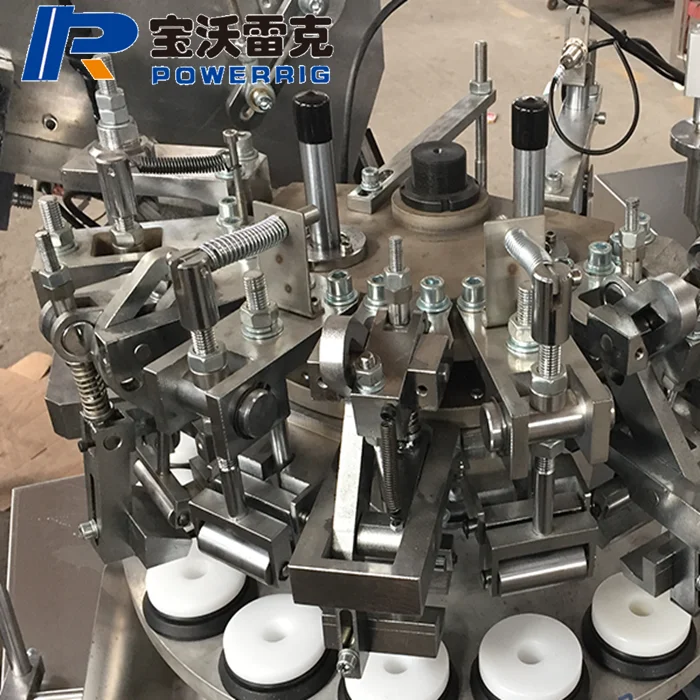

Detailed image

Introduction of main steps

Step1: Manually put the tubes into the molds on the plate(16points)

Step2: Tubes point loacated by the device(color sensor optional)

Step3: Starting filling when the tube is sensed by the light

Step4:4folds sealing and output finished products

Our Service
Pre-sale service

1. Inquirying and consulting support
2. Sample testing support
3..Veiw our factory. You are welcome to come to visit our factory,and see the machine running

After-sales Service

1. Sample service
2. Installation of service
2. Engineers available to service machinery overseas
3.Show you the video of the running machine.
4. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

5. One year warrant.

Our company

Changzhou Powerrig Machinery Technology Co., Ltd. is a professional manufacturer of filling and sealing machine, vacuum emulsifying machine, planetary mixer and a series of well-known professional facturers.

Packing & Delivery
FAQ

Q: Are you trading company or manufacturer ?
A:We are factor lie in Jiangsu province, all machine is made by ourself and the service can be customized according to your requirement.

Q: How can I ensure that I get high-quality machine?
A:As a manufacturer, we have a strict supervision and control of every manufacturing step from raw materials purchasing, brands choosing to parts processing, assembling and testing.

Q: How can I install my machine when it arrives?

A: The standard machine we will adjust it before shipping , when you get it you can directly use it . If you have other size tube that need the mold,  we will send you video of how to adjust it . Also ,  we can offer over sea technical service to come your factory install machine.


Q:What about your warranty?

A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).And offer lifetime after sale service


Q:Payment

A:T/T,30% deposit and 70% balance before delivery
