perfume crimping machine
crimping machine perfume
vacuum filling machine
25-250ML. 50-500ML. filling volume can customize
30-50 bottles per min
PLC+ touch screen
15 Set/Sets per Month
Packaging & Delivery
1.Export free fumigating wooden case 2.One set in one case with film wrapped
1 - 1
To be negotiated
Parameter of perfume filling capping machine
3 piece Three heads all is vacuum filling
Vacuum sucition back filling method
30- 60 bottlse per minute
+/- 1mm Filling volume from 5ml -100ml (customize)

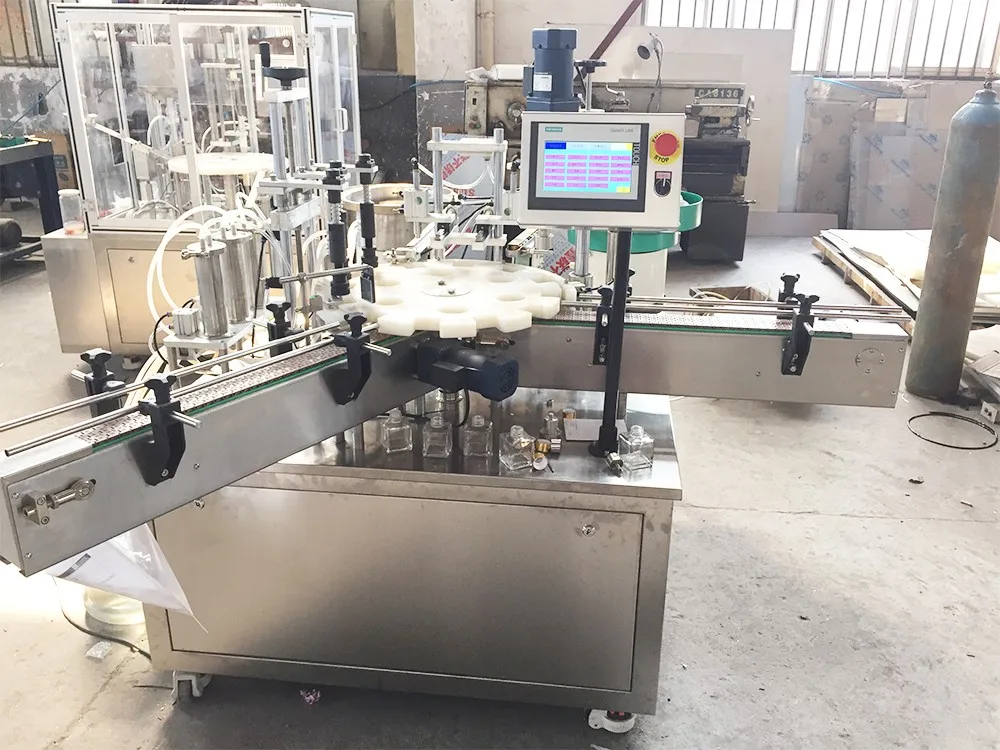

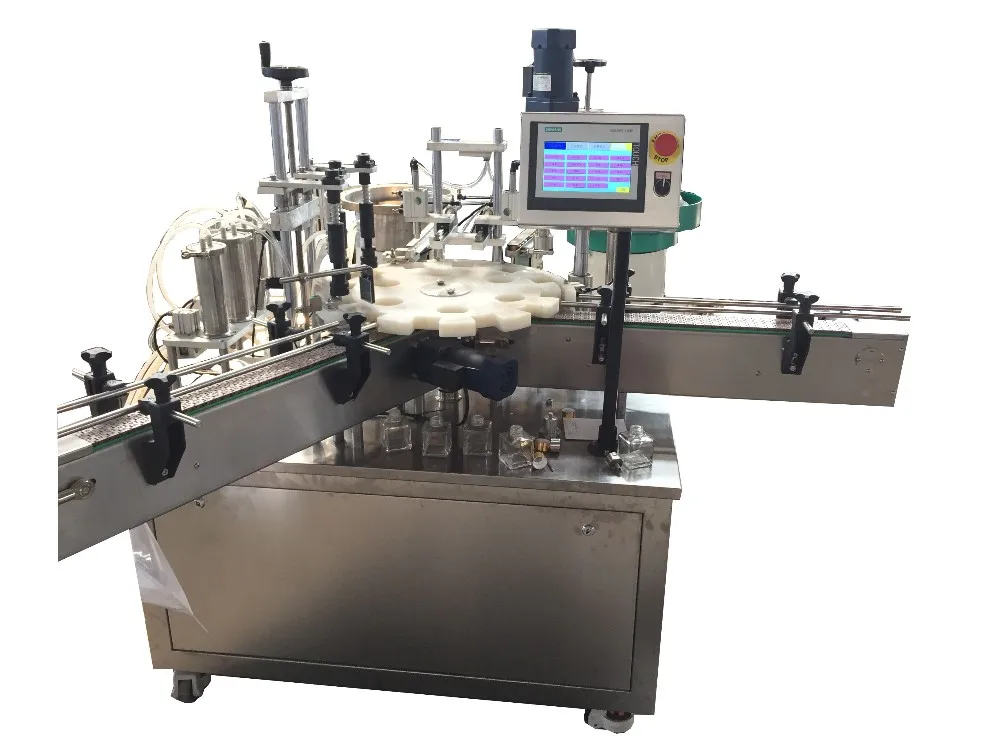

Spray pocket perfume bottle filling capping and plugging machine
This Spray perfume bottle filling capping and plugging machine perfume bottles cover filling is auto negative pressure vacuum filling, auto bottle detecting( no bottle no filling ), filling for three times. Auto dropping of crimp pump cap, circulation of spray bottles' die set, It is wide adaptability which can meet to requirements of different dimension and filling volume of containers. This filling machine can be divided into automatic bottles feeding (Also can use choose manual load bottle) automatic filling, automatic pump cap capping head, pre-capping head for regulate and tighten up pump cap head and automatic capping etc. The filling separate 3 times filling ,capping separate 2 times capping, Ensure the filling accuracy higher and filling speed faster.
Work princinple of perfume filling crimping machine
Put the bottles into the feeding conveyor, let them enter the filling machine in order The exam sensor starts to exam if there is bottle on this station. Then deliver the exam signal to the inner control system, to control no bottle, no filling If the sensor exams there are bottles, then the filling machine starts to fill. The bottles after filling enter into the automatic caps dropping station through the rotary table. The bottles after dropping caps enter into automatic capping station.

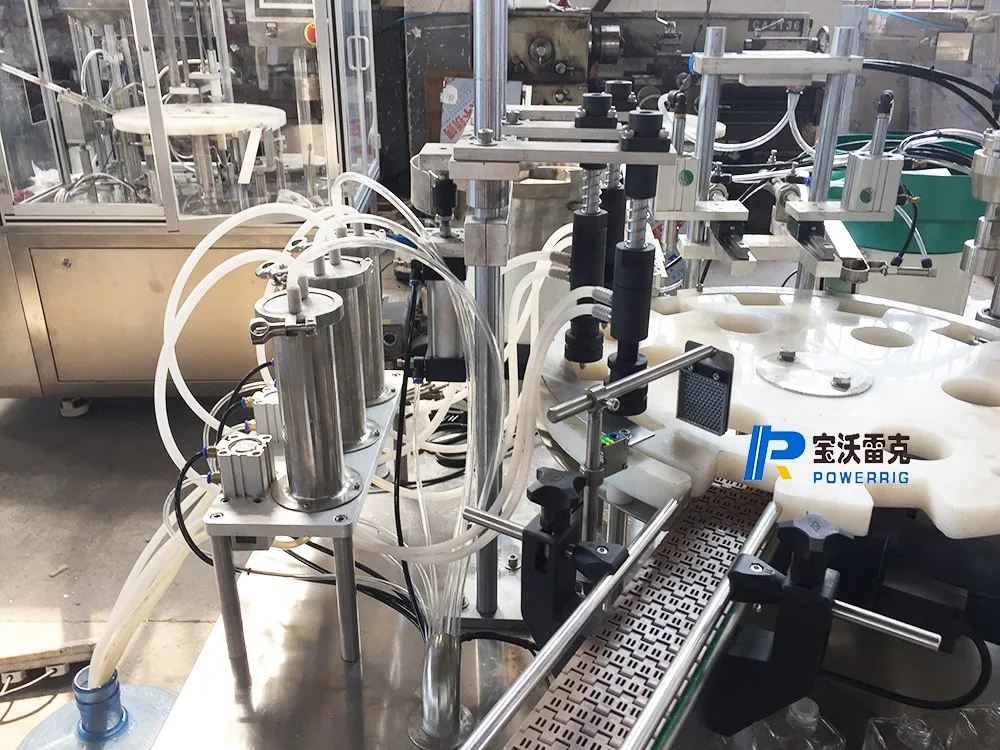

Vacumm suction filling pump for perfume
Our machine filling head have a suction liquid return back function,filling nozzle connect with suction back cylinder
When the filling liquid reach we set up fix Level, the overage liquid will be suctioned back, Because when inner pipe filling material reach the fix level of outside jacket.

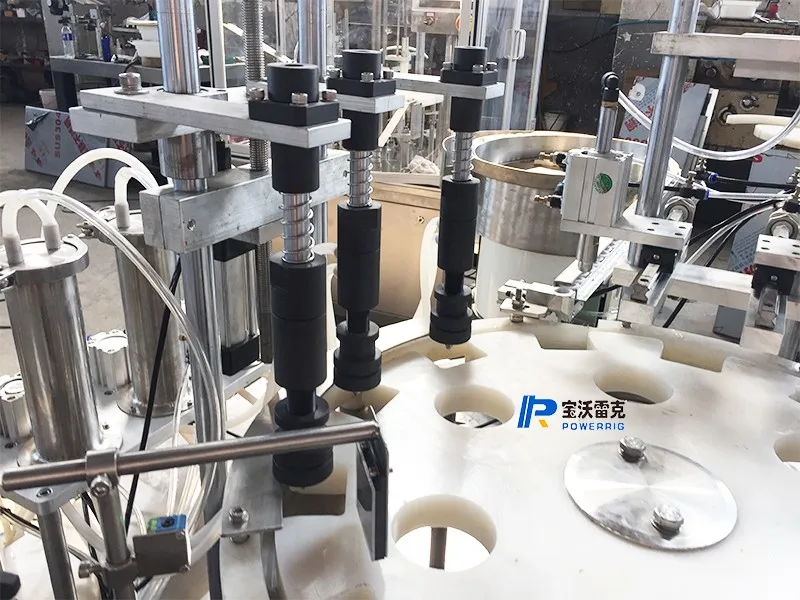

Vacuum filling nozzle for perfume filling
The outside jacket connect with vacuum suction air pipe. The inner jacket connect with filling perfume material pipe. Outside jacket connect with Negative pressure suction air pipe(There are have a vacuum generator connect with the air pipe) . Before filling perfume, outside jacket will sealing the bottle mouth first and suction the air from bottle

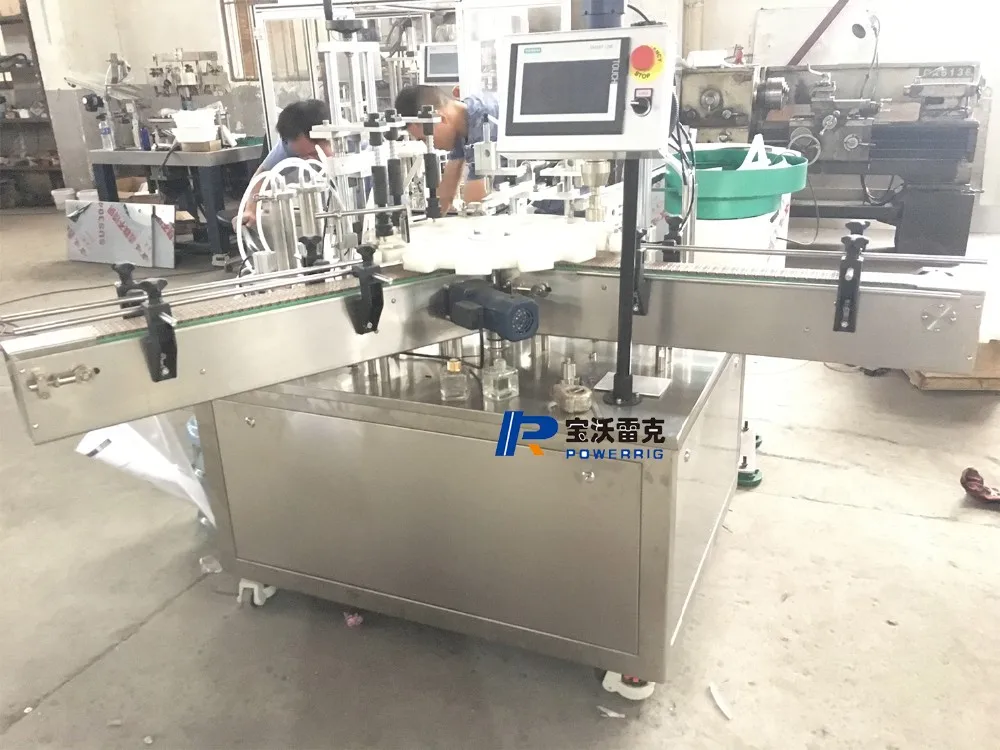

Perfume bottle load into conveyor blet
Use conveyor belt loading glass perfume bottle into rotary turn chuck table.

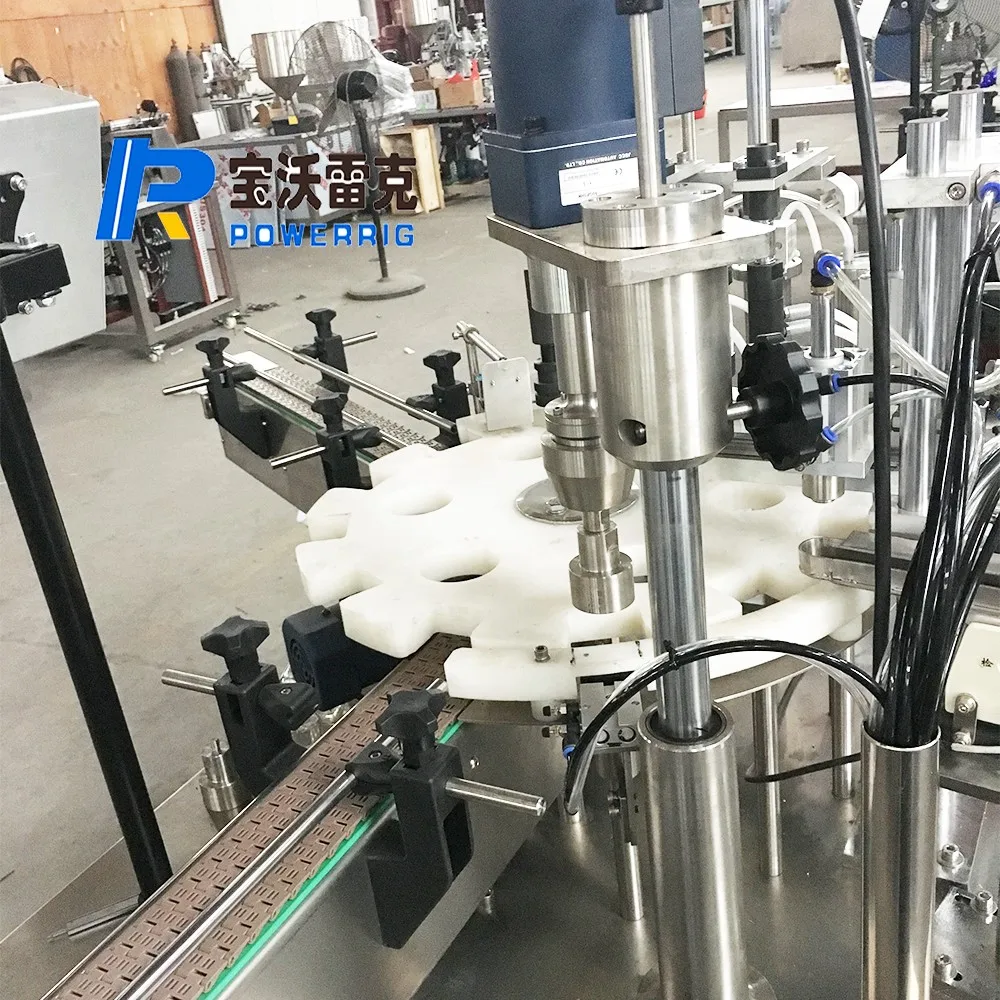

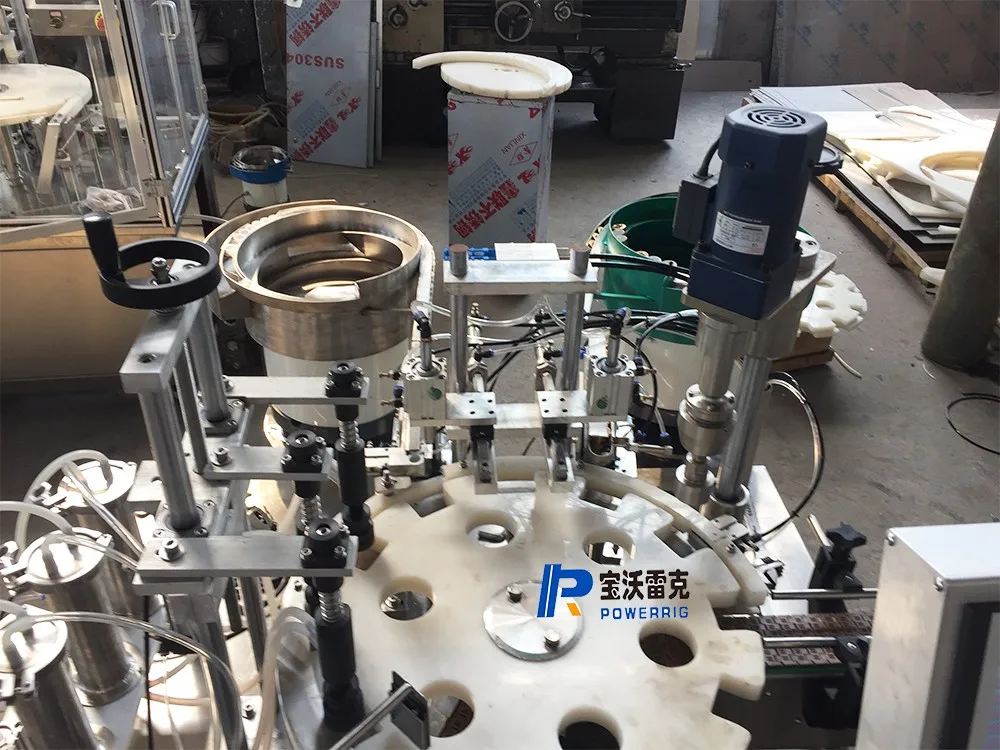

Capping heads or crimping head
Cans customize different type capping head or crimping head according to customer's different cap

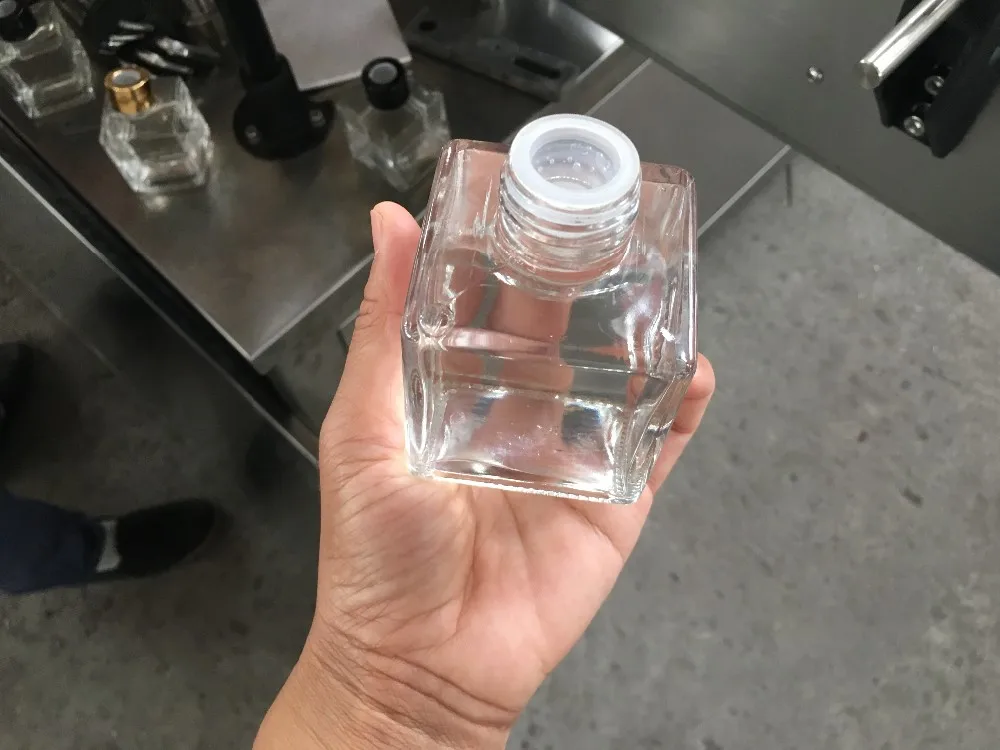

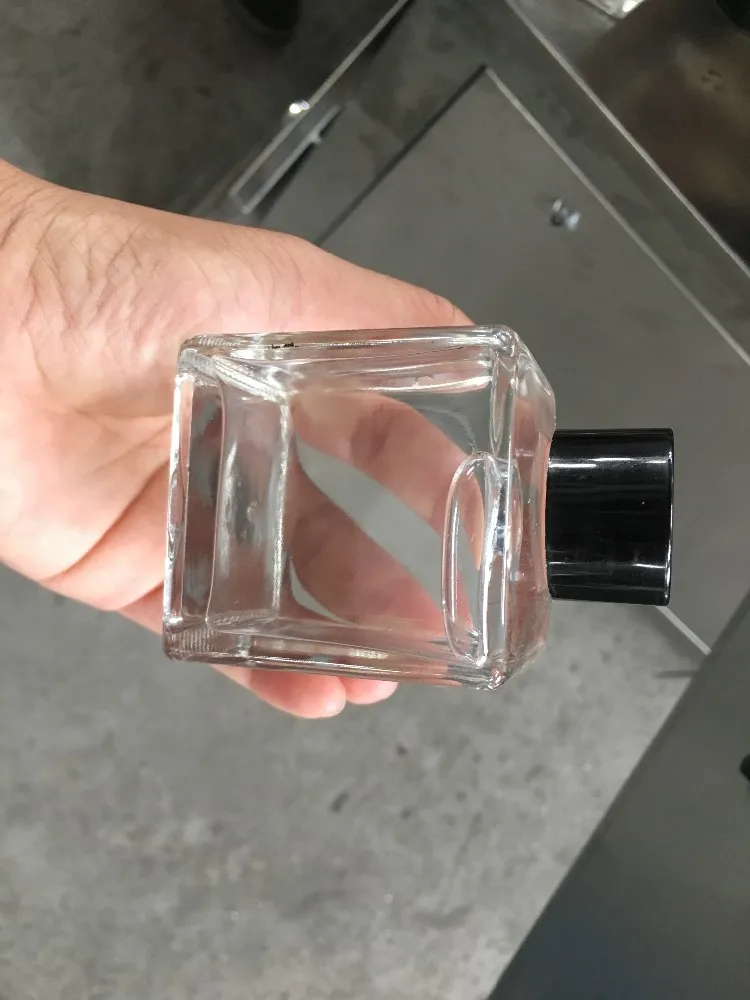

If your caps is plastic cap with inner plug can use above picture show capping head, if your caps is metacl spray cap .can customize crimping cap head for metacl cap or spray cap,
All filling ,crimping capping station in one chuck
1. Vacuum filling head (3 pieces), 3 times Quantitative filling. 2. Inert pump cap station( connect with send pump cap guide and vibrating plate) 3. Pre-tighten up and regulate position of pump cap head 4. Capping pump cap head 5. Load outside plastic cup head 6. Press outside plastic cup head
(Capping method will customize according to different customer caps)

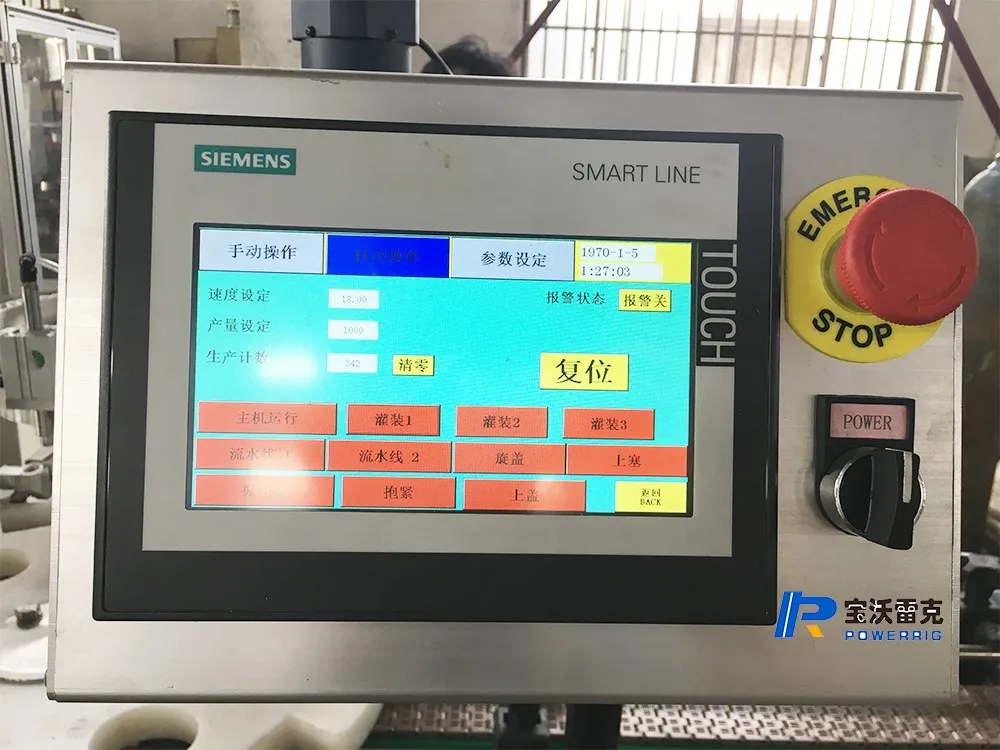

Touch sreen operation
Touch screen control panel
All operations all can finish in one touch screen Every filling nozzle's filling time, filling speed , filling volume can adjust separately. And bottle filling amounts also can adjust as need.
Machine running speed ,filling volume ,capacitu all can set up.
Perfume filling cappingMachine can totally customize according to customer's different perfume bottle and caps
According to customer's requirements, customize whole production ,included the filling machine, capping machine , labeling machine , sealing machine and bottle connection table.
If you have any questions or requirements about this Spray pocket perfume bottle filling capping and plugging machine ,please kinding send your inquiry:
If you need the whole produdction line of the Spray pocket perfume bottle filling capping and plugging machine, we also can help you match the labeling machine after filling and capping machine
The bottle Ultrasonic washing machine and the bottle feeder unscrabler table or box type bottle unscrabler used to sort of bottle and send bottle into filling capping machine automatically, need match which type labeling machine or which type
bottle feeder machine need customize according to customize different bottles.
1. Can help customer find raw material, package bottle, offer whole line serivce
2. Offer customize serivce, according to customer different tube customize machine
3. Offer Machine layout design according to customer's site size
4. Offer engineer Go abroad to install and trainning
5. Whole-lifer after sale serivce
Packing & Delivery
Packaging use export wooden case pack
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Q:How Can I get a detailed quotation of Automatic Spray pocket perfume bottle filling capping and plugging machine from you? Just send us inquiry through this web page is ok. I will reply your any question within in 6 hours.
Q:Can your company able to offer 2 years gurantee? Yes it's no problem for our company. During the warranty, if you need any spare parts, we will delivery it to you in DHL for free.
Q:Do you offer a free set of replacement parts for parts that commonly wear out quickly? All spare parts are always avaliable for delivery. Above 90% spare parts are made by ourselves. Because we have our own processing center, so we can supply at anytime.
Q:What is the whole production line?Can i connect labeling machine ,bottle feeder with filling machine in whole line? I do not know how many meters of conveyors are involved so can not determine the over-all size of the line with all of its components? We can help you match pipe and pump to transfer material form raw material tank to filling directly., so it can be totally auatomaticlly.We will design and make a layout plan according to customer's factory floor plan.
Q:What is the cost to send installation/training staff? How many staff do you need to send? Whole installation/traning process needs 2peoples. Around 10days. Client needs to provide us round-air ticket, visa fee, local transpotation, accomodation, food, and 80USD/day/person.
