Small bottle mayonaise plastic jar filling machine for chili tomato sauce filling

FOB Reference Price:Get Latest Price
$7,000.00 - $29,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
PWG-ZX-8
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Bottles, honey jar
Packaging Material:
Plastic, Wood
Type:
Filling Machine
Condition:
New
Application:
Chemical, Food, Machinery & Hardware, Medical
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V, 220v/380v(can customize )
Power:
3KW
Place of Origin:
Jiangsu, China
Brand Name:
Powerrig machinery
Dimension(L*W*H):
2440mm *1800mm*2500mm
Weight:
1000kg
Certification:
CE ISO
Machine name:
sauce filling machine
Filling volume range:
500ml-5L (use 5L piston cylinder)
Production speed:
≤2800 Bph basis on 1000ml bottle
Suitable bottle's diameter:
40mm-100mm
Work pressure:
0.55Mpa-0.65Mpa
Filling error:
≤±1
Name:
sauce filling machine
Product name:
mayonaise plastic jar filling machine
Filling material:
honey
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.Export free fumigating wooden case 2.One set in one case with film wrapped
Port
shanghai port/ ningbo port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description

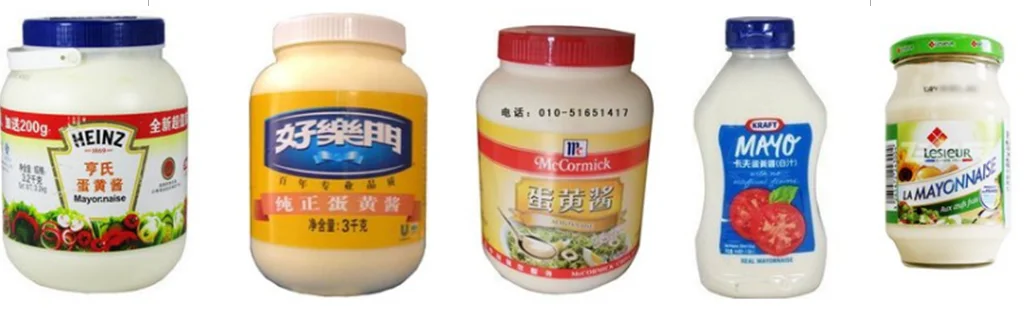

Suitable package
Equipment overview

Bottle fix device

 When bottle arrive right position begin filling , bottle fix device will fix the bottle , avoid bottle move when filling .

Material hopper

This machine keep material tank, tank all made from stain steel and machine tank connect with mirco-difference check switch, can check the liquid level in the tank automatically,can cutomize heating or mix hopper according different material.

Piston cyinder (High Precision)

Piston filling method suitable to high viscosity material filling ,filling viscous liquid filling accuracy is high,
Cylinder will separate 3 time suction material,the 3 times suction material volume, struck and time speed all can set up through touch screen directly ,piston cylinder volume can customize according to different filling volume.

Filling nozzle

Anti-drop filling nozzle, for foam material, will customize vacuum filling nozzle , have Vacuum suction function
At same time, can cutomize diving filling , from bottle bottom filling , avoid have foam when filling.

Touch screen control panel

All operations all can finish in one touch screen
Every filling nozzle's filling time, filling speed , filling volume can adjust separately
And bottle filling amounts also can adjust as need.

Filling nozzle

Anti-drop filling nozzle, for foam material, will customize vacuum filling nozzle , have Vacuum suction function
At same time, can cutomize diving filling , from bottle bottom filling , avoid have foam when filling.

 Small bottle mayonaise plastic jar filling machine for chili tomato sauce filling

PWG- Series Piston filling Machines are ideal for filling honey ,pastes, creams, lotions, gels, and products that have large particulates or chunks. The AVF Series piston fillers can be used to fill thin products as well. These fillers do not require a hopper but they are available and recommended for machines with more than 2 fill heads. These filling machines can achieve a maximum fill rate of up to 120 containers per minute. Cleaning is a simple process, no tools are required. Fill volumes are adjustable from 1/8 oz. to 1 gallon depending on the size of the product cylinder and piston..

Equipment parameter
Model /Parameter
Filling heads
    Production capacity
Volume of piston cylinder
Powerrig-ZX-2
 2 filling heads
500 Bph basis on 500ml bottle
500ml(Can customize)
Powerrig-ZX-6
      6 filling heads
  1200 Bph basis on 1L bottle
       1000ml(can customize)
Powerrig-ZX-8
      8 filling heads
  1800 Bph basis on 1L bottle
        1000ml(can customize)
Powerrig-ZX-12
    12 filling heads
  2200 Bph basis on 1L bottle
       1000ml(can customize)
Powerrig-ZX-16
    16 filling heads
  3500 Bph basis on 1L bottle
       1000ml(can customize)
Powerrig-ZX-20
     20 filling heads
  4500 Bph basis on 1L bottle
       1000ml(can customize)
Filling nozzle number will customized according to you need production speed
Filling method will customize according to your material
Filling piston cylinder volume will customize according to your MAX package volume
Equipment advantage

Mayonaise plastic jar filling machine for chili tomato sauce filling Piston cylinder

Piston cylinder control filling , filling volume accuacy and according to customer need different filling volume can customize different volume piston cylinder, piston separate 3 part suction , first part suction will be slowly, second part suction will be fast , third part suction will be slowly again, so can ensure the filling more stable and won't have foam

Mayonaise plastic jar filling machine for chili tomato sauce filling Servo motor.

Servo motor drive double screw rod movement to drive the piston cylider work
Servo motro control machine runnng , the machine will be more stable.

Mayonaise plastic jar filling machine for chili tomato sauce filling Filling nozzle

Anti-drop and dive filling nozzle. if your material have foam, also can customize vacuum filling system, can  reduce have foam when filling.

Mayonaise plastic jar filling machine for chili tomato sauce filling Servo motor

Servo motor control double screw rod work

Use TAIWAN TECO brand

Adopt servo motor to drive,
Double-ball screw rod to transmission.
Ensure piston movement stable. Filling volume stroke have high precision
So can reach high filling accuracy

Sauce filling machine Keep material hopper

Can customize material hopper ,Normally hopper will be SUS 304 material

If have specially requirements, also can customize SUS 316L material hopper

And according different material

Also can customize stir mixing hopper and heating hopper.

Sauce filling machine  Precise piston cylinder

According to customer need max filling volume to customize the volume of piston cylinder
Ensure the filling precise
At same time, the filling volume can satified customer's need,

If you have any questions or requirements about this Mayonaise plastic jar filling machine for chili tomato sauce filling,please kinding send your inquiry:
Why choose Powerrig

Customize service to customer

Powerrig Machinery Company can customize serivce,we could design whole production line ,according to customer 's different requirement and different factory site area,
And filling sealing machine also will customize basis on customer differnt bottle sample

And we offer different filling method filling machine for different material.

And we also could match the honey mixing making machine, capping machine , labeling machine in whole poducion line according to customer's needs

Filling machine need how many filling nozzles need customize according to customer need production capacity.


Concentration

The customer's request is our production standard,exprot machine to More than 50 countries.


Professional

Our online troubleshooting teams ,Production team,technology team prwill identify your troubles then repair them. They are available for 24hours/7day.

Engineering and marketing step by step

We continue to innovate by listening and responding to our customers' needs. With an emphasis on quality parts and engineering

Packing & Delivery
Packaging
Size
2900 (L) * 1200(W) * 2500 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ

 Why choose Powerrig?


Fast lead times and hands on demonstrations.
Powerrig's practiced manufacturing processes, allow for some of the fastest lead times in the industry even on fully automatic and rotary systems.
Powerrig is has two manufacturing facilities and has multiple showrooms. Customers are encouraged to come and visit us to learn about the company and our machines. Each showroom has working machines to provide live demonstrations of Powerrig's machinery.

• Are the machines upgradeable and adjustable? Yes, we offer this service
• Which features are standard and what comes as options? Except filling machine, also can match filling capping machine
• Are the machines easy to maintain and clean?   Yes , machine have automatic clean system
• Are they energy efficient?  Yes, and machine can customize different country voltage


Expert service, setup, and training.
Maintenance, training, and installation are all services that Powerrig offers customers. Proper installation and setup are key in getting new equipment working as quickly and efficiently as possible.Powerrig understands this, and is why all Powerrig machines leave the factory calibrated for each customer's individual needs. Powerrig's technicians also train our customers on how to maximize performance and reduce machine downtime.
Designing machines that grow along with the customer.
One of the key features of Powerrig packaging lines are that they are designed to accommodate a range of different projects. Powerrig knows that production needs change as time goes on and our lines are designed to grow with those needs. Each machine is engineered to handle a number of jobs and switch between those different jobs with little to no downtime. This makes Powerrig machines a far better investment when comparied to the limited capabilities of our competitor's models.
Offering big name parts and features for little to no extra cost.
Powerrig machines come with far more standard features and standardized parts than any competitor. Features like, touch screen controls, job memory, and name brand components from companies like Panasonic, Allen Bradley, and Parker Hannifin are just a few examples. Powerrig provides technical documentation, printed instruction manuals, and exploded view diagrams to our customers. Powerrig has spent years designing and manufacturing equipment and understands what our customers want and need.

If you have any questions or requirements about this Mayonaise plastic jar filling machine for chili tomato sauce filling ,please kinding send your inquiry:
