glue filling and sealing machine

FOB Reference Price:Get Latest Price
$18,500.00 - $22,000.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 Negotiable
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Overseas service center available
Application:
Chemical
Packaging Material:
Plastic
Type:
Other
Packaging Type:
Bottles
Automatic Grade:
Semi-Automatic
Driven Type:
Electric
Voltage:
220V/380V
Power:
2.5
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
POWERRIG
Weight:
300kg
Dimension(L*W*H):
1200*800*1500mm
Certification:
CE
Name:
glue filling and sealing machine
Function:
Filling Sealing
Usage:
Packing aluminum tube
Material:
SUS304
Filling material:
Liquid material
Filling range:
5-75ml/75-150ml/150ml-300ml
Filling nozzle:
1 nozzle
Filling way:
piston filling
Package:
Wooden box
Warranty:
Life Long Service
Supply Ability
Supply Ability:
50 Set/Sets per Month glue filling and sealing machine
Packaging & Delivery
Packaging Details
glue filling and sealing machine is packed by standard export wooden box
Port
Shanghai /Ningbo
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Product Description

glue filling and sealing machine


Product Introduction

This FWJ-L30 cosmetic tube filling and sealing machine is a 1 filling head filling machine with a heating gun. It has total 12 positions for filling and sealing. And materials such as paste, adhesives, AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste etc., are all applicable.

This production machine is customized,and we will make a suitable plan for you according to your detailed request.
Application

Main parameter

Weight
400Kg
Dimension
1100*700*1800mm
Power
220V/50Hz
Motor
1.5Kw
Filling Quantity
5-75ml/50-200ml/100-300ml
Capacity
30-70tubes/min liquid
Suitable Filling Material
Aluminum tube
Maximum Tube Dia.
60 mm
Date Printed
1-2 rows(numbers & letters)
Additional Function
Piston filling
Some other mode for reference
Mode
Filling range
Capacity
Remark
FWJ -L30
5-75ml/50-200ml/100-300ml
20-30 tubes per minute


All machine voltage according to customer requirements to make
FWJ -L45
5-75ml/50-200ml/100-300ml
30-40 tubes per minute
FWJ-L60
5-75ml/50-200ml/100-300ml
40-60 tubes per minute

Three type machine for reference

Full automatic aluminum tube filling sealing machine

Semi automatic plastic tube filling sealing machine

Full automatic plastic tube filling sealing machine

Main Features

* Small and saving space
* Efficient and precise
* PLC control easy to operate and flexible
* Stainless steel body, neat and beautiful
* No tube no filling

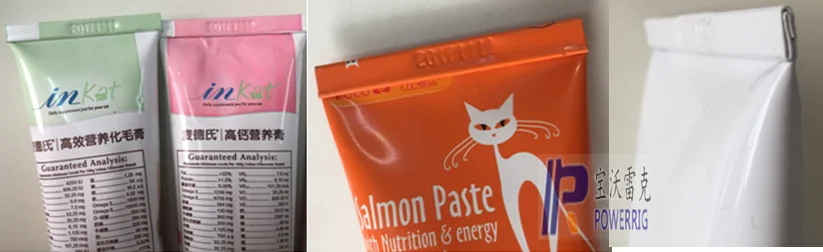

Sealing effect

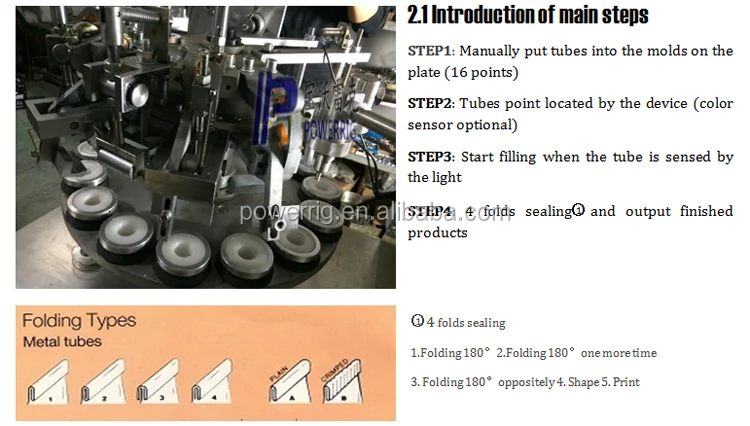

Working steps

Detailed Images

Machine Parts

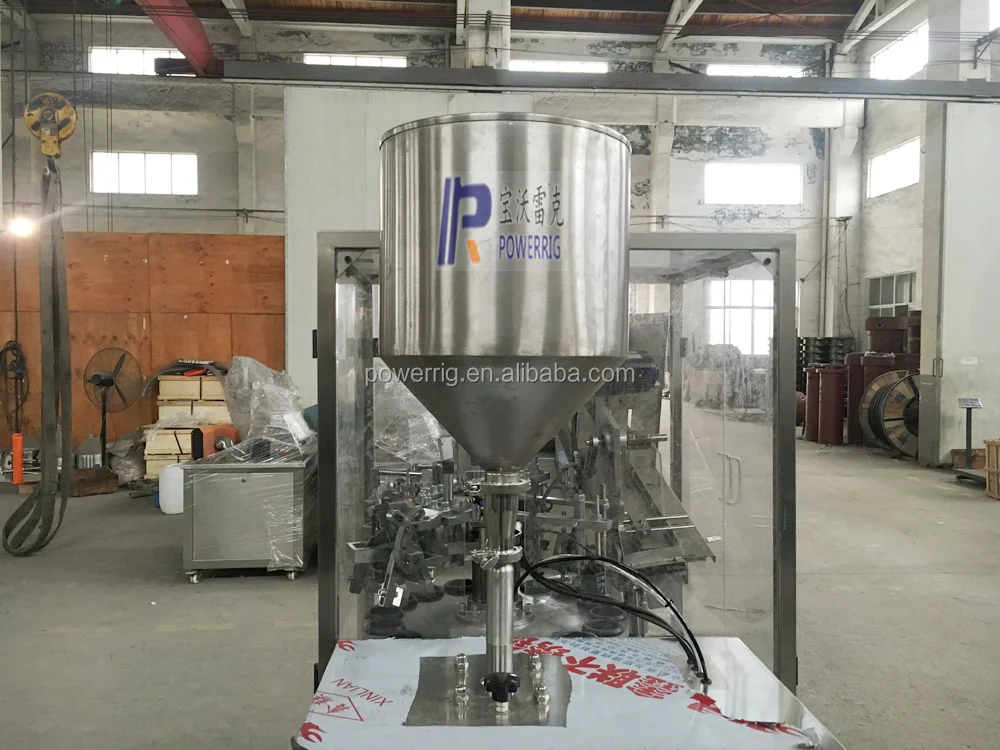

Name: Material hopper

Brand: Powerrig

Original: China

35L material hopper , according to material viscosity could be heating and stir hopper .

Machine Parts

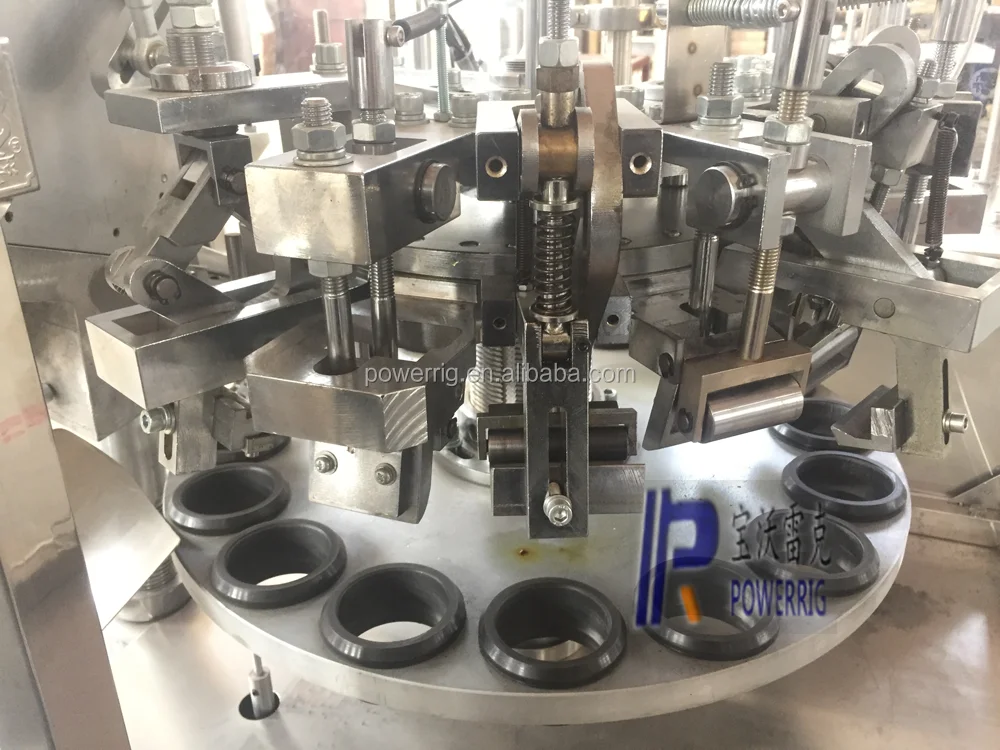

Name:  Working disk
Brand: Powerrig
Original: China

 According to customer requirements , could be two or three fold .




Machine Parts

Name: Control part
Brand:
Schneider
Original: Germany
 Control filling volume , and the running speed . It's easy operate .

Machine Parts

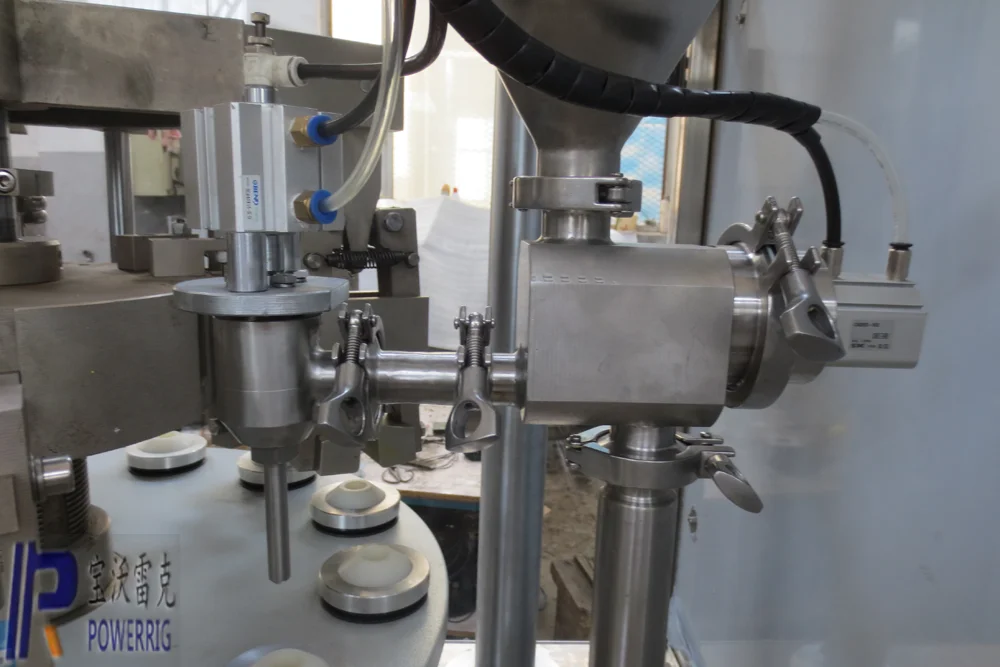

Name: Filling turn valve
Brand: POWERRIG
Original: China
Different volume filling precision can reach 99% . Filling nozzle adopt 316 stainless steel material .

 Folding mechanical hand according to customer requirements could be two folded or three folded .
 Production process
Certifications
Our machine configuration brand
Our Service

Why After Sales Service ?

After sales service plays an important role in customer satisfaction and customer retention. It generates loyal customers.
Customers start believing in the brand and get associated with the organization for a longer duration. They speak good about the organization and its products.
A satisfied and happy customer brings more individuals and eventually more revenues for the organization.
After sales service plays a pivotal role in strengthening the bond between the organization and customers.

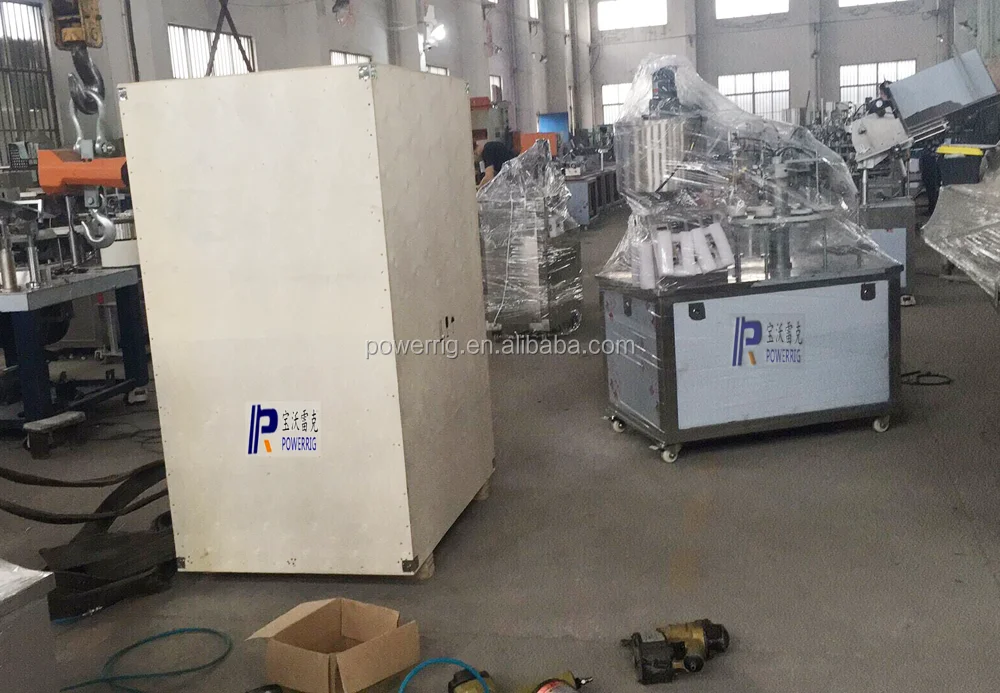

Packing & Delivery

Before Order Confirmation:
Our factory team does all the prepare work to make sure our equipment can meet your needs by:


1. Confirm customer packing requirements, such as packing material , filling volume , production capacity requirements ect.
2.Offer drawing, machine model details and formula suggestion for confirm.
3.Give information like quotation ,production time ,delivery time,etc.
4.Design packaging sulotions ,based on clients' requirements.

During Order Production
Our factory has full-time merchandiser who will update all our clients' order condition from our producing line each day,then our salesman will keep clients updated of the production each week by E-mail,Phone call ,photos or Video.

After Order Finished and service
1.We will keep touch with our clients feedback the order finish and send video of customer packing material and pictures .After customer confirm then pay the balance .
2.Our machine have 1 year guarantee that any part broken within one year , we will send you by free . And we do lifetime after sale service , any time you have problem you can contact us by email , whatsapp. skype etc. We will reply you within 12hours. And tell you the solutions .

Our Cooperate Brand

This production machine is customized,and we will make a suitable plan for you according to your detailed request.More informations, please feel free contact :

Tell&Whatsapp:+86 18257104541

Skype: Mic-Yilia

QQ: 985465791

Wechat: lyh1308953921
