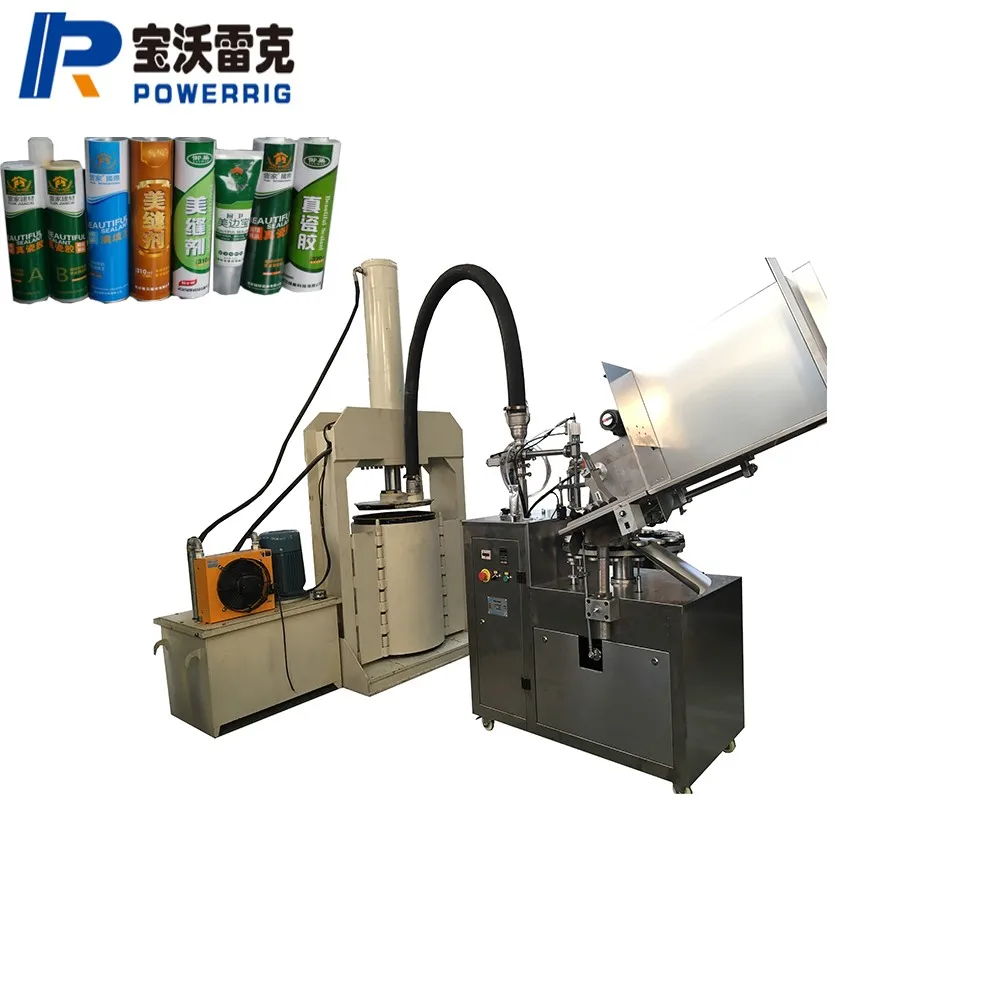

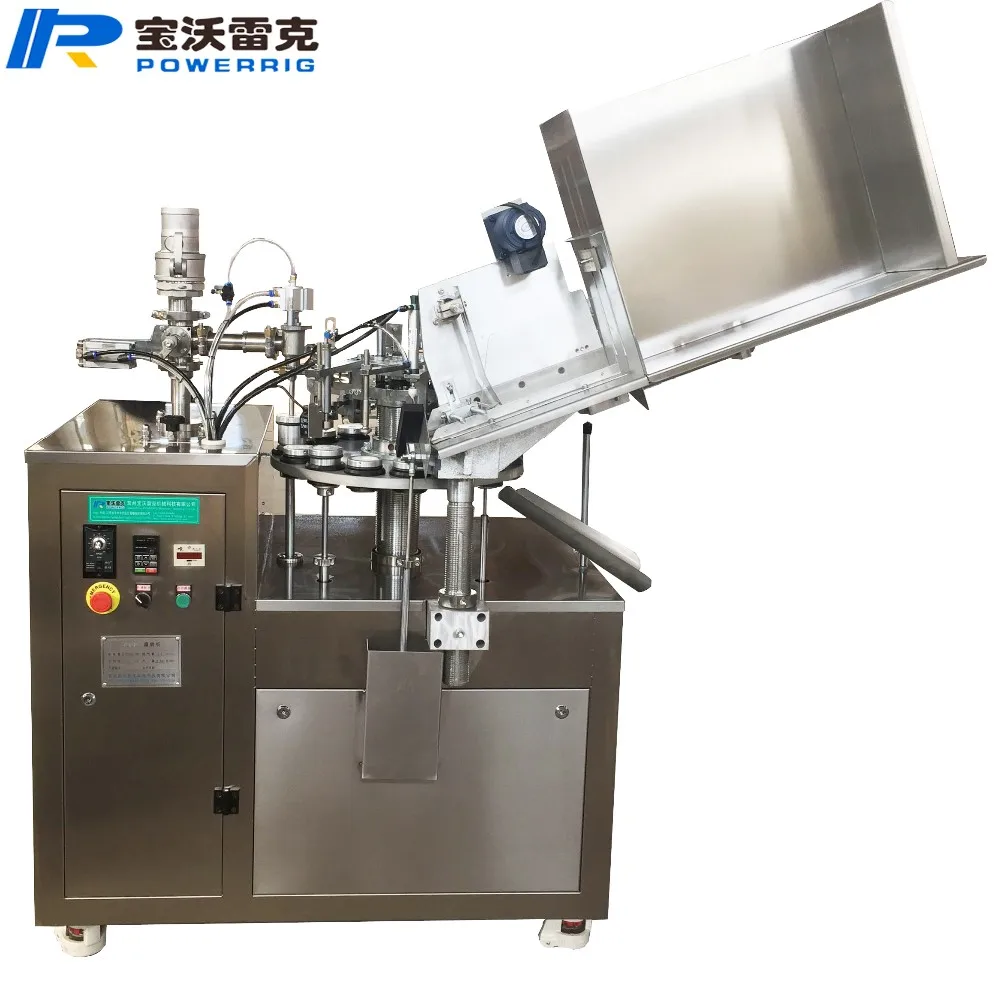

Automatic 300ml cartridge silicone gel sealant aluminum tube filling sealing machine

FOB Reference Price:Get Latest Price
$15,000.00 - $29,000.00 / Sets | 20 Set/Sets (Min. Order)
Power:
1.5Kw
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year, 12 months
Packaging Type:
silicone sealant tube
Packaging Material:
Metal, Plastic
Type:
Filling Machine
Condition:
New
Application:
Chemical, Medical, silicone sealant Adhesive
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/110V/380V/440V
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Powerrig
Dimension(L*W*H):
1950*800*1850mm
Weight:
500kg
Certification:
CE ISO
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Name:
automatic cartridge filling machine
Product:
silicone sealant tube filling and sealing machine
Filling Quantity:
3-200ml
Capacity:
30-40 for silicone sealant
Suitable:
plastic tube aluminum tube
Maximum Tube Dia:
customized
Filling material:
silicone sealant
Function:
filling adhesive silicone sealant material
Material:
SUS 316/ SUS 304
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.Export free fumigating wooden case 2.One set in one case with film wrapped
Port
shanghai/ningbo poart
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Suitable package
Product Descrption
Paremeter of silicone sealant gel filling sealing machine
Filling range
10-30ml/30-120ml/100-200ml filling volume can customize
Power
1.5Kw
Suitable Filling Material
Aluminum tube
Hard cartridge
Capacity
15-30 tube per minute
(Match hydraulic press tank use)
Power
110v/220V/380V can customize

Automatic 300ml cartridge silicone gel sealant aluminum tube filling sealing machine

Working principle:
Material pressing machine press silicon to the filling machine
The tube is pushing to the filling nozzle, filling from buttom of tube, after filling material blow for cut material.
Adpots turn valves, speed at 30-35 piece per min. Re-design filling parts.

Main feature:

1. Specially design turn valve ,cam control vertical up filling system ,for silicone sealant this type high viscosity material.

2. For silicone sealant gel this type glue, design Broken wire function in filling nozzle , avoid material Leakage or residue on the filling nozzle effect the sealing.

3. Silicone sealant is a specially material can't connect with air, so we add blow nitrogen device and spray silicone oil device in the filling nozzle part , avoid material connect with air when filling and sealing.

4. Silicone sealant have high vicosity , can't flow. so when transfer it into filling machine's filling system,must need match hydraulic press drum ,then use bear High pressure pipeline connect with filling machine's filling system ,to loading material into filling machine.

Detailed Images
Filling nozzle

Filling nozzle will insert into the tube bottom

Form bottom filling and tube will lifting and down by cam control.

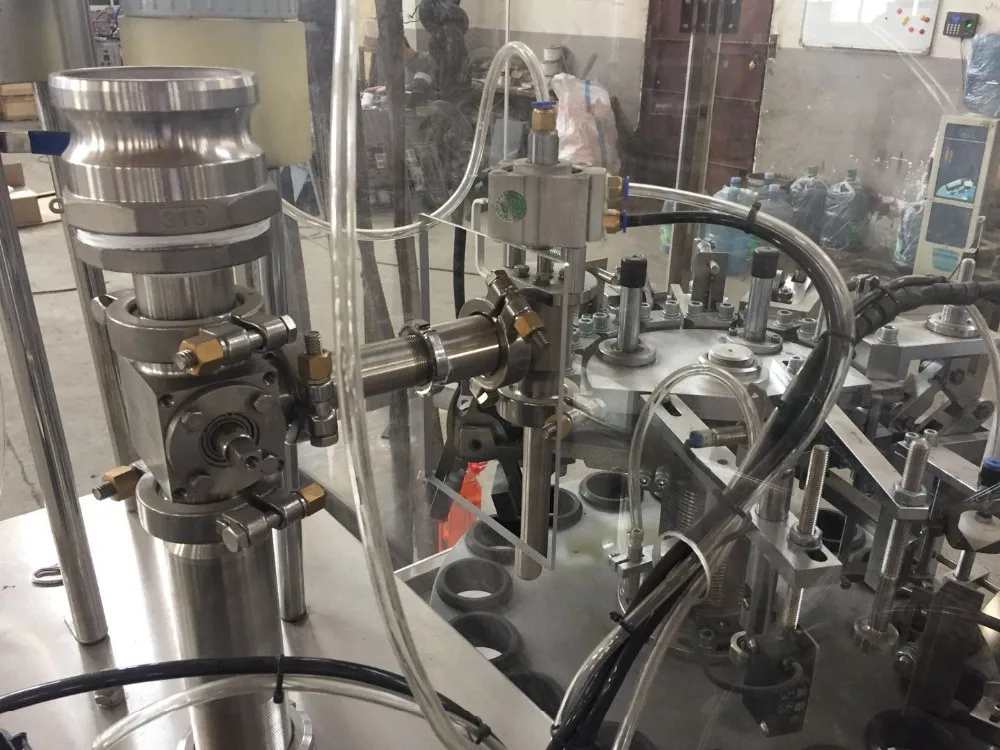

Turn valve and piston cylinder

Specially design turn valve ,cam control vertical up filling system ,for silicone sealant this type high viscosity material.

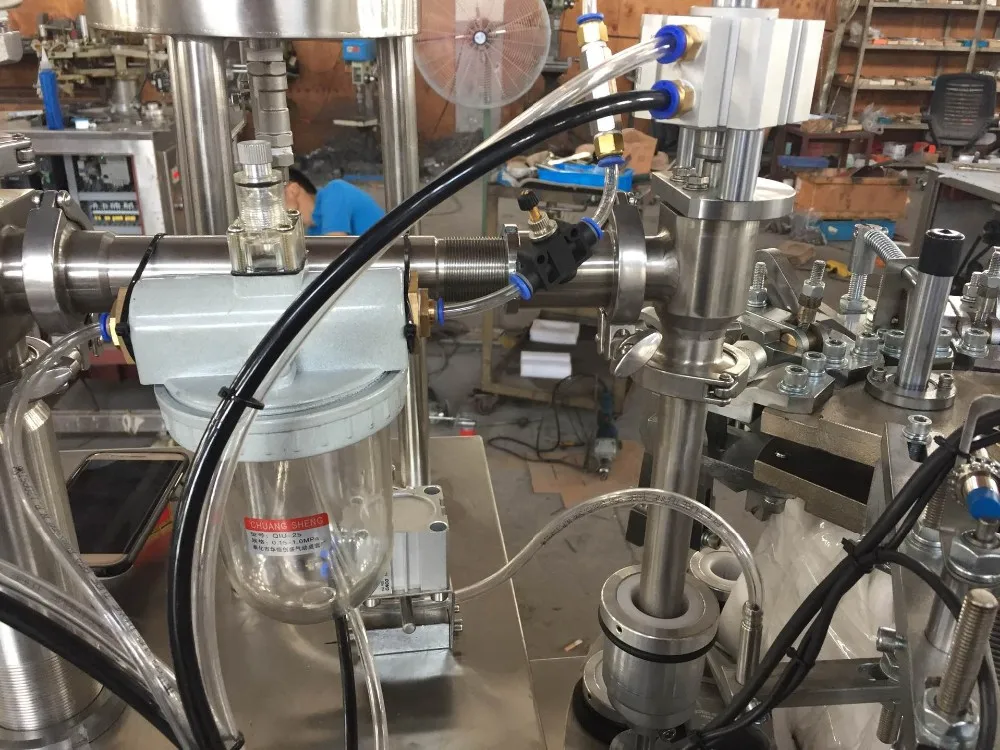

Blow nitrogen device

Silicone sealant is a specially material can't connect with air, so we add blow nitrogen device and spray silicone oil device in the filling nozzle part , avoid material connect with air when filling and sealing.

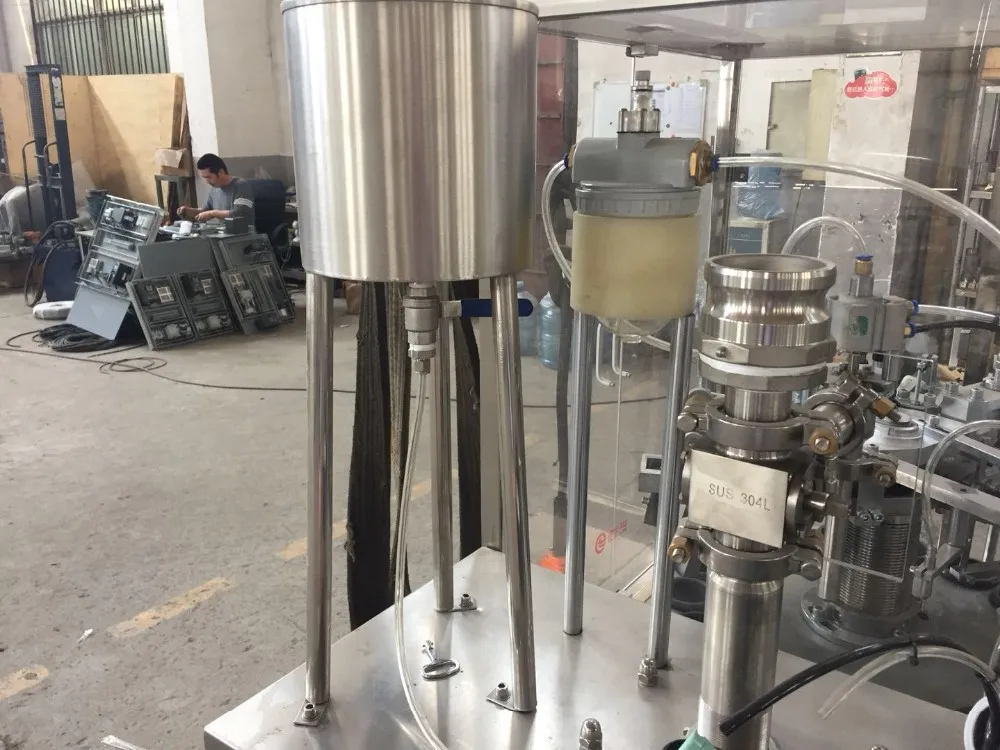

Spray silicone oil device

Silicone sealant is a specially material can't connect with air, so we add blow nitrogen device and spray silicone oil device in the filling nozzle part , avoid material connect with air when filling and sealing.Avoid silicone Solidification.

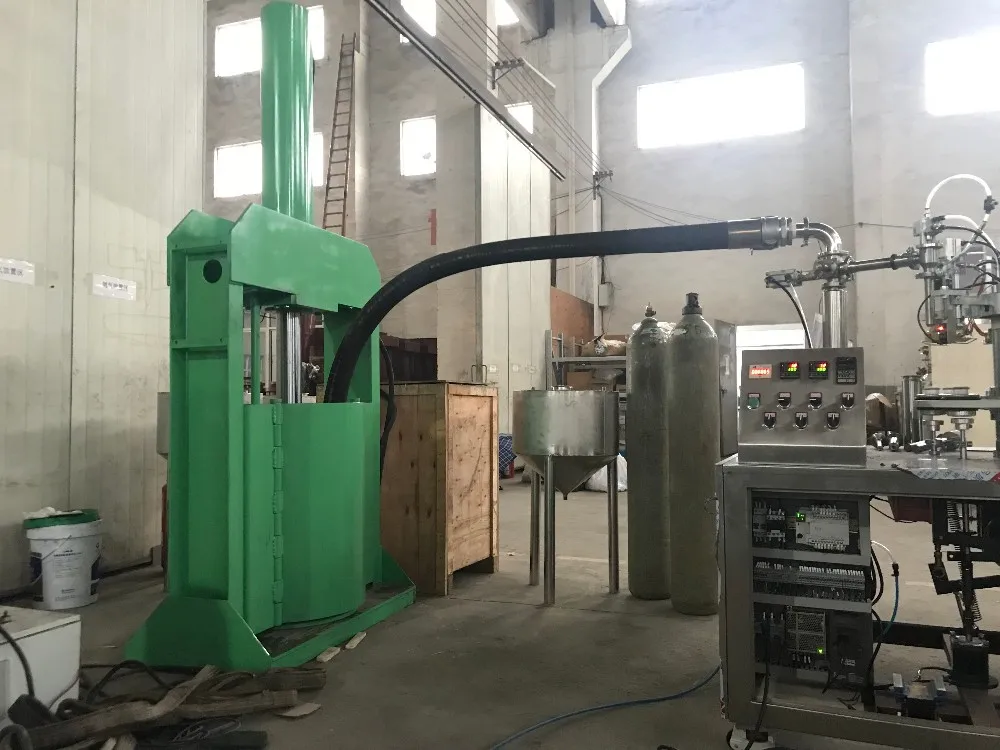

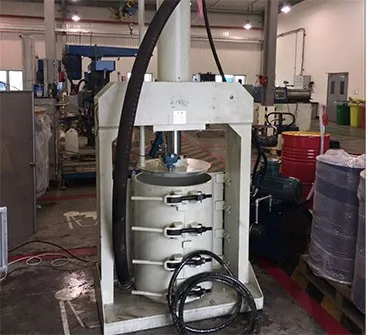

Hydraulic press drum

Used to loading silicone sealant material into filling machine's filling system,silicone sealant have high vicosity , can't flow. so when transfer it into filling machine's filling system,must need match hydraulic press drum ,then use bear High pressure pipeline connect with filling machine's filling system ,to loading material into filling machine.

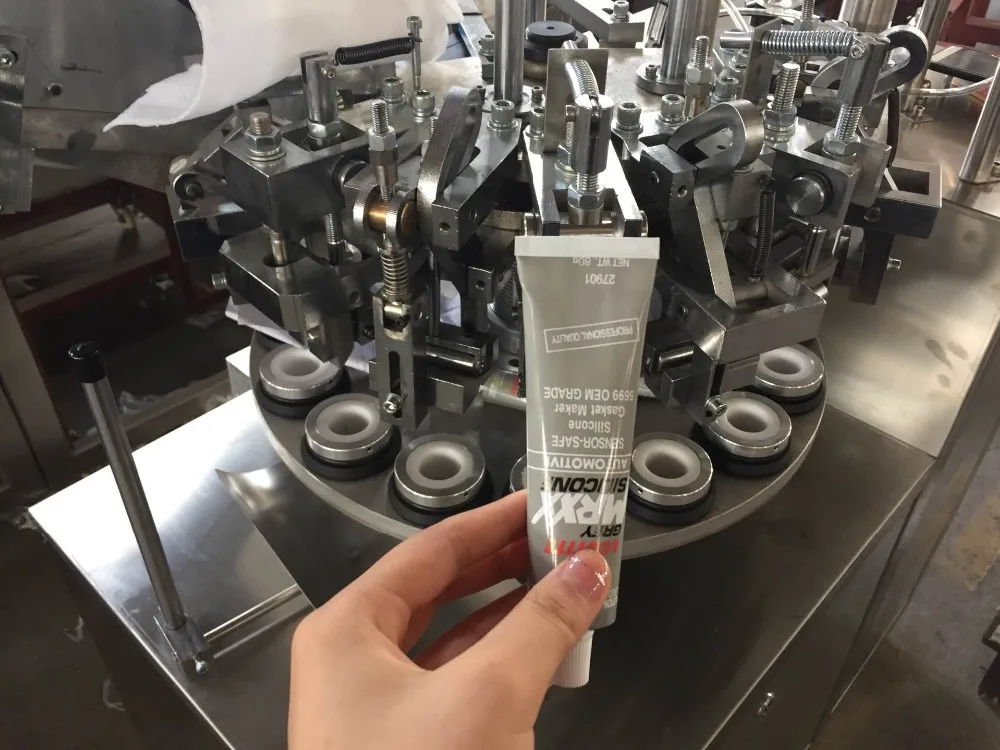

Aluminum tube sealing chuck and sealing effect

Aluminum tube through fold -- flat-- fold, then finish sealing

3-folding or 4-folding all can customize according to different need.

If you have any questions or requirements about this Automatic 300ml cartridge silicone gel sealant aluminum tube filling sealing machine ,please kinding send your inquiry:
Our Service

If you need the whole produdction line of the Automatic 300ml cartridge silicone gel sealant aluminim tube filling sealing machine , we also can help you match the hydraulic press tanl to loading silicone sealant and silicone sealant mixing machine and so on .


1. Can help customer find raw material, package bottle, offer whole line serivce
2. Offer customize serivce, according to customer different tube customize machine
3. Offer Machine layout design according to customer's site size
4. Offer engineer Go abroad to install and trainning
5. Whole-lifer after sale serivce
Packing & Delivery
Packaging
Size
1800*1000*1500mm
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our factory
FAQ

Q:How Can I get a detailed quotation of Automatic 300ml cartridge silicone gel sealant aluminum tube filling sealing machine from you?
Just send us inquiry through this web page is ok. I will reply your any question within in 6 hours.

Q:Can your company able to offer 2 years gurantee?
Yes it's no problem for our company. During the warranty, if you need any spare parts, we will delivery it to you in DHL for free.

Q:Do you offer a free set of replacement parts for parts that commonly wear out quickly?
All spare parts are always avaliable for delivery. Above 90% spare parts are made by ourselves. Because we have our own processing center, so we can supply at anytime


Q:What is the whole production line?Can i connect labeling machine ,bottle feeder with filling machine in whole line?
I do not know how many meters of conveyors are involved so can not determine the over-all size of the line with all of its components.
We can help you match pipe and pump to transfer material form raw material tank to filling directly., so it can be totally auatomaticlly.We will design and make a layout plan according to customer's factory floor plan.

Q:What is the cost to send installation/training staff? How many staff do you need to send?
Whole installation/traning process needs 2peoples. Around 10days. Client needs to provide us round-air ticket, visa fee, local transpotation, accomodation, food, and 80USD/day/person.
