Automatic 10ml 30ml vial round essential oil e liquid bottle labeling machine

FOB Reference Price:Get Latest Price
$5,000.00 - $7,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
DT60
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Bottles
Packaging Material:
Wood
Type:
Labeling Machine
Condition:
New
Application:
Food, Medical, Chemical
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
110v/220v/380v
Power:
1200W
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Powerrig
Dimension(L*W*H):
2600(L) 1250 (W) 1300 (H) mm
Weight:
360
Certification:
CE
Driving Mode:
Servo motor
Yield(pcs/min):
30-180 (depends on bottle and label size)
Operating direction:
Left or Right
Conveyor Speed(m/min):
≤40
Labeling Accuracy:
±1.0 mm
Inner diameter of label roll:
76 mm
Outer diameter of label roll:
350 mm(max)
Suitable label size:
Width 15-150 mm length 15-250 mm(Standard machine)
name:
round bottle labeling machine
Product name:
e liquid bottle labeling machine
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.Export free fumigating wooden case 2.One set in one case with film wrapped
Port
shanghai/ningbo port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Suitable package
Product description
Parameter of round bottle labeling machine
Yield(pcs/min)
30-180 (depends on bottle and label size)
Labeling Accuracy
±1.0 mm
Inner diameter of label roll
76 mm
Outer diameter of label roll
350 mm(max)
Suitable label size
Width 15-150 mm length 15-250 mm(Standard machine)

Automatic 10ml 30ml vial round essential oil e liquid bottle labeling machine

1. The Scope of Application

Model DT60 round bottle labeling machine , suit for differnet size round objects in food, medicine, daily chemical and other light industries.
2. Equipment composition
Electrical cabinet,Conveying mechanism,Separate bottle device,Roll label device,Brush label device,1# labeling engine,Operation system and control system ;
3. Equipment function characteristics
1) Control system: Use SIEMENS brand PLC control system, with high stable operation and extremely low failure rate.
2) Operation system: SIEMENS touch screen, directly visual interface easy operation, also rich with help function and fault display function.
3) Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don't have much higher requirement for worker.
4) Send label system: Use SIEMENS high-power servo control system, stable with high speed.
5) Parameter save:can save 10 groups labeling parameters, when change bottles don't need reset parameters, just adjust machine part is ok.
6) Alarm function: Such as label spill, label broken or other malfunction during machine working all will alarm and stop working.
7) Machine Material: Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.
8) Labeling way : Use the servo send label system to send label on product surface
9) Low voltage circuit all use the German Schneider brand.
Detailed Images

Date code printer

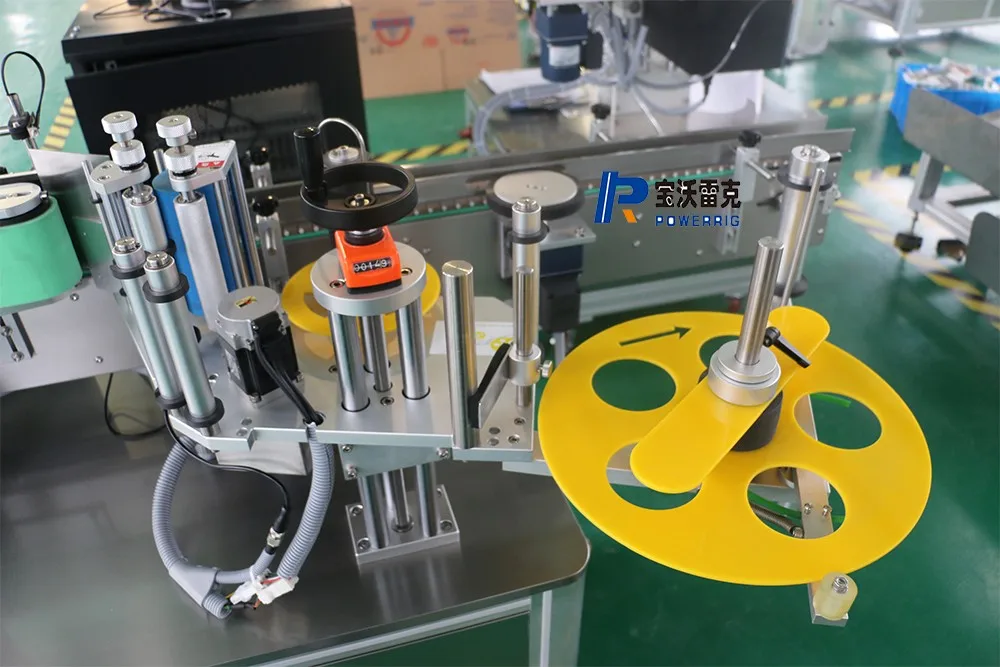

Lable engine

Separated bottle device


Roll label bottle device


Lable engine



Round bottle feeder table



Packing & Delivery
Packaging
Size
1230 (L) * 456 (W) * 900 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
