High quality bleach filling capping machine toilet soap filling capping machine line

FOB Reference Price:Get Latest Price
$12,000.00 - $28,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
PWG-ZX-12
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Bottles, Cans, toilet soap filling capping machine
Packaging Material:
Glass, Metal, Plastic, bleach filling capping machine
Type:
Filling Machine
Condition:
New
Application:
Chemical, toilet soap filling capping machine line
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V
Power:
2.5KW
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
POWER
Dimension(L*W*H):
2400*1500*2500mm
Weight:
500kg
Certification:
CE ISO
Name:
bleach filling capping machine
Function:
Automatic filling material
Material:
Stainless Steel 304
Filling material:
Flowing Liquid
Filling nozzle:
12 nozzles
Filling range:
1-5L
Production capacity:
1500-3000 BPH
Filling way:
Gravity-flowing
After sale service:
Lifetime after sale serive
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Set/Sets per Month bleach filling capping machine
Packaging & Delivery
Packaging Details
bleach filling capping machine is packed by standard export wooden box
Port
Shanghai/Ningbo
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

High quality bleach filling capping machine toilet soap filling capping machine line

Application:

Product Introduction:

The Time Gravity Filling Machine is often used for filling free flowing, non foaming, non flammable chemicals because of lower relative capital cost and flexibility of container size and geometry. These machines can be used to efficiently fill both containers with smaller openings as well as large bulk containers with large openings. However, if the product is foamy, the time gravity filling machine may not be as efficient as the overflow filling machine for filling containers especially with small openings. Although time gravity filling machines can be configured with subsurface and "bottom up fill" filling nozzles to control foam in smaller containers, this configuration does reduce throughput. On large containers filling either foamy or non foamy chemical products, the time gravity filling machine with subsurface filling capability is a very practical machine to use since the overall throughput requirement on bulk containers is usually low. Time Gravity Filling Machines are also preferred where it is not practical to pressurize or recirculate dangerous chemical products like corrosives or explosives. For more information about this, see the section of hazardous location and corrosive filling machines.


Application :

The materil with lower viscosity , such as water , toliet cleaner,  diswashing liquid , liquid soap , detergent ect.

This production line is customized,and we will make a suitable plan for you according to your detailed request.


Main Features

1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Running in a high automatization and intellectualization,no pollution
4) Self bottle loaded
5) Stainless steel body, neat and beautiful


Some other model for reference :

Model
Filling range
capacity
Remark
PWG-ZX-6
50-200ml/ 100-500ml/
500-1000ml /1000-5000ml
1000-1500BPH

All machine voltage according to customer requirements to make
PWG-ZX-8
50-200ml/ 100-500ml/
500-1000ml /1000-5000ml
1500-2500BPH
PWG-ZX-10
50-200ml/ 100-500ml/
500-1000ml /1000-5000ml
2500-3000 BPH
PWG-ZX-12
50-200ml/ 100-500ml/
500-1000ml /1000-5000ml
3000-3500BPH
All machine filling nozzle quantity could be custom .
PWG-ZX-16
50-200ml/ 100-500ml/
500-1000ml /1000-5000ml
3500-4000BPH
PWG-ZX-20
50-200ml/ 100-500ml/
500-1000ml /1000-5000ml
4000-5000 BPH

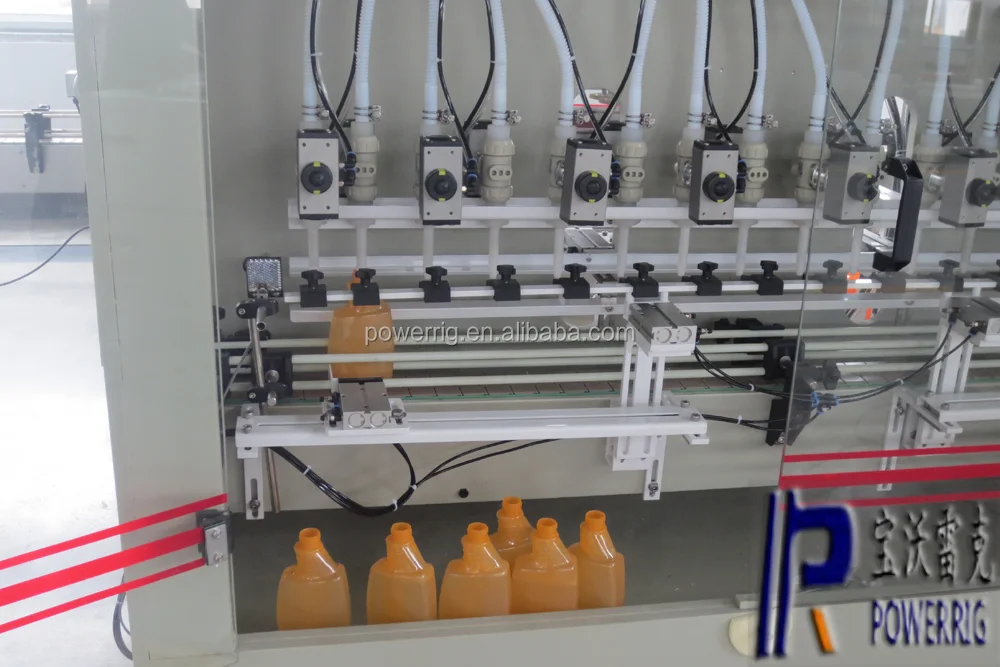

Detailed Images

Machine Parts

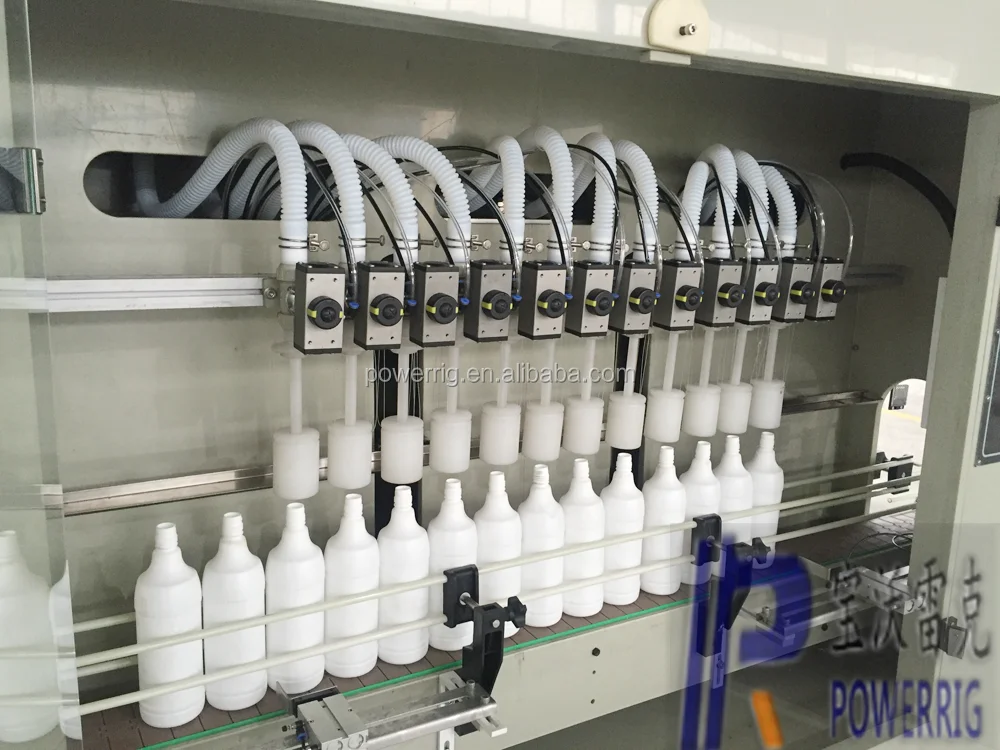

Name:  Filling nozzles

Brand: Powerrig

Original: China

Each filling nozzle add bottle fix device on the filling nozzle part, ensure when filling material, the bottle is fix in a right position, the filling nozzle use PP material customize, anti-corrosive and anti-drop. Length can customize according to different bottle.


Machine Parts

Name: Filling valve
Brand: VAA

Original: USA

Adopt VAA filling valve with high filling precision and no leak and corrosion .

Machine Parts

Name: Filling pipe
Brand: Powerrig
Original: China
Long Life Anti Corrosive filling pipe to prevent corrosive liquid to break the pipe .

Machine Parts

Name: Power head
Brand: Powerrig
Original: China
Power head is mainly for the entire pipeline transmission power for the whole line .


Related Products

Capping machine

 Labeling machine

Some cooperation brand
Certifications

Our machine configuration brand

Our Service

Lifetime after sale service

Packing & Delivery

 Use standard export wooden box packing

Before Order Confirmation:
Our factory team does all the prepare work to make sure our equipment can meet your needs by:
1. Confirm customer packing requirements, such as packing material , filling volume , production capacity requirements ect.
2.Offer drawing, machine model details and formula suggestion for confirm.
3.Give information like quotation ,production time ,delivery time,etc.
4.Design packaging sulotions ,based on clients' requirements.

 During Order Production
Our factory has full-time merchandiser who will update all our clients' order condition from our producing line each day,then our salesman will keep clients updated of the production each week by E-mail,Phone call ,photos or Video.
After Order Finished and service
1.We will keep touch with our clients feedback the order finish and send video of customer packing material and pictures .After customer confirm then pay the balance .
2.Our machine have 1 year guarantee that any part broken within one year , we will send you by free . And we do lifetime after sale service , any time you have problem you can contact us by email , whatsapp. skype etc. We will reply you within 12hours. And tell you the solutions .

This production line is customized,and we will make a suitable plan for you according to your detailed request.More informations, please feel free contact :
