Automatic volumetric 8 nozzle cleaning liquid laundry dishwashing detergent bottle filling capping machine for liquid detergent

FOB Reference Price:Get Latest Price
$12,000.00 - $37,000.00 / Sets | 1 Set/Sets (Min. Order)
Power:
3kw
Model Number:
ZF8
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 30 25 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year, One Year
Packaging Type:
Bottles
Packaging Material:
Plastic, Glass
Type:
Filling Machine
Condition:
New
Application:
Food, Medical, Chemical
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
110V/220V/380V
Place of Origin:
Jiangsu, China
Brand Name:
powerrig
Dimension(L*W*H):
2440* 1800*2500
Weight:
1000kg
Certification:
CE
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Filling material:
liquid laundry detergent
Product name:
automatic liquid laundry detergent filling machine
Name:
automatic liquid laundry detergent filling machine
Material:
SUS 316/304
Filling error:
≤±1%
Production speed:
2800 Bph basis on 1000ml bottle
Work pressure:
0.55Mpa-0.65Mpa
Suitable bottle's diameter:
40mm-100mm
Filling volume range:
500ml-5L (can customize)
Supply Ability
Supply Ability:
15 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.Export free fumigating wooden case 2.One set in one case with film wrapped
Port
shanghai/ningbo port
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 30 25 To be negotiated
Trade insurance
Suitable package
Product Description

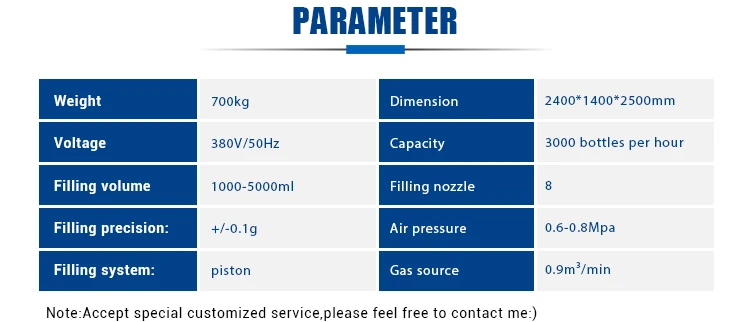

Parameter of liquid laundry detergent bottle filling capping machine
Filling method
Piston filling (Suitable high viscosity liquid, paste , shampoo, liquid detergent ,liquid sopa and suace, jam and so on)
Gravity flow filling (Suitable to low viscosity liquid, bleach,Toilet cleaner and so on)
Filling speed
2000 bottles per hour basis on 500m bottle
(With 1L piston cylinder)
Filling error
+/- 1%
Voltage
110v/220v/380v  can customize according different countires customer
Filling drive
Servo motor control filling

Automatic volumetric 8 nozzle cleaning liquid laundry dishwashing detergent bottle filling capping machine for liquid detergent

This high viscosity viscous liquid volumetric filling sealing and capping machine piston filling machine ,widely used in Daily chemical industry, Cosmetic, food industry ,high viscosity materials, shampoo, hair condition cream, hand cream dish washing liquid and so on, the effect is obvious.  Filling method can customize according to customer's different material , if customer's material is low viscosity material , suggest use gravity flow filling machine,  if customer's material is high viscosity material , suggest use piston filling machine

If customer's material have many foam, also can customize vacuum filling and diving filling ,

If customer's haven't fluidity, easy to precipitation , can customize mixer and heating hopper above filling machine.


Function introduce

1. Adopt PLC programmable control system with touch screen interface.
2. Automatic bottle feeding, automatic filling, automatic bottle.
3. Adopt servo motor drive, double screw-rod drive, Control the movement of the piston rod to ensure the stability of the filling.
4. Adopt double-ball screw rod filling the filling nozzle dive
5. It can be used with capping machine, labeling machine supporting the formation of the production line
6. It combines optical, mechanical, electrical, gas in one. It is easy to operate a filling machine.
7. Having a stable and reliable operation, high production efficiency, strong adaptability.

8. Easy to clean filling system,  lengthen the piston screw rod, PLC set up auto clean system , just need press one button in the touch screen, machine will begin clean model automatically.

Detailed Images

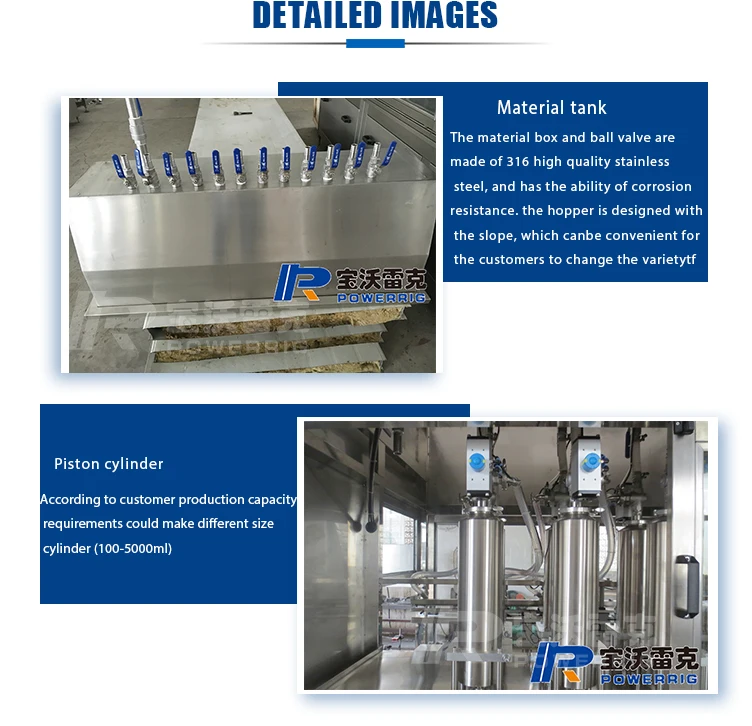

Piston cyinder (High Precision)
Piston filling method suitable to high viscosity material filling ,filling viscous liquid filling accuracy is high,
Cylinder will separate 3 time suction material,the 3 times suction material volume, struck and time speed all can set up through touch screen directly ,piston cylinder volume can customize according to different filling volume.

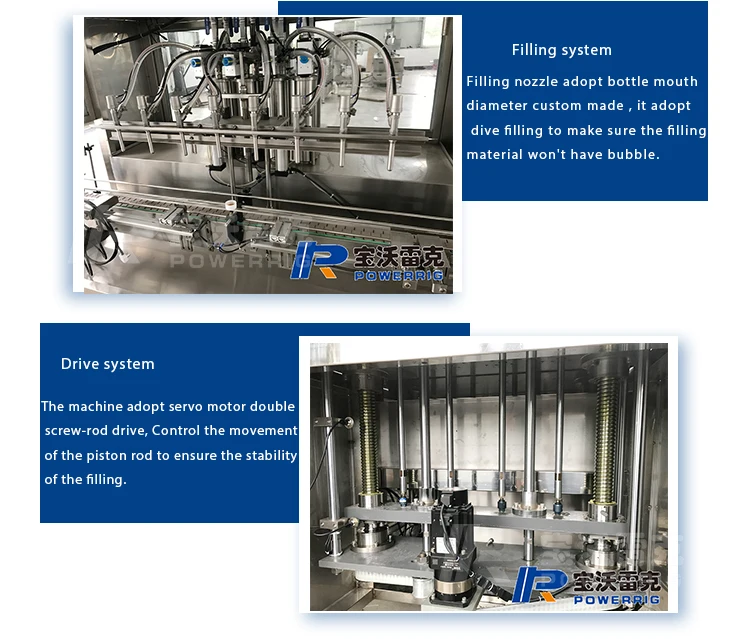

Filling nozzle

Anti-drop filling nozzle, for foam material, will customize vacuum filling nozzle , have Vacuum suction function

At same time, can cutomize diving filling , from bottle bottom filling , avoid have foam when filling.

Bottle fix device

When bottle arrive right position begin filling , bottle fix device will fix the bottle , avoid bottle move when filling .

Ball valve

The ball valve is used to control the filling open and close, when the push material volume reach filling volume, the ball will open automatically and begin filling.

Servo motor

Adopt servo motor to drive,
Double-ball screw rod to transmission.
Ensure piston movement stable. Filling volume stroke have high precision,So can reach high filling accuracy

Material hopper

This machine keep material tank, tank all made from stain steel and machine tank connect with mirco-difference check switch, can check the liquid level in the tank automatically,can cutomize heating or mix hopper according different material.

Touch screen control panel

All operations all can finish in one touch screen

Every filling nozzle's filling time, filling speed , filling volume can adjust separately

And bottle filling amounts also can adjust as need.

Capping machine

If customer need whole production line, also can match capping machine ,labeling machine and packing machine to composition whole production line.

Whole production line custimize

According to customer's requirements, customize whole production ,included the filling machine, capping machine , labeling machine , sealing machine and bottle connection table.

If you have any questions or requirements about this Automatic volumetric 8 nozzle cleaning liquid laundry dishwashing detergent bottle filling capping machine for liquid detergent ,please kinding send your inquiry:
Click here send your requirements

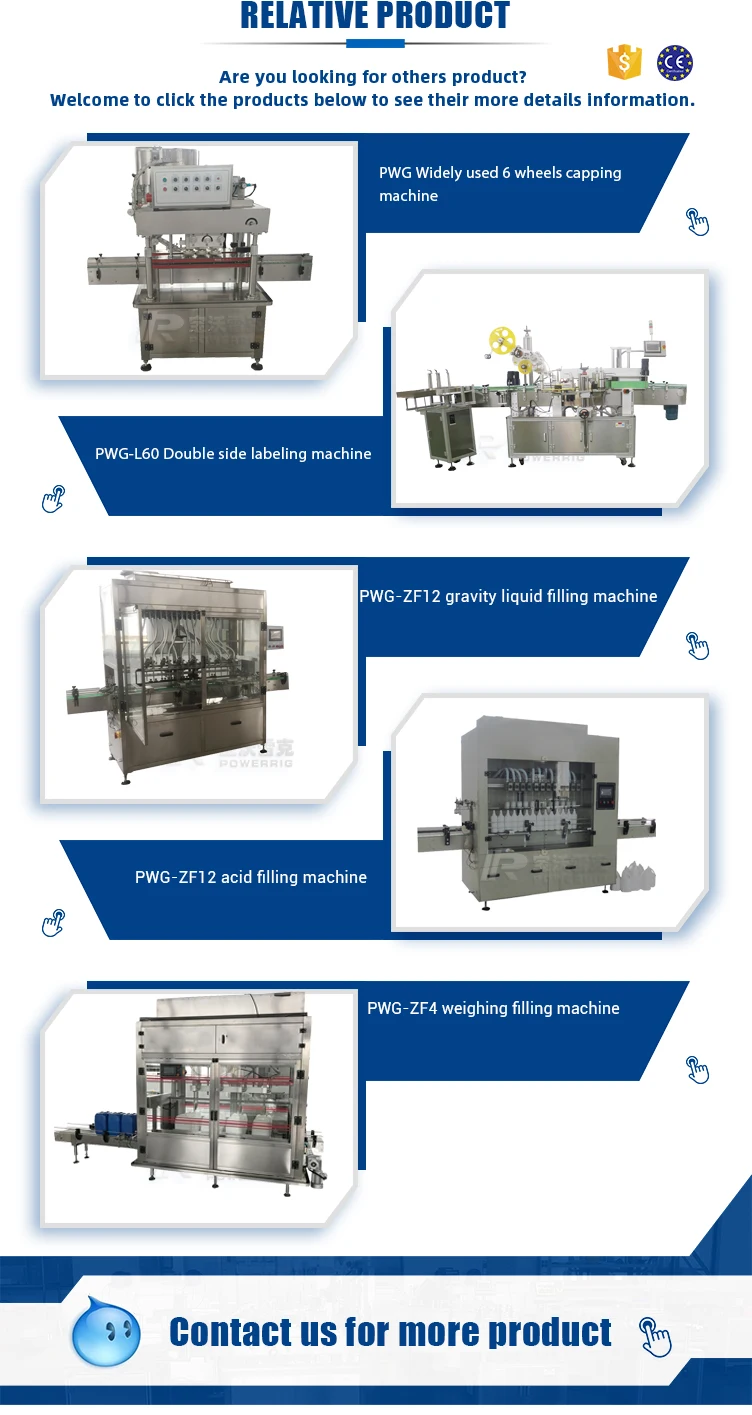

Related Product
Machine model
Suitable packages
Filling material
Bleach bottle ,plastic bottle ,all kinds of bottle
Bleach , corrosion material , acid material, Hypochlorous acid,Alkaline material.toilet cleaner, pesticide and so on
All kinds of bottle
Liquid detergent, liquid soap, Dishwashing liquid,shampoo, lotion ,cream, hair conditioner
Drum, 20L barrel.
Engine oil , grease, car oil .lube oil chemical liquid
Our service

If you need the whole produdction line of the Automatic volumetric 8 nozzle cleaning liquid laundry dishwashing detergent bottle filling capping machine for liquid detergent, we also can help you match the labeling machine after filling and capping machine

And the bottle feeder unscrabler table or box type bottle unscrabler used to sort of bottle and send bottle into filling capping machine automatically, need match which type labeling machine or which type
bottle feeder machine need customize according to customize different bottles.

1. Can help customer find raw material, package bottle, offer whole line serivce
2. Offer customize serivce, according to customer different tube customize machine
3. Offer Machine layout design according to customer's site size
4. Offer engineer Go abroad to install and trainning
5. Whole-lifer after sale serivce

Packing&delivery
Packaging use export wooden case pack
Size
2440mm × 1800mm× 2500mm
Weight
1000 kg
Packing detailed
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Company

FAQ


Q:How Can I get a detailed quotation of Automatic volumetric 8 nozzle cleaning liquid laundry dishwashing detergent bottle filling capping machine for liquid detergent from you?
Just send us inquiry through this web page is ok. I will reply your any question within in 6 hours.

Q:Can your company able to offer 2 years gurantee?

Yes it's no problem for our company. During the warranty, if you need any spare parts, we will delivery it to you in DHL for free.

Q:Do you offer a free set of replacement parts for parts that commonly wear out quickly?
All spare parts are always avaliable for delivery. Above 90% spare parts are made by ourselves. Because we have our own processing center, so we can supply at anytime.

Q:What is the whole production line?Can i connect labeling machine ,bottle feeder with filling machine in whole line?
I do not know how many meters of conveyors are involved so can not determine the over-all size of the line with all of its components?
We can help you match pipe and pump to transfer material form raw material tank to filling directly., so it can be totally auatomaticlly.We will design and make a layout plan according to customer's factory floor plan.

Q:What is the cost to send installation/training staff? How many staff do you need to send?
Whole installation/traning process needs 2peoples. Around 10days. Client needs to provide us round-air ticket, visa fee, local transpotation, accomodation, food, and 80USD/day/person.
