High quality gavity emulsion varnish bucket filling machine paint filling machine

FOB Reference Price:Get Latest Price
$12,000.00 - $28,000.00 / Sets | 1 Set/Sets (Min. Order)
Power:
2.5KW
Model Number:
PWG-CDP-4W
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Packaging Type:
Bottles, Cans, Capsule, paint filling machine
Packaging Material:
Glass, Metal, Plastic, emulsion varnish filling machine
Type:
Filling Machine
Condition:
New
Application:
Chemical, Food, bucket filling machine
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V
Place of Origin:
Jiangsu, China
Brand Name:
POWERRIG
Dimension(L*W*H):
2800*1600*2500mm
Weight:
800kg
Certification:
CE ISO
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Engineers available to service machinery overseas
Name:
gravity liquid filling
Function:
Automatic filling material
Material:
Stainless Steel 304
Filling material:
Flowing Liquid
Filling nozzle:
4 nozzles
Filling range:
5-25L
Production capacity:
200-400 BPH
Filling way:
Weighing filling
After sale service:
Lifetime after sale serive
Supply Ability
Supply Ability:
10 Set/Sets per Month emulsion varnish filling machine
Packaging & Delivery
Packaging Details
emulsion varnish filling machine packed by standard export wooden box
Port
Shanghai/Ningbo
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Product Description

High quality gavity emulsion varnish bucket filling machine paint filling machine

Application

Product Introduction:

The product bulk supply is pumped into a holding tank above a set of pneumatically operated valves. Each valve is independently timed by the filler's master computer so that precise amounts of liquid will flow by gravity into the container. Gravity fillers built with bottom up fill capability can handle a wide range of flowable liquids including foamy products.


Application :

Water, solvents, alcohol, specialty chemicals, paint, inks, corrosive chemicals i.e. acids and bleach, oil , liquid soap etc.

This production line is customized,and we will make a suitable plan for you according to your detailed request.

Some other model for reference

Model
Filling range
Capacity
Remark
PWG-ZX-4
50-200ml/ 100-500ml/500-1000ml /1000-5000ml
1000-2000BPH


All machine voltage according to customer requirements to make
PWG-ZX-8
50-200ml/ 100-500ml/500-1000ml /1000-5000ml
2000-3000BPH
PWG-ZX-16
50-200ml/ 100-500ml/500-1000ml /1000-5000ml
3000-4000 BPH
PWG-CZ-20
50-200ml/ 100-500ml/500-1000ml /1000-5000ml
4000-5000BPH
All machine filling nozzle quantity could be custom .
PWG-CDP-4W
5-25L / 8-30L
250-300BPH
PWG-CDP-4W
5-25L / 8-30L
300-450BPH

Piston filling machine

4000PBH filling machine

Filling capping machine

Main Features

1. Suitable for all kinds of liquid, high precision;
2.PLC control system, frequency conversion adjusting speed, high degree automation.
3. No bottle, no filling, auto count the quantity. And have the anti-drop device.
4. Filling quantity of all pumps is adjusted in a lump, minim adjustable for each pump. Easy and quick operate.
5. Filling head is equipped with anti-dropping equipment, diving to the bottom to fill, rise slowly, to avoid bubble.
6. The whole machine is suitable bottles in different size, easy adjusting, and can be finished in short time.

Detailed Images

Machine Parts

Name:  Weighing device

Brand: Powerrig

Original: China

Adopt weighting part automatic measure the filling weight .

Machine Parts

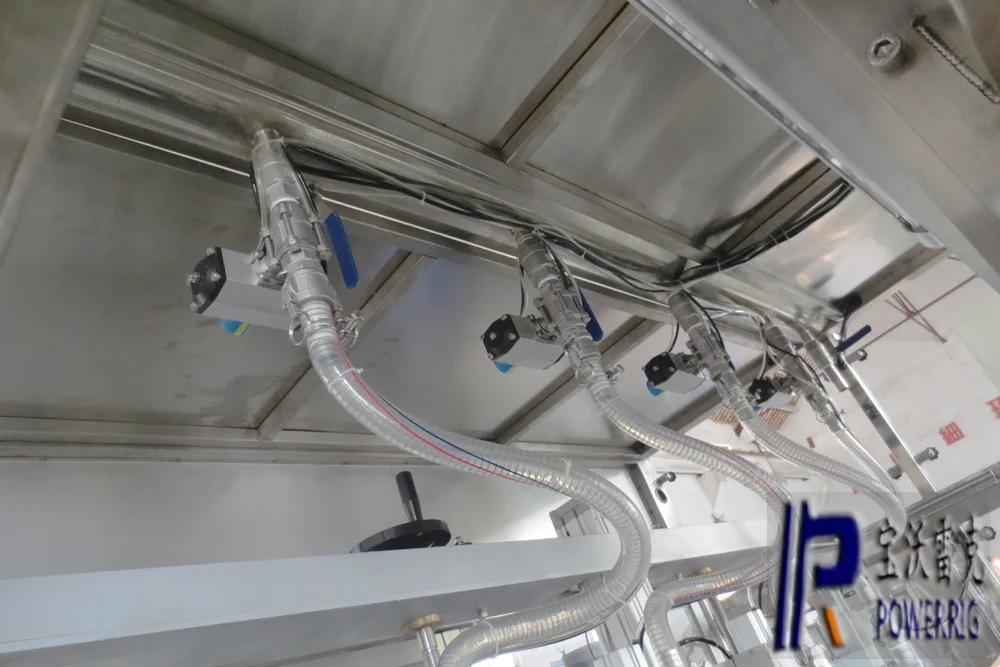

Name: Three link valve and filling pipe
Brand: Powerrig
Original: China
Adopt export three link valve control the filling no leak . And filling pipe adopt teflon hose with corrosion resistance.

Machine Parts

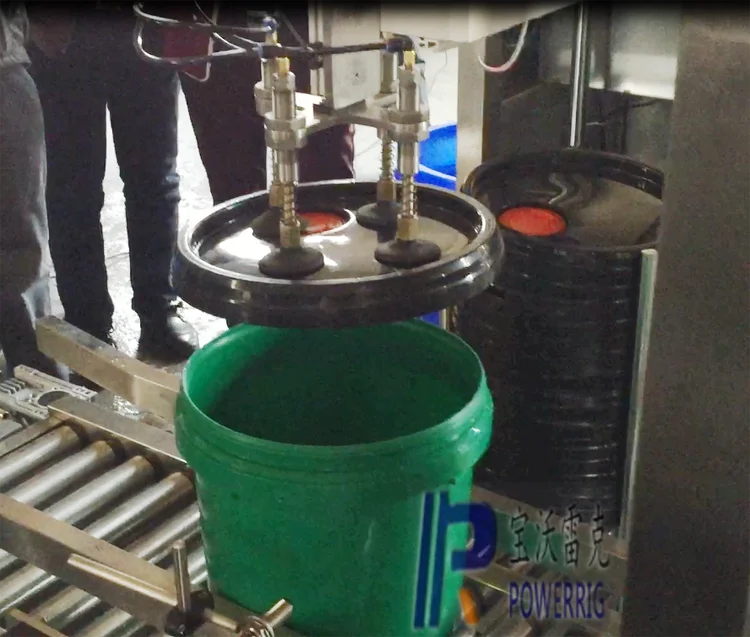

Name: Filling head
Brand: powerrig
Original: China
Every filling head has anti-drip design. It promise do not waste the material. And diameter of filling head basis on the diameter of customer's barrel's mouth.

Machine Parts

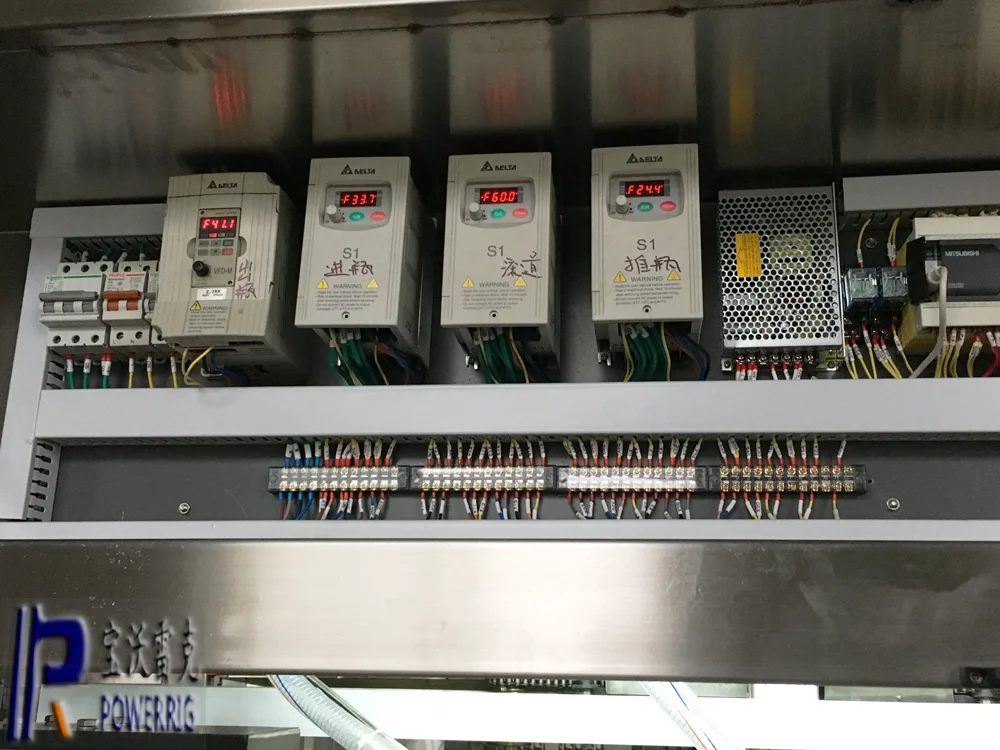

Name: Driving system
Brand: Power
Original: China
The PLC control system is combined with the weighing feedback system. With fixed channel parameters, large flow control is applied to get close to the target value, and the target metering filling is achieved through small flow replenish.

Related Products

Capping machine

Certifications

Our machine configuration brand

Our Service

Lifetime after sale service

Why After Sales Service ?
After sales service plays an important role in customer satisfaction and customer retention. It generates loyal customers.
Customers start believing in the brand and get associated with the organization for a longer duration. They speak good about the organization and its products.
A satisfied and happy customer brings more individuals and eventually more revenues for the organization.
After sales service plays a pivotal role in strengthening the bond between the organization and customers.

Some cooperate brand

Packing & Delivery

 Use standard export wooden box packing

Before Order Confirmation:
Our factory team does all the prepare work to make sure our equipment can meet your needs by:
1. Confirm customer packing requirements, such as packing material , filling volume , production capacity requirements ect.
2.Offer drawing, machine model details and formula suggestion for confirm.
3.Give information like quotation ,production time ,delivery time,etc.
4.Design packaging sulotions ,based on clients' requirements.


 During Order Production
Our factory has full-time merchandiser who will update all our clients' order condition from our producing line each day,then our salesman will keep clients updated of the production each week by E-mail,Phone call ,photos or Video.

After Order Finished and service
1.We will keep touch with our clients feedback the order finish and send video of customer packing material and pictures .After customer confirm then pay the balance .
2.Our machine have 1 year guarantee that any part broken within one year , we will send you by free . And we do lifetime after sale service , any time you have problem you can contact us by email , whatsapp. skype etc. We will reply you within 12hours. And tell you the solutions .

 This production line is customized,and we will make a suitable plan for you according to your detailed request.More informations, please feel free contact :


Tell&Whatsapp:+86 18257104541

Skype: Mic-Yilia

QQ: 985465791

Wechat: lyh1308953921
