Glass jar capping machine for cosmetic cream lotion filling sealing

FOB Reference Price:Get Latest Price
$13,000.00 - $27,000.00 / Sets | 1 Set/Sets (Min. Order)
Power:
2kw
Model Number:
Powerig-L45
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Packaging Type:
Bottles
Packaging Material:
Glass, Metal, Plastic
Type:
Filling Machine
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V/50Hz (Can customize)
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Powerrig
Dimension(L*W*H):
2400*1200*1900mm
Weight:
1000KG
Certification:
CE
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Filling volume:
50-500 ml
Capacity:
30-35 bottles/hour
Automatic capping rate:
≥99%
Air source:
1.3m3/h 0.4-0.8Mpa
name:
jar filling and capping machine
product name:
jar filling machine for cosmetics
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
jar filling and capping machine use export wooden case
Port
shanghai
Video Description

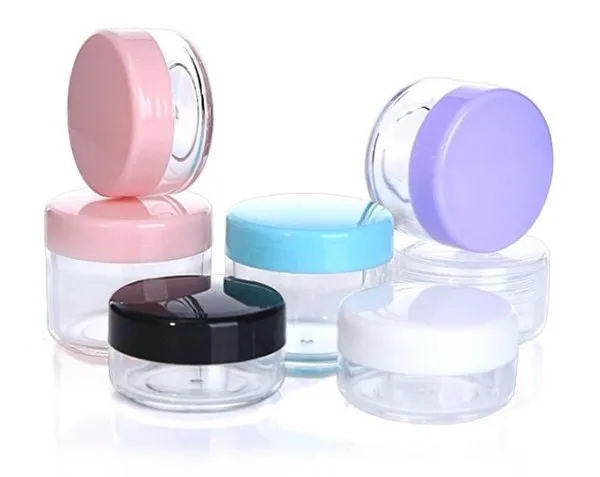

Suitable package
Product description
Glass jar capping machine for cosmetic cream lotion filling sealing
Filling volume
5-500ml ( can customize filling volume)
Capacity
30-35 bottles/min
Voltage
380V/50Hz (Can customize)
Automatic capping rate
≥99%

Power
2 Kw

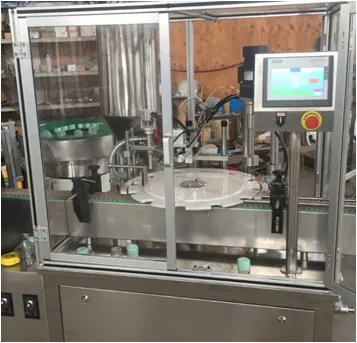

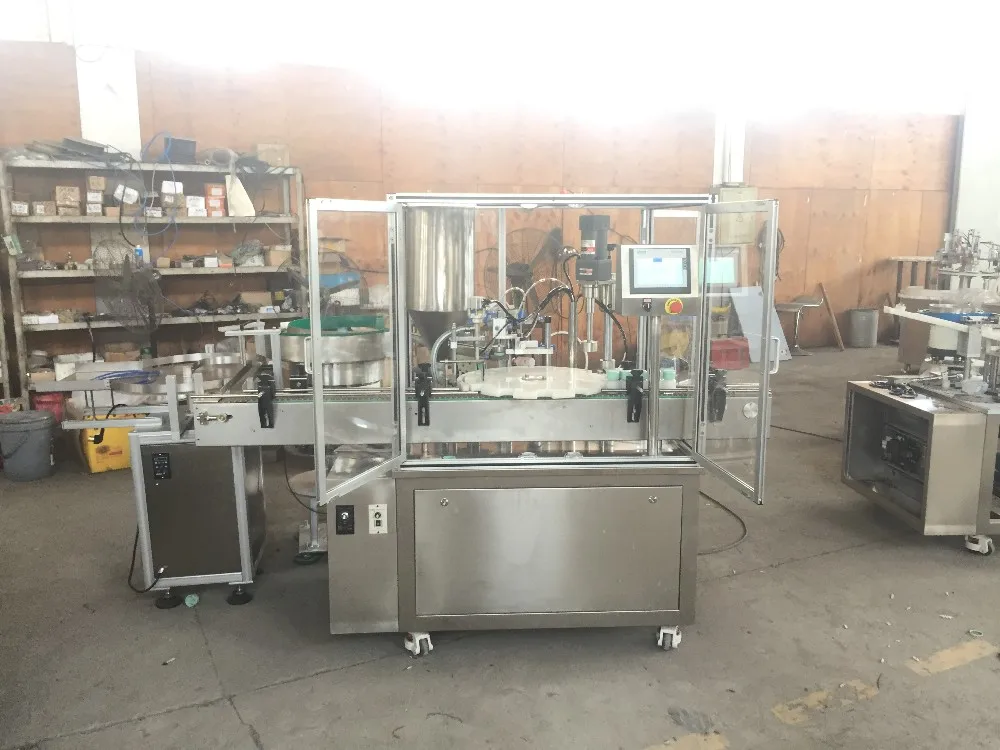

Glass jar capping machine for cosmetic cream lotion filling sealing

 This Automatic cosmteic glass bottle plastic jar face cream body lotion filling machine with capping reflect GMP standard for Food ,Pharmaceutical equipment required Advanced, reliable, rational design ideas, Automatic filling, under cover, pre-swirl,

capping, sent, using linkage design, all the action synchronization is complete.
Automatic jar cream Lotion Filling Sealing and Capping Machine is 3 in 1 one machine by using round turn plate. After filling, the machine will heat and cut the film. Then the mechanical hand put the cap and tighten it by cylinder.
According to different jar size, the star wheel, should be also changed. The machine is no jar no filling function. The machine is controlled by PLC This machine is suitable for filling high viscosity cream/sauce/jam/honey
Detailed Images

The filling head:

Adopt plunger piston pump filling, filling volume and filling speed adjust is Convenience.Filling head can lift.
Component of filling head is easy disassembly, easy cleaning, disinfection and sterilization (We will customize 2 heads filling for your cream filling)

Turn table:

Can change different size turn table, according to different volume jars

  Rotary table chuck

 All work stations will be finished in the 12 work station chuck,Form– filling –sealing film- loading cap– capping – finish product output,If have diameter size of bottle is different,Need change the chuck

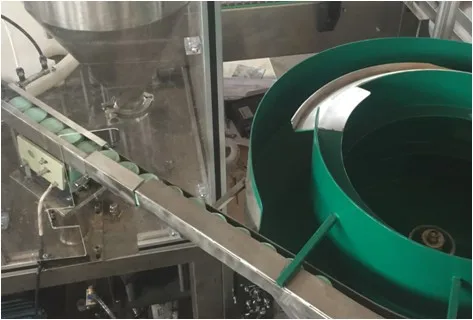

  Vibration disk for caps

 Cap vibrating plate, sort of caps ,automatically and send cap to loading cap guide and load cap station In turn

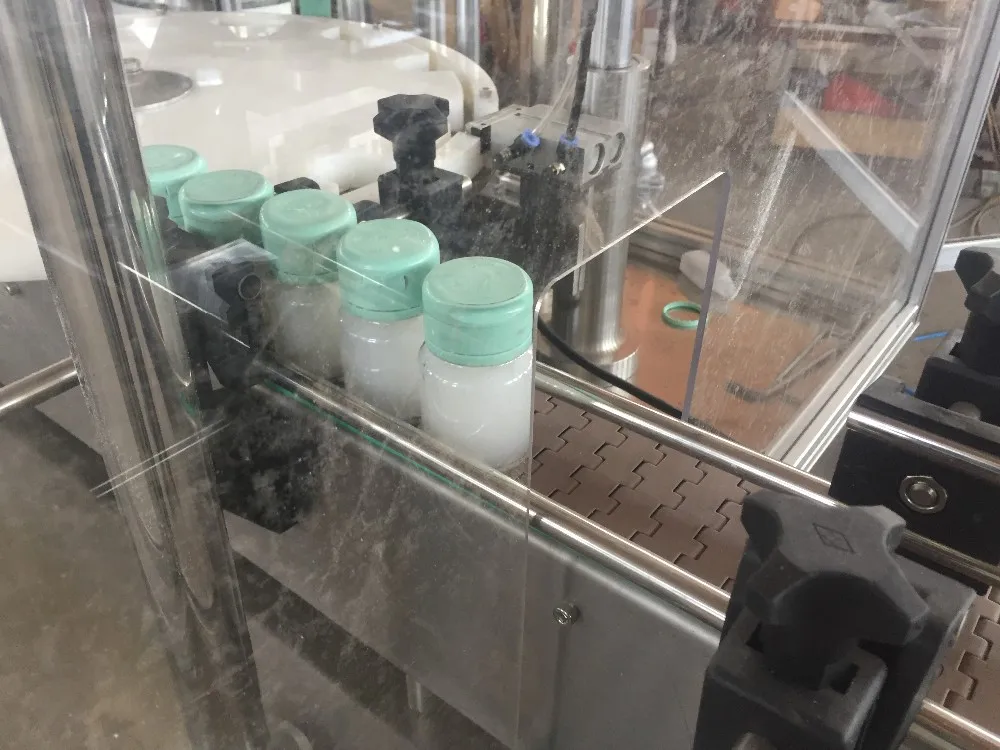

   All movement stations

 All action stations will finish work in one table, use Germany FAJ Splitter control chuck host running, all work station's movement Synchronization and accuracy is more high

 Loading cap guide

  Connect with loading cap station, vibrating plate sort of caps and send plug to the loading plug station through the load plug guide continuously

Glass jar capping machine for cosmetic cream lotion filling sealing can totally customize according to customer's different bottle and caps

According to customer's requirements, customize whole production ,included the filling machine, capping machine , labeling machine , sealing machine and bottle connection table.
If you have any questions or requirements about this Automatic Glass jar capping machine for cosmetic cream lotion filling sealing ,please kinding send your inquiry:
Related product

Cosmetic cream glass jar capping machine

 .

Automatic small scale bottle 10ml vial liquid filling stoppering and capping sealing machine

Packing & Delivery
Packaging
Size
2000*1200*1900mm
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our company

 FAQ

Q:How Can I get a detailed quotation of Glass jar capping machine for cosmetic cream lotion filling sealing from you?
Just send us inquiry through this web page is ok. I will reply your any question within in 6 hours.

Q:Can your company able to offer 2 years gurantee?
Yes it's no problem for our company. During the warranty, if you need any spare parts, we will delivery it to you in DHL for free.

Q:Do you offer a free set of replacement parts for parts that commonly wear out quickly?
All spare parts are always avaliable for delivery. Above 90% spare parts are made by ourselves. Because we have our own processing center, so we can supply at anytime.

Q:What is the whole production line?Can i connect labeling machine ,bottle feeder with filling machine in whole line?
I do not know how many meters of conveyors are involved so can not determine the over-all size of the line with all of its components
We can help you match pipe and pump to transfer material form raw material tank to filling directly., so it can be totally auatomaticlly.We will design and make a layout plan according to customer's factory floor plan.


Q:What is the cost to send installation/training staff? How many staff do you need to send?
Whole installation/traning process needs 2peoples. Around 10days. Client needs to provide us round-air ticket, visa fee, local transpotation, accomodation, food, and 80USD/day/person.



If you have any questions or requirements about this Glass jar capping machine for cosmetic cream lotion filling sealing ,please kinding send your inquiry:
