Vacuum degree perfume bottle filling machine for 30ml bottle

FOB Reference Price:Get Latest Price
$17,000.00 - $29,000.00 / Sets | 1 Set/Sets (Min. Order)
Power:
370W
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Product Hightlights
Warranty Packaging Type Packaging Material
1 Year Bottles Glass, Metal, Plastic
Specifications
Type:
Filling Machine
Condition:
New
Application:
Chemical, Machinery & Hardware, Medical
Automatic Grade:
Semi-Automatic
Driven Type:
Electric
Voltage:
220V/380V
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Powerrig
Dimension(L*W*H):
1800*1000*1500mm
Weight:
600kg
Certification:
CE ISO
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Filling nozzle:
3 piece Three heads all is vacuum filling nozzle
Filling volume:
5-50ml
Filling form:
Sealing vacuum filling
Filling speed:
30-50 bottle per min
Filling accuracy:
+/- 1mm
bottle table:
600*300 mm length and width 2 pieces (input and output)
Controller:
PLC+ touch screen
Air pressure:
pressure≥4Kg/cm2,
Flow quantity:
0.11m3/min
Supply Ability
Supply Ability:
15 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.Export free fumigating wooden case 2.One set in one case with film wrapped
Port
shanghai/NIingbo port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Suitable package

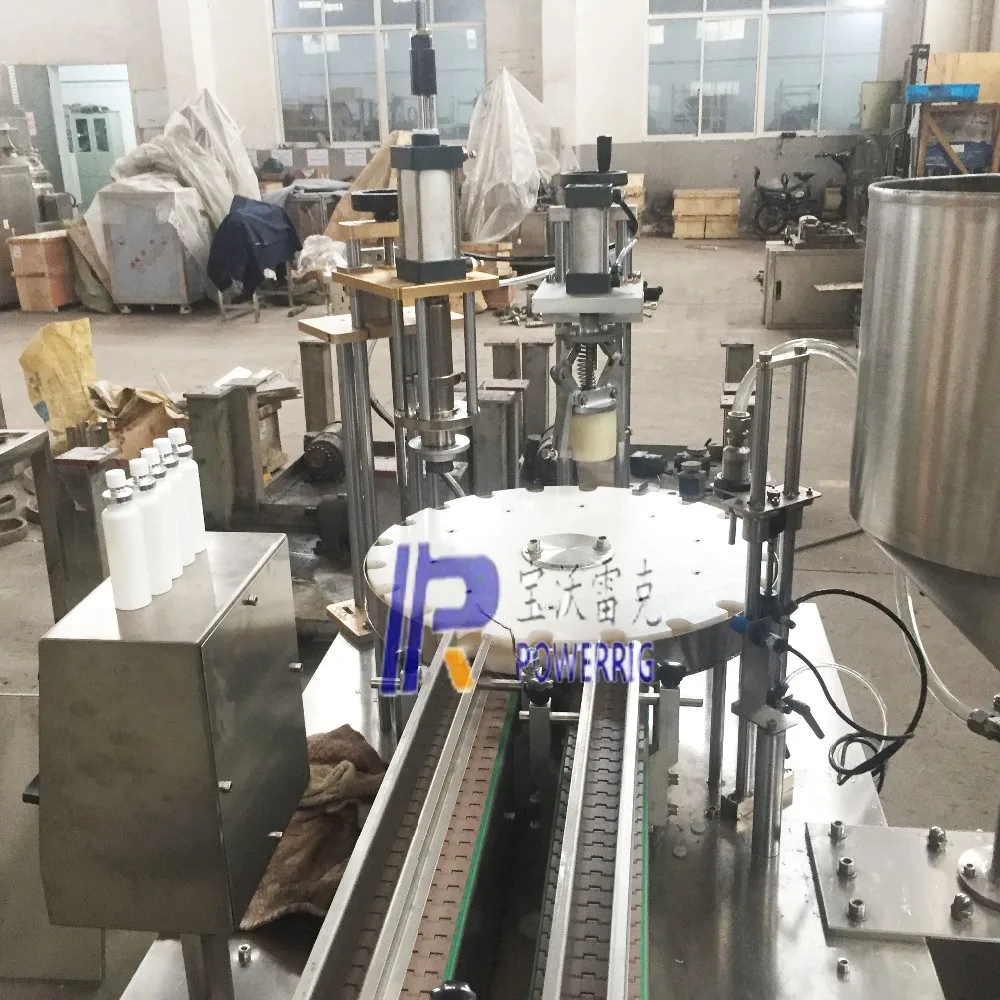

Equipment overview

 Filling and sealing perfume sample

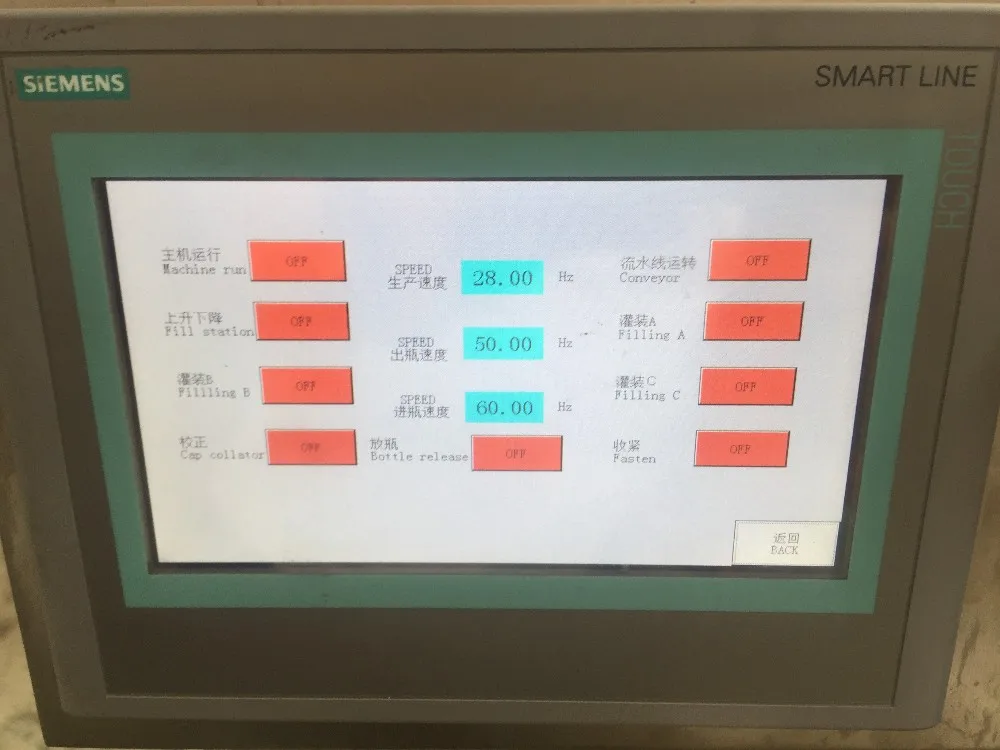

Germany Siemens Touch screen operate and PLC



All work stations in one turn table, filling sealing Synchronize
Chuck customize according to different bottle



Vacuum filling nozzle for perfume filling

Suck back vacuum filling function



Intelligent semi-auto small perfume bottle filling machine with high filling precision

Put the bottles into the feeding conveyor, let them enter the filling machine in order
The exam sensor starts to exam if there is bottle on this station. Then deliver the exam signal to the inner control system, to control no bottle, no filling
If the sensor exams there are bottles, then the filling machine starts to fill.
The bottles after filling enter into the automatic caps dropping station through the rotary table.
The bottles after dropping caps enter into automatic capping station.


Perfume filling machine Main Features

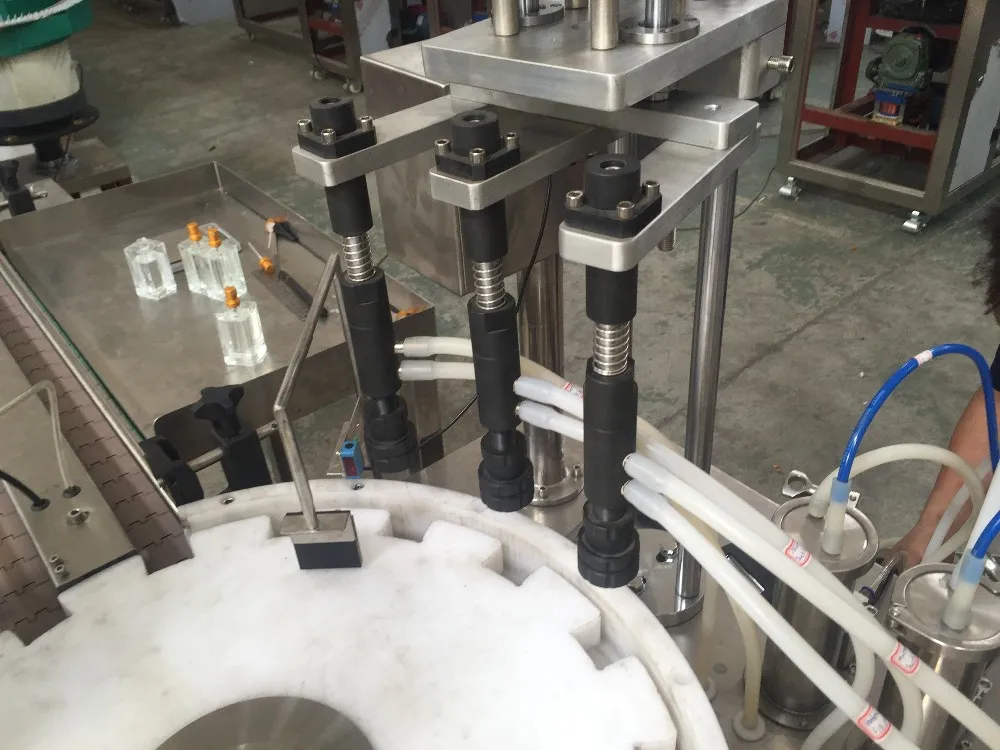

Name: Vacuum filling nozzle
Brand: Powerrig
Original: China
 Our filling head have 2 jackets

You can see the filling split connect with 2 pipes. The outside jacket connect with vacuum suction air pipe. The inner jacket connect with filling perfume material pipe.
Outside jacket connect with Negative pressure suction air pipe(There are have a vacuum generator connect with the air pipe) .

Perfume filling machine Machine Parts

Name: Capping head
Brand: powerrig
Original: China
 Pre-tighten up and regulate position of pump cap head.

Capping head, After ensure the position of pump cap is right, second cap capping this pump cap tight.

Perfume filling machine Main Features

Name: Turn table and all work position
Brand: Own customize
Original: China
All work station will work in one table

High precision Cam divider control turn table work

All movement work in one table

More accuracy and the stable is more high.

If you have any questions or requirements about this automatic perfume filling crimping machine ,please kinding send your inquiry:
Why choose powerrig

Customize service to customer

Powerrig Machinery Company can customize whole production line for produce cosmetic cream, gel ,liquid form Processing raw material to filling ,sealing and capping ,we could design whole production line ,according to customer 's different requirement and different factory site area,
And filling sealing machine also will customize basis on customer differnt bottle sample
And we offer different filling method filling machine for different material.

Machine all will customize accordng to different customer's package
The bottle shape size different , the cap shape type different ,machine all can customize basis on different package , widely used in perfume ,Fragrance and cosmetic industry , suitable to glass bottle ,spray metal cap filling and crimping . As follow package:

Engineering and marketing step by step

We continue to innovate by listening and responding to our customers' needs. With an emphasis on quality parts and engineering


Professional

Our online troubleshooting teams ,Production team,technology team prwill identify your troubles then repair them. They are available for 24hours/7days.Our overseas engineer team can be carried out to any part of world to fix problems in your line

Concentration

The customer's request is our production standard,exprot machine to More than 50 countries.

Equipmemt parameter
Model/parameter
Production speed
Loading bottle method
Loading cap method
PWJ-zxs-30
       30-40 bottles/hour
 manual loading (can choose use feeder bottle table loading it automatically)
automatic loading
(Vibrating plate loading)
              PWJ-zxs-60
     30-60 bottles/hour
Automatic loading botte
  automatic loading
Packing & Delivery
Packaging
Size
2900 (L) * 1200(W) * 2500 (D)
Weight
1TON



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ


 Why choose Powerrig?
Last lead times and hands on demonstrations.
Powerrig's practiced manufacturing processes, allow for some of the fastest lead times in the industry even on fully automatic and rotary systems.
Powerrig is has two manufacturing facilities and has multiple showrooms. Customers are encouraged to come and visit us to learn about the company and our machines. Each showroom has working machines to provide live demonstrations of Powerrig's machinery.

Equipment Guidelines
Guidelines for selecting Packaging Equipment
In today's world of unique packages it's important for customers to take the time to research the equipment and the company they plan to purchase from.

Know the Machine
• Are the machines upgradeable and adjustable?
• Will they grow with your company
. Our crimp capping head work principle
Just our machine expecially design 2 parts capping, First part is used to Pre-tighten up and regulate position of pump cap head.Second part is crimp capping head

Expert service, setup, and training.
Maintenance, training, and installation are all services that Powerrig offers customers. Proper installation and setup are key in getting new equipment working as quickly and efficiently as possible.Powerrig understands this, and is why all Powerrig machines leave the factory calibrated for each customer's individual needs. Powerrig's technicians also train our customers on how to maximize performance and reduce machine downtime.

Designing machines that grow along with the customer.
One of the key features of Powerrig packaging lines are that they are designed to accommodate a range of different projects. Powerrig knows that production needs change as time goes on and our lines are designed to grow with those needs. Each machine is engineered to handle a number of jobs and switch between those different jobs with little to no downtime. This makes Powerrig machines a far better investment when comparied to the limited capabilities of our competitor's models
Contact us

If you have any questions or requirements about this automatic perfume filling crimping machine ,please kinding send your inquiry:
