Adhesive super glue bottle cyanoacrylates tube filling capping machine

FOB Reference Price:Get Latest Price
$9,700.00 - $17,000.00 / Sets | 50 Set/Sets (Min. Order)
Power:
3KW
Model Number:
PWG-G-60
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Bottles, tube
Packaging Material:
Plastic, Other
Type:
Filling Machine
Condition:
New
Application:
Chemical, Food, Machinery & Hardware, Medical, Other
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V
Place of Origin:
Jiangsu, China
Brand Name:
Powerrig machinery
Dimension(L*W*H):
1800*1000*1500mm
Weight:
800kg
Certification:
CE ISO
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Filling Quantity:
1-50ml
Gas Consumption:
0.5-0.6 m^3/min
Air Pressure:
0.5-0.8Mpa
Tube Socket:
16
Motor:
2.5Kw
Capacity:
30-50 bpm
Precision:
±1%
Vibrating Tray:
2 /3pieces
Filling Form:
Gravity Filling
Cap Covering:
Mechanical Arm
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export wooden case
Port
Shanghai port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description

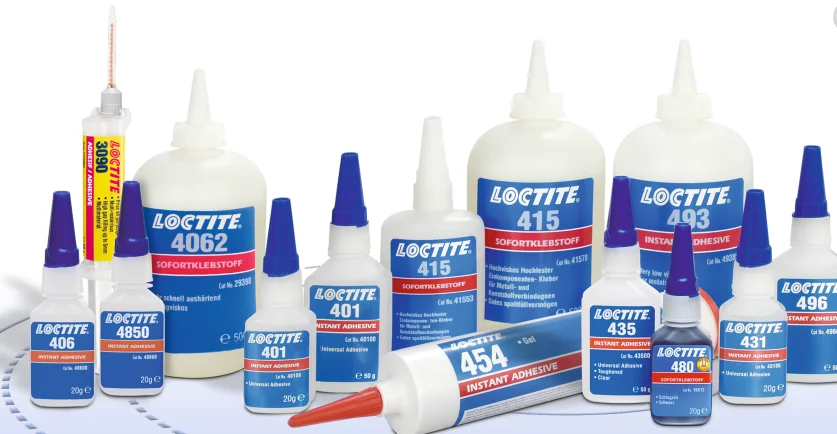

Suitable package
Equipment overview

Adhesive super glue cyanoacrylates filling capping machine

The machine is a newly designed adhesive machine for adhesive factory ,which is mainly used for of super glues in plastic bottle packing. The bottles are inserted to the seat automatically by the vibrating try. For material feeding, it applies self-suck device to inhale material and begin filling. The caps are put on also by a lectromagnetism shaking tray. A specialized motor is used to screw caps which ensures a suitable screwing thickness. There are 16 bottle stations to finish all functions during rotary. The whole machine is controlled by PLC system and the operations are done by the touch screen, fully automatic from bottle feeding to bottle exit. Therefore, it is very popular among the chemical and glue industry.

Machine running process
 Step 1. Bottles get into moulds automatically by a vibrating try
Step 2. The machine will fill glue into the bottle in self-suck
Step 3. The machine puts the inner cap on the bottle
Step 4. The machine will screw the inner caps automatically
Step 5. Finishing cap screwing, the bottle exit from seat automatically
Step 6. Another operator press the external cap on the bottle.



Glue filling machine capping head

Capping head use Swing lifting cam and guide sleeve control separately

Ensure the capping part more accuracy and more stable

Loading inner plug guide and catch capping head

Catch innger plug capping head also use swing lifting cam to control

So improve the capping Accuracy and avoide drop  cover.

Ensure the capping part more accuracy and more stable.

Inner plug will along the guide send to the capping head directly.

Vibrating plate for bottle

Automatically sort of the bottles and bottle will along the guide into bottle holder socket automatically.



Equipment advantage

Catch capping head use guide sleeving control

Add swing lifting cam and guide sleeve controm , capping part running more stable

Fix botle device

Fix bottle device, when you capping the bottle, in order to aovid the botthe turn around, especailly add the fix bottle device

Ensure the bottle won't move when capping , cappng more accuracy.

Equipment parameter
Model /Parameter
 Production capacity
Vibrating plate
Whether loading bottles
PWG-G-60 (Automatic)
40-60 bottles/min
3 sets vibrating plates
Loading bottles automaticly
PWG-G-30 (Semi-auto)
        30-40 bottles/min
2 sets vibrating plates
Loading bottles manualy
Why choose Powerrig

 Customize service to customer

 Powerrig Machinery Company can customize whole production line for produce cosmetic cream, gel ,liquid form Processing raw material to filling ,sealing and capping ,we could design whole production line ,according to customer 's different requirement and different factory site area,

And filling sealing machine also will customize basis on customer differnt bottle sample
And we offer different filling method filling machine for different material.
Glue filling machine is especially design for 502 glue, PVC glue , super glue filling
If you also need the glue flat bottle and round bottle labeling machine for the glue bottle
We also can help you match it
If you want the machine filling glue more stable or filling more fast and filling volume more stable
You also could macth one pressure tank for filling the glue
Filling machine need how many filling nozzles need customize according to customer need production capacity.
So if customer also capping machine or labeling machine
Could click above picture link :)

Concentration

 The customer's request is our production standard,exprot machine to More than 50 countries.

Professional

 Our online troubleshooting teams ,Production team,technology team prwill identify your troubles then repair them. They are available for 24hours/7days.Our overseas engineer team can be carried out to any part of world to fix problems in your line.

Engineering and marketing step by step

We continue to innovate by listening and responding to our customers' needs. With an emphasis on quality parts and engineering

Packing & Delivery
Package
Size
1900 (L) * 800(W) * 1800 (D)
Weight
800 KG
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ

 Why choose Powerrig?

Fast lead times and hands on demonstrations.
Powerrig's practiced manufacturing processes, allow for some of the fastest lead times in the industry even on fully automatic and rotary systems.
Powerrig is has two manufacturing facilities and has multiple showrooms. Customers are encouraged to come and visit us to learn about the company and our machines. Each showroom has working machines to provide live demonstrations of Powerrig's machinery.
Equipment Guidelines
Guidelines for selecting Packaging Equipment

In today's world of unique packages it's important for customers to take the time to research the equipment and the company they plan to purchase from.Know the Machine


• Are the machines upgradeable and adjustable?
• Will they grow with your company
• Which features are standard and what comes as options?



Expert service, setup, and training.

Maintenance, training, and installation are all services that Powerrig offers customers. Proper installation and setup are key in getting new equipment working as quickly and efficiently as possible.Powerrig understands this, and is why all Powerrig machines leave the factory calibrated for each customer's individual needs. Powerrig's technicians also train our customers on how to maximize performance and reduce machine downtime.

Designing machines that grow along with the customer.

One of the key features of Powerrig packaging lines are that they are designed to accommodate a range of different projects. Powerrig knows that production needs change as time goes on and our lines are designed to grow with those needs. Each machine is engineered to handle a number of jobs and switch between those different jobs with little to no downtime. This makes Powerrig machines a far better investment when comparied to the limited capabilities of our competitor's models.

Offering big name parts and features for little to no extra cost.

Powerrig machines come with far more standard features and standardized parts than any competitor. Features like, touch screen controls, job memory, and name brand components from companies like Panasonic, Allen Bradley, and Parker Hannifin are just a few examples. Powerrig provides technical documentation, printed instruction manuals, and exploded view diagrams to our customers. Powerrig has spent years designing and manufacturing equipment and understands what our customers want and need.
