Small scale bottle beauty oral liquid filling capping machine

FOB Reference Price:Get Latest Price
$13,000.00 - $27,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Bottles
Packaging Material:
Glass, Plastic
Type:
Filling Machine
Condition:
New
Application:
Chemical, Food, Machinery & Hardware, Medical
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
110v/220V/380V
Power:
2KW, 2.0Kw
Place of Origin:
Jiangsu, China
Brand Name:
Powerrig Machinery
Dimension(L*W*H):
2200X800X1600MM
Weight:
850KG
Certification:
CE
Filling volume:
5-50ml
Capacity:
30-45 bottles/hour
Filling Precision:
≤±1%
Power Supply:
380V/50Hz (Can customize)
Capping Rate:
≥99%
Stoppering rate:
≥99%
Air Supply:
1.3 m3/h 0.4-0.8Mpa
Name:
small scale bottle filling machine
Product name:
oral liquid filling machine
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.Export free fumigating wooden case 2.One set in one case with film wrapped
Port
shanghai port
Lead Time :
within 25-30 working days
Video Description
Suitable packages
Related Products

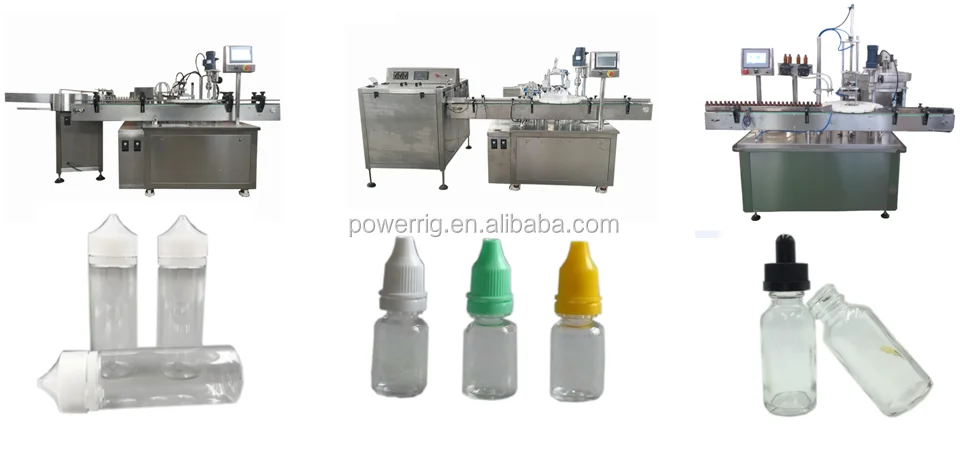

Different type small scale vial filling and capping machine

Machine model
Suitable packages
Suitable filling material
Dropper cap with glass bottle
Dropper cap with plastic bottle
E-lqiuid oil ,E-cigratte oil, Essential oil, Serum, VG, PG, seed oil, Hemp seed oil and So on
Inner plastic plug with oustide cap with glass bottle
Inner plastic plug with oustide cap with palstic bottle
Eye drop, E-lqiuid oil. E-cigratte oil, Essential oil, Serum, VG, PG, seed oil, Hemp seed oil and So on
Spray cap with outside cap with glass bottle
Spray cap with outside cap with plastic bottle
Metal spray cap with plastic bottle/glass bottle
perfume, medicine liquid, cosmetic liquid,
Machine model
Suitable packages
Suitable filling material
Medicine grade Rubber inner plug with metal outside cap with glass bottle
Oral liquid, medicine lqiuid
Chubby gorilla bottle filling capping machine
E-lqiuid oil ,E-cigratte oil, Essential oil, Serum, VG, PG, seed oil, Hemp seed oil and So on
Why Choose Powerrig

small scale bottle filling machine
Customize service to customer

Powerrig Machinery Company can customize whole production line for produce cosmetic cream, gel ,liquid form Processing raw material to filling ,sealing and capping ,we could design whole production line ,according to customer 's different requirement and different factory site area,
And filling sealing machine also will customize basis on customer differnt bottle sample
And we offer different filling method filling machine for different material.

Samll bottle filling machine main have 2 filling method for different filling volume and different filling material.

Piston pump filling method main for 50-500ml filling volume and high viscosity material ,Like Essential oil。serum/gel, syrup

Peristaltic pump filling method main for 10-50ml filling volume and  low viscosity material , like e-liquid and eyes drop
Anti-corrosion filling machine main design for have corrosive material , like bleach ,toilet clean liquid and so on.
And we also could match the capping machine , labeling machine in whole poducion line according to customer's needs
Filling machine need how many filling nozzles need customize according to customer need production capacity.

So if customer also capping machine or labeling machine
Could click above picture link :)

Concentration
The customer's request is our production standard,exprot machine to More than 50 countries。

Professional
Our online troubleshooting teams ,Production team,technology team prwill identify your troubles then repair them. They are available for 24hours/7days.Our overseas engineer team can be carried out to any part of world to fix problems in your line.

Engineering and marketing step by step
We continue to innovate by listening and responding to our customers’ needs. With an emphasis on quality parts and engineering

Equipment parameter
Model / parameter
 Capping head
  Filling head
 Production capacity
 Filling method
PWJ-ZXS-45
      1 head
         1 head
     30 botttles per hour
Piston /Peristaltic pump
PWJ-ZXS-40
      2 head
         2 head
   45-50 bottles per hour
piston /Peristaltic pump
PWJ-ZXS-L45
      4 head
         1 head
    30-40 bottles per hour
piston /Peristaltic pump
Equipment overview

Small scale bottle oral liquid filling machine

Powerrig small bottle filling and capping machine Automatic Volumetric Liquid Vial Filling & Stoppering (Full & Half bunging) Machine. The Basic Unit Consists Of One Or both side Turn Tables,Slat Conveyor Belt, Unique Co- eccentric Simultaneous Gassing with Filling. The Machine Is And Can Be Run Totally Through Touch Screen HMI, PLC Control And The Machine Is Based On Servo Motor Drive, Being The Stoppering Of Rubber Bungs Is Carried Out With The Help Of Vacuum Air Pressure. The Main Characteristics of the Machine Is That The Volume Can Be set On the Touch Screen HMI within a two second. The Machine Has an Output Speed of 200 Vials per Minute but Depending upon the Fill Volume and Container Dia. /size Or the Quality & Viscosity of Liquid.

• The volume of to be filled liquid can be maintained on the touch screen-PLC unit itself, without disturbing the syringe physically unit.

All Liquid Contact Parts are of S.S. 316, the Body Structure is built up of S.S. 304 Pipe.
• Co- Eccentric Nozzles allows Very Quick and precise Filling of liquid with Simultaneous nitrogen flushing.
• No Vail/ No rubber Stopper – Machine stops system
• Minimum Change over time, from one spare to another
• Each individual part that is required for autoclaving can be mantled and dismantled very easily.
• Can run both dry as well wet rubber stoppers.
• Can be used for both – full bunging as well as half bunging. (Lypholizer Products)


Equipment advantage

Small scale bottle oral liquid filling machine

 The filling and closing compact machines for automatic processing of vials can fill from 10-200ml.

Changeover time is within 5 minutes and an output up to 6,000 uph. This machine is equipped with a peristaltic pump, valveless rotary piston pump, or powder doser. All production parameters can be saved in the PLC, through different recipes

The parameters are:

• Dosing volume
• Programmable kinematics of the filling system
• Adjustment of the automatic feeders
• Output
• New recipes can be easily created and edited
• Dosing volumes from 1 ml up to 200 ml (Differnt filling volume can choose different filling method)

Our machine will customize different filling method according to different filling volume and different filling material viscosity

small scale bottle oral liquid filling machine Piston control filling

 Piston pump filling method main for 50-500ml filling volume and high viscosity material ,Like Essential oil。serum/gel, syrup

 small scale bottle oral liquid filling machine Peristaltic pump

Peristaltic pump filling method main for 10-50ml filling volume and low viscosity material , like e-liquid and eyes drop

small scale bottle oral liquid filling machine Filling nozzle

Anti-drop and  dive filling nozzle

Piston control high viscosity material filling

Like e-liquid, syrup .

small scale bottle filling machine Loading inner plug and outside cap station

There have 2 stations

One station used to loading the inner plug

One station used to loading outside cap station.


small scale bottle filling machine Touch screen

Use Germany Simense touch screen and PLC program

You can operate this machine through the touch screen directly

Machine movement can use PLC Program control directly.

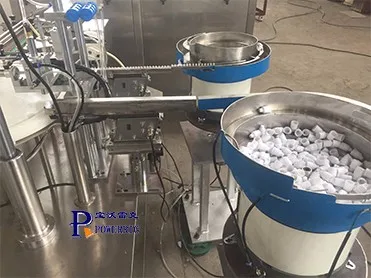

small scale bottle filling machine Dropper vibrating plate

 Use vibrating plate sort of dropper and loading dropper automatically

Dropper will along the loading dropper guide send to  capping station directly and begin capping

small scale bottle filling machine Outside cap vibrating plate

 Use vibrating plate sort of caps and loading caps automatically

Caps will along the loading dropper guide send to capping station directly and begin capping

Packing & Delivery
Packaging
Size
2900 (L) * 1200(W) * 2500 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ

 Why choose Powerrig?

Fast lead times and hands on demonstrations.
Powerrig's practiced manufacturing processes, allow for some of the fastest lead times in the industry even on fully automatic and rotary systems.

Powerrig is has two manufacturing facilities and has multiple showrooms. Customers are encouraged to come and visit us to learn about the company and our machines. Each showroom has working machines to provide live demonstrations of Powerrig's machinery.

Equipment Guidelines

Guidelines for selecting Packaging Equipment
In today's world of unique packages it's important for customers to take the time to research the equipment and the company they plan to purchase from.

Know the Machine
• Are the machines upgradeable and adjustable?
• Will they grow with your compan

Expert service, setup, and training.

Maintenance, training, and installation are all services that Powerrig offers customers. Proper installation and setup are key in getting new equipment working as quickly and efficiently as possible.Powerrig understands this, and is why all Powerrig machines leave the factory calibrated for each customer's individual needs. Powerrig's technicians also train our customers on how to maximize performance and reduce machine downtime.

Designing machines that grow along with the customer.

One of the key features of Powerrig packaging lines are that they are designed to accommodate a range of different projects. Powerrig knows that production needs change as time goes on and our lines are designed to grow with those needs. Each machine is engineered to handle a number of jobs and switch between those different jobs with little to no downtime. This makes Powerrig machines a far better investment when comparied to the limited capabilities of our competitor's models.
