Liquid soap stand up pouch bag filling machine liquid detergent dish wash liquid spout bag filling sealing packing machine

FOB Reference Price:Get Latest Price
$27,000.00 - $36,000.00 / Sets | 1 Set/Sets (Min. Order)
Power:
10KW
Model Number:
L250
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 30 28 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Application:
Food, Beverage, Commodity, Medical, Chemical
Packaging Material:
Plastic, Paper
Type:
Multi-Function Packaging Machine
Condition:
New
Function:
Filling, Sealing
Packaging Type:
Stand-up Pouch, Film, Foil, Pouch
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
110v/220/380V customize
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
powerrig
Dimension(L*W*H):
3550mm *1020mm *2400mm
Certification:
CE
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Work station:
8 work stations
Pouch material:
PP , PE or Composite film
Pouch type:
Spout stand up bag, flat bag
Bag size:
Width:200-310mm Length:100-450mm
Speed:
10-30 bags/min
Packing volume:
250g-2000g
Filling error:
±0.5-1%
Air consumption:
0.6m3/min
Power:
10kw
weight:
1300kg
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.Export free fumigating wooden case 2.One set in one case with film wrapped
Port
shanghai /ningbo
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 30 28 To be negotiated
Video Description
Product Description

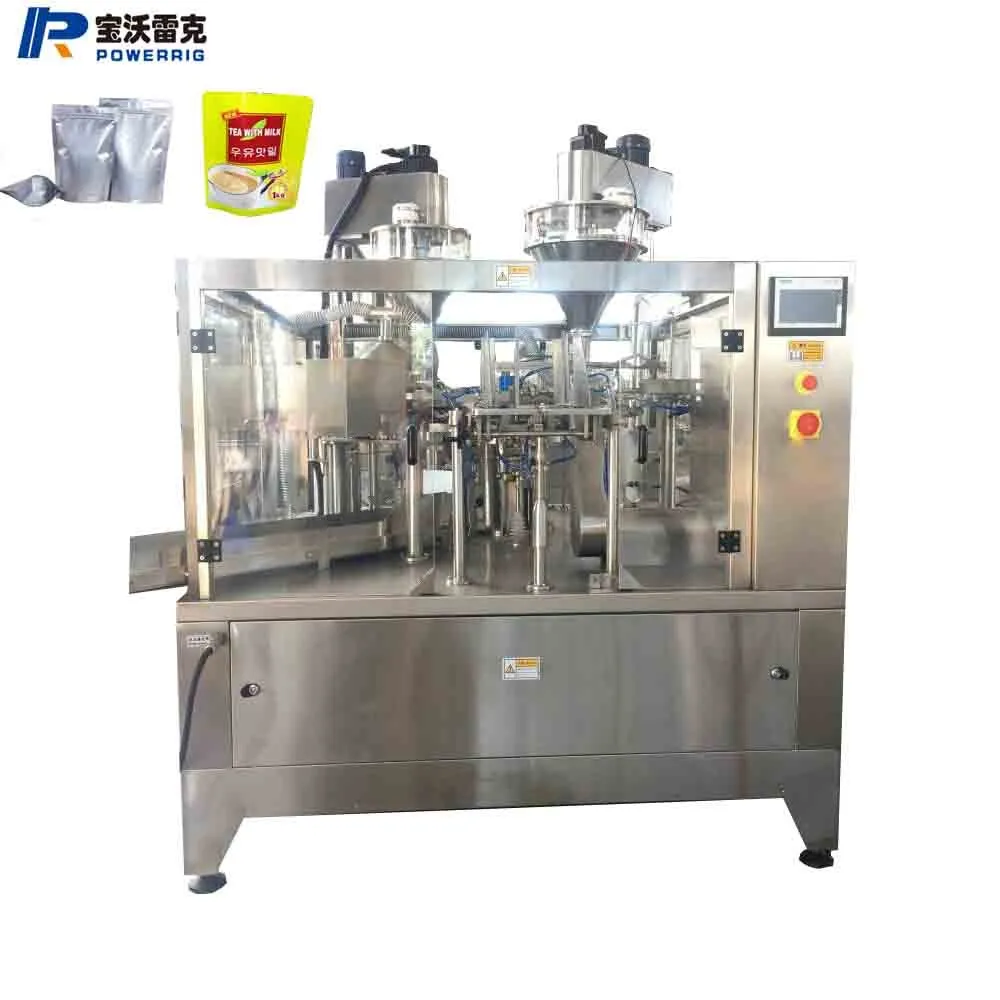

Liquid soap stand up pouch bag filling machine liquid detergent dish wash liquid spout bag filling sealing packing machine

This packaging machine is suitable for high-precision metering bag filling and sealing of powder materials. Put some bags in the bag and pass the vacuum

The suction cup takes the bag on the bag, and the main turntable grips the bag and enters the coding station (standard: ribbon coding, optional hot-to-hard coding, coding); the code is completed and enters the vacuum bag opening station. The bag is sucked open by the suction cup vacuum, and is assisted by blowing air. The bag is opened to enter the rough filling station. The station is composed of screw filling device, 1# vibration and coarse screw filling dust collector. The screw filling mainly depends on the servo motor. Action, when filling, ensure that the material in the bucket is stable but not too low, and the filling amount per bag reaches 90%. The dust cover is provided for the coarse dusting. The shape under the vacuum hood is set according to the size of the bag mouth, and drops to the bag mouth when filling. The entire filling process is in a relatively closed space, and the dust is pumped away by the vacuum cleaner through the vacuum cleaner interface.

Parameter of stand up spout pouch filling sealing machine
Pouch material
PP , PE or Composite film
Air consumption
0.6m3/min
Bag size
 Width:200-310mm Length:100-450mm
Pouch type
zipper pouch, stand up pouch , spout pouch ,flat pouch
Power
10 kw
Packing speed
10-30 bags/min

Main Features

1) Easy to operate, using German Siemens PLC control, with touch screen man-machine interface control system, easy       to operate

2)  Frequency control, this machine uses the frequency conversion speed control device, and the speed can be

     adjusted freely within the specified range.

3) Automatic detection function, if the bag is not opened or the bag is incomplete, no feeding, no heat sealing, the bag         can be reused, no material is wasted, and the production cost is saved for the user.

4)  The adjustment of the bag width is controlled by the motor, and the width of the machine clamp can be adjusted by        pressing the control button, which is convenient to operate and saves time and cost

Detailed Images

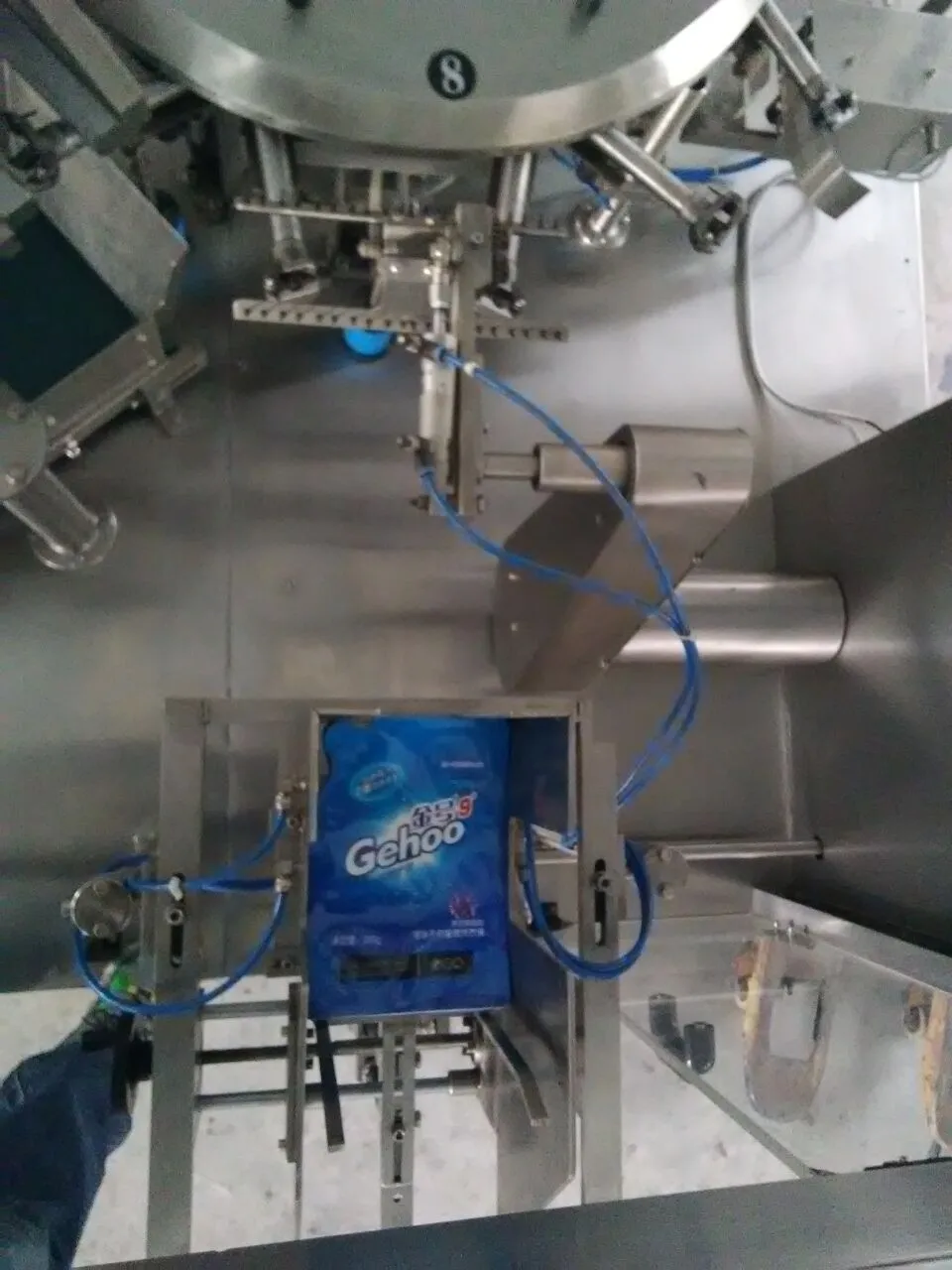

Catch bag device


 Date printer device

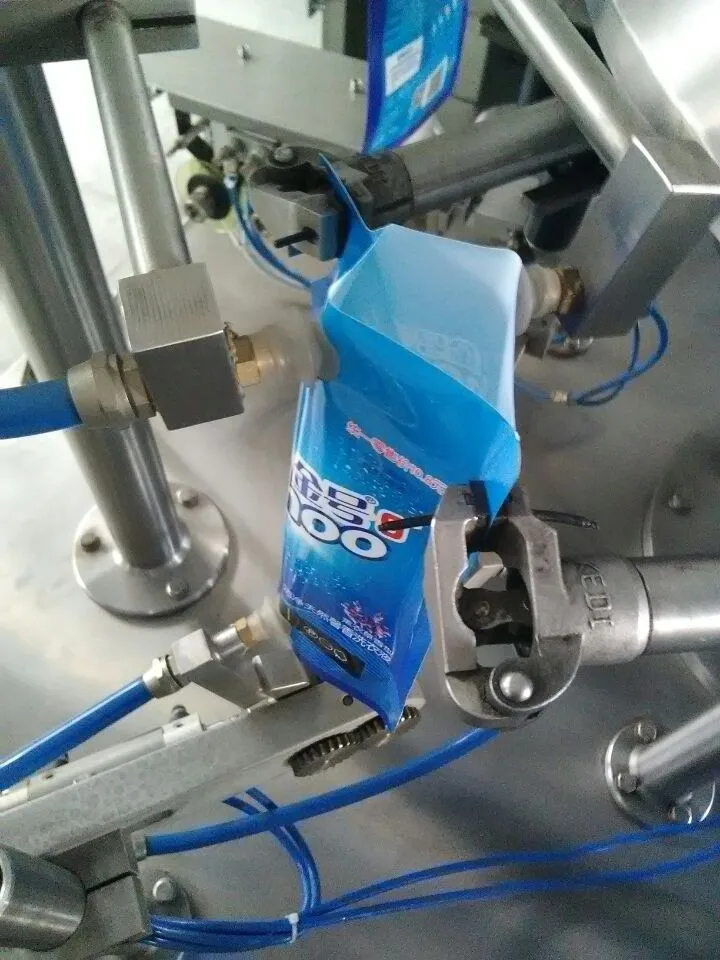

Open bag device

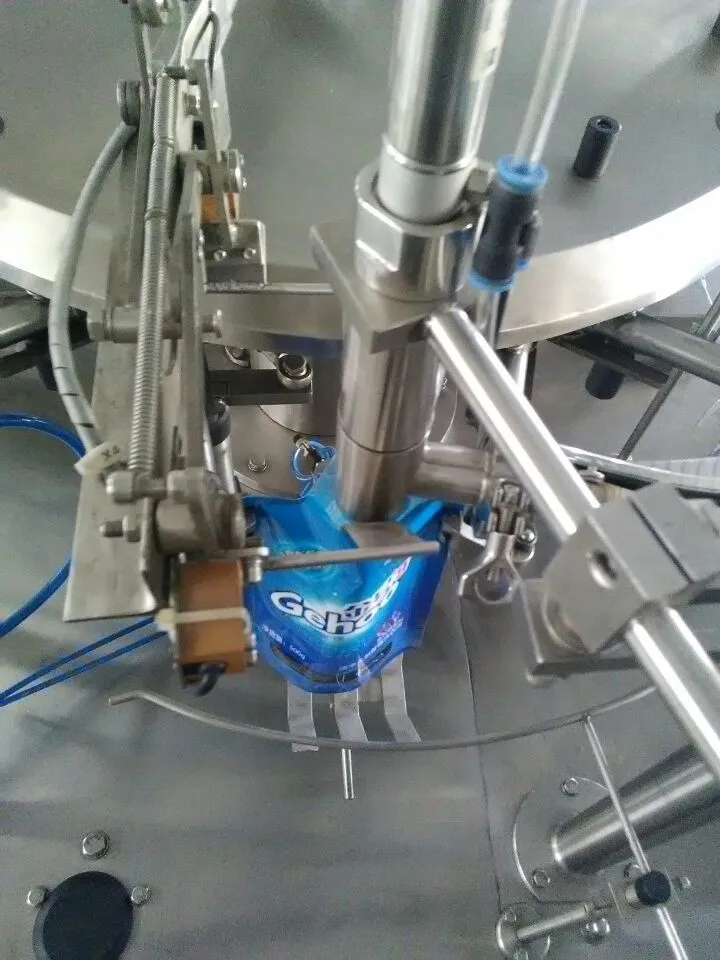

Feed and filling material device

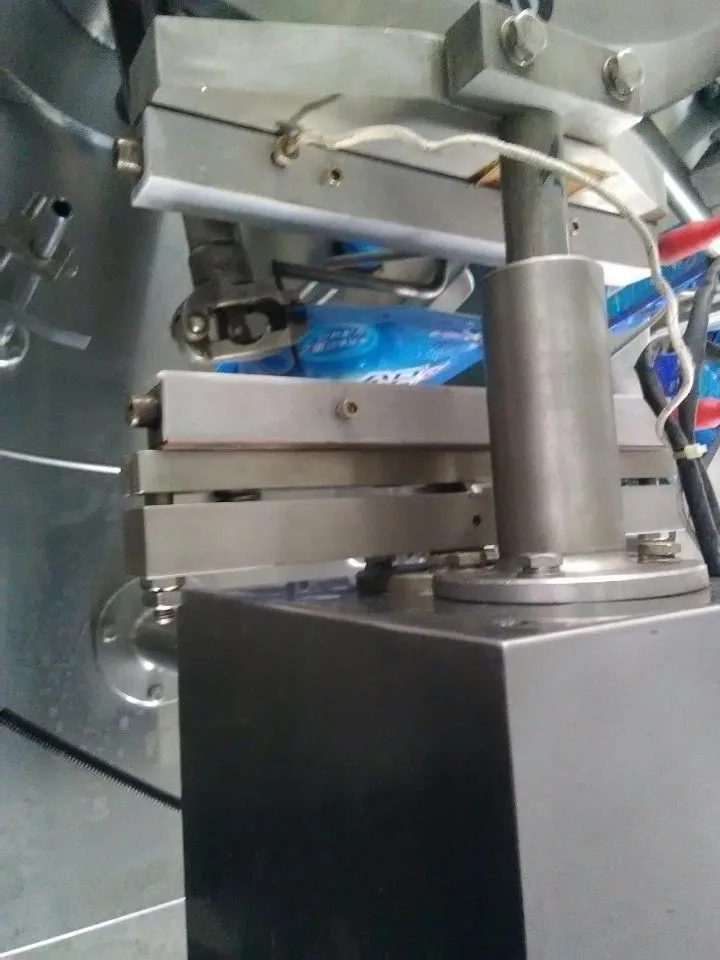

Heating sealing device

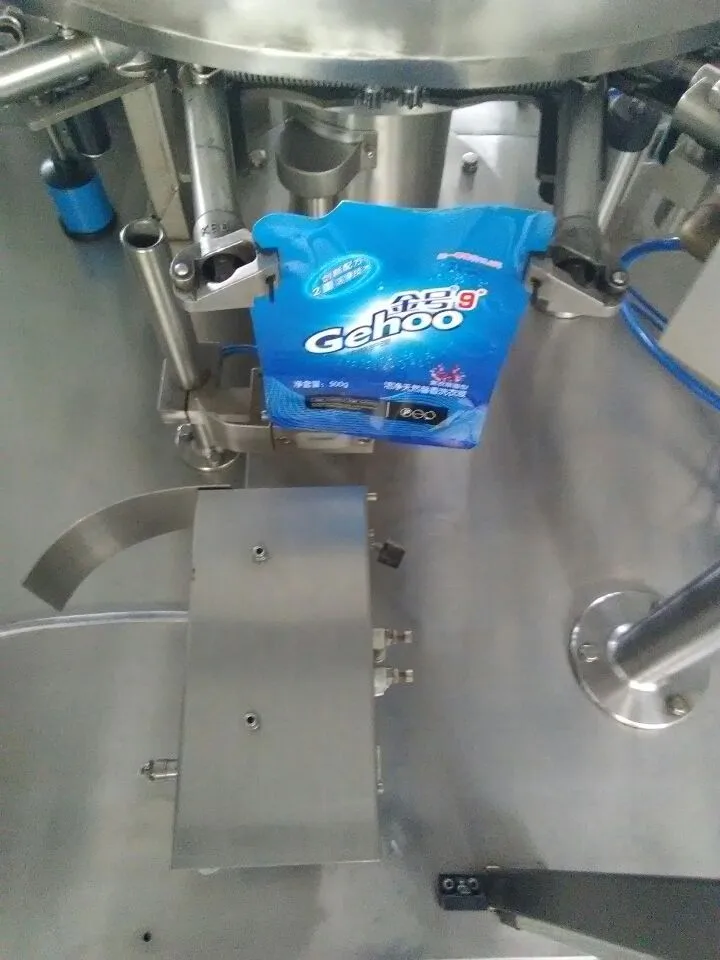

Finish product output


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
3550mm *1020mm *2400mm
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
RFQ


Q:How Can I get a detailed quotation of Liquid soap stand up pouch bag filling machine liquid detergent dish wash liquid spout bag filling sealing packing machine  from you?
Just send us inquiry through this web page is ok. I will reply your any question within in 6 hours.

Q:Can your company able to offer 2 years gurantee?

Yes it's no problem for our company. During the warranty, if you need any spare parts, we will delivery it to you in DHL for free.

Q:Do you offer a free set of replacement parts for parts that commonly wear out quickly?
All spare parts are always avaliable for delivery. Above 90% spare parts are made by ourselves. Because we have our own processing center, so we can supply at anytime.

Q:What is the whole production line?Can i connect labeling machine ,bottle feeder with filling machine in whole line?
I do not know how many meters of conveyors are involved so can not determine the over-all size of the line with all of its components.

We can help you match pipe and pump to transfer material form raw material tank to filling directly., so it can be totally auatomaticlly.We will design and make a layout plan according to customer's factory floor plan.

Q:What is the cost to send installation/training staff? How many staff do you need to send?

Whole installation/traning process needs 1 peoples. Around 10days. Client needs to provide us round-air ticket, visa fee, local transpotation, accomodation, food, and 80USD/day/person.

If you have any questions or requirements about HLiquid soap stand up pouch bag filling machine liquid detergent dish wash liquid spout bag filling sealing packing machine ,please kinding send your inquiry:
