CE standard nail polish gel bottle filling and capping machine

FOB Reference Price:Get Latest Price
$13,000.00 - $29,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
L45
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
Medical, Chemical
Packaging Material:
Plastic, Glass
Type:
Other
Condition:
New
Packaging Type:
Bottles
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
110v/220v/380v/480v
Power:
2.5kw, 2.0KW
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
powerrig
Weight:
1000kg, 1000 kg
Dimension(L*W*H):
1200*980*1500mm
Certification:
CE
Filling volume:
25-250ML. 50-500ML.100-1000ML.250-2500ML
Capacity:
30-45 bottles/hour
Filling Precision:
≤±1%
Capping Rate:
≥99%
Stoppering rate:
≥99%
Air Supply:
1.3 m3/h 0.4-0.8Mpa
Product name:
manual nail polish filling machine
Filling material:
nail polish nail gel polish gel
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.Export free fumigating wooden case 2.One set in one case with film wrapped
Port
shanghai/ ningbo port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Suitable package
Product Description
Paremeter of nail polish filling capping machine
Filling range
10-30ml/30-120ml/100-200ml
Power

2.5KW
Voltage
110V/220V/380V
Production capacity
1500-3000 BPH
Air Supply
1.3 m3/h 0.4-0.8Mpa

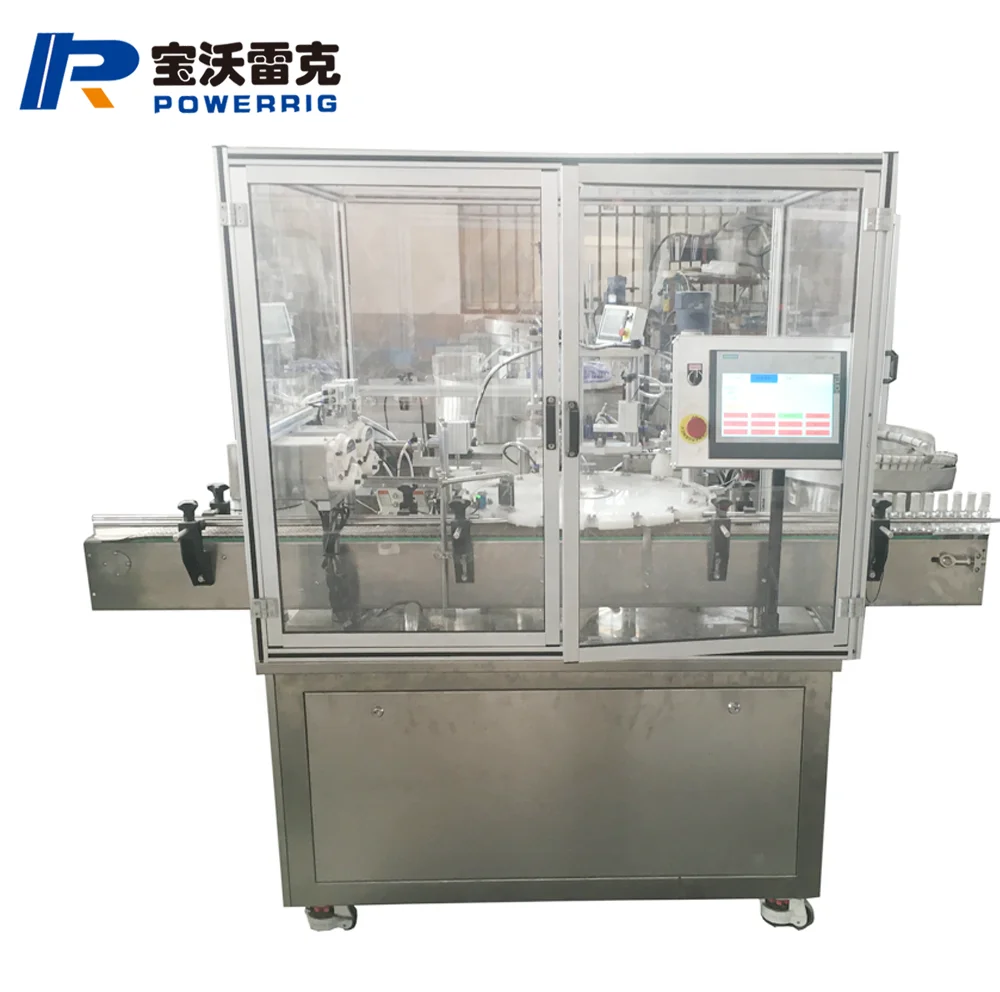

CE standard nail polish gel bottle filling and capping machine
 The nail polish filling capping machine is made for small bottles , such as nail polish bottle, nial gel ,polish glue,  e liquid, eye drop, suitable for square and round bottles. It is a filling capping 2 in 1 machine.The machine can unscramble the outer cover and feed it automatically. The machine can connect with bottles feeding table and labeling machine.

Main feature:
1. Adopt peristaltic pump filling, run stable and high precision. The structure of peristaltic pump is easy to install, do not     need any tool for changing the gel tube.
2. PLC control and touch screen operation, filling speed adjusted steplessly.
3. Imported cam, high efficiency, have the functions of filling, plug arranging, plugging, cap arranging, capping.
4. Machine made of SS304, the contact parts made of SS316L, meet GMP standard.
5. Filling capacity can be adjusted on touch screen, and the parameters can be saved in machine automatically.
6. Man-machine dialogue system setting,visual convenient operation ,accurate filling level
7. The mainframe running speed is step frequency conversion.
8. The product quantity can be controlled.
9. Multi-failure prompt function (such as depression, no filling and no inserting plug etc).
10. Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

Detailed Images

Outside cap vibrating plate and load guide

Outside cap vibrating plate and loading guide ,usded to sort of caps and loading caps into capping station.

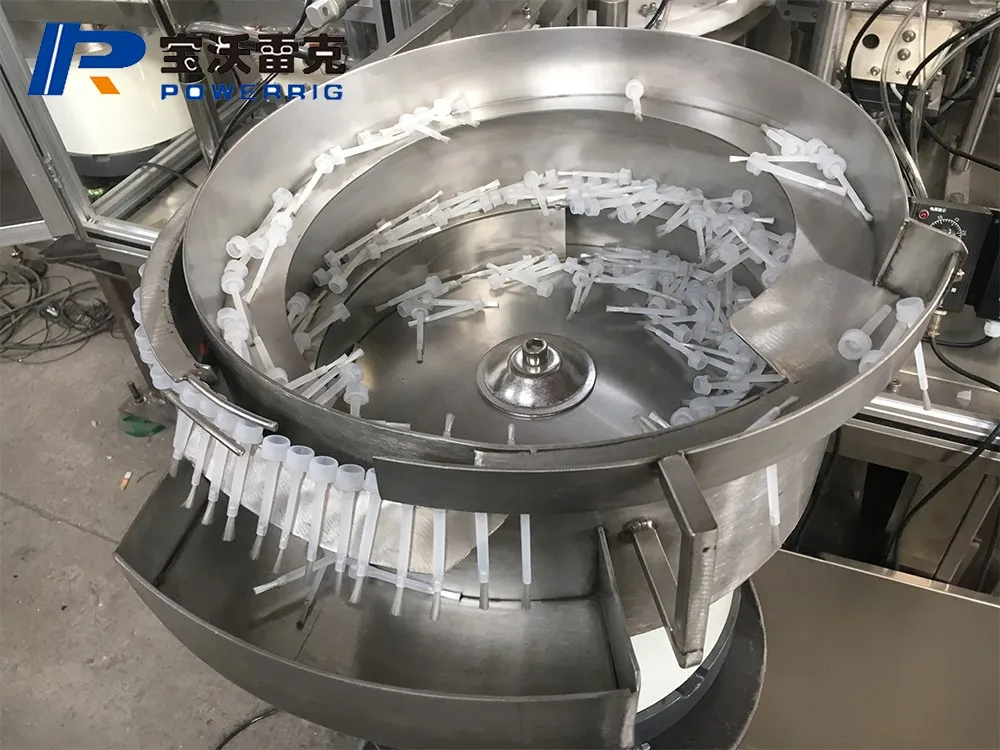

Inner brush cap vibrating plate and load guide

Inner brush cap vibrating plate and loading guide ,usded to sort of inner brush and loading brush into capping station.

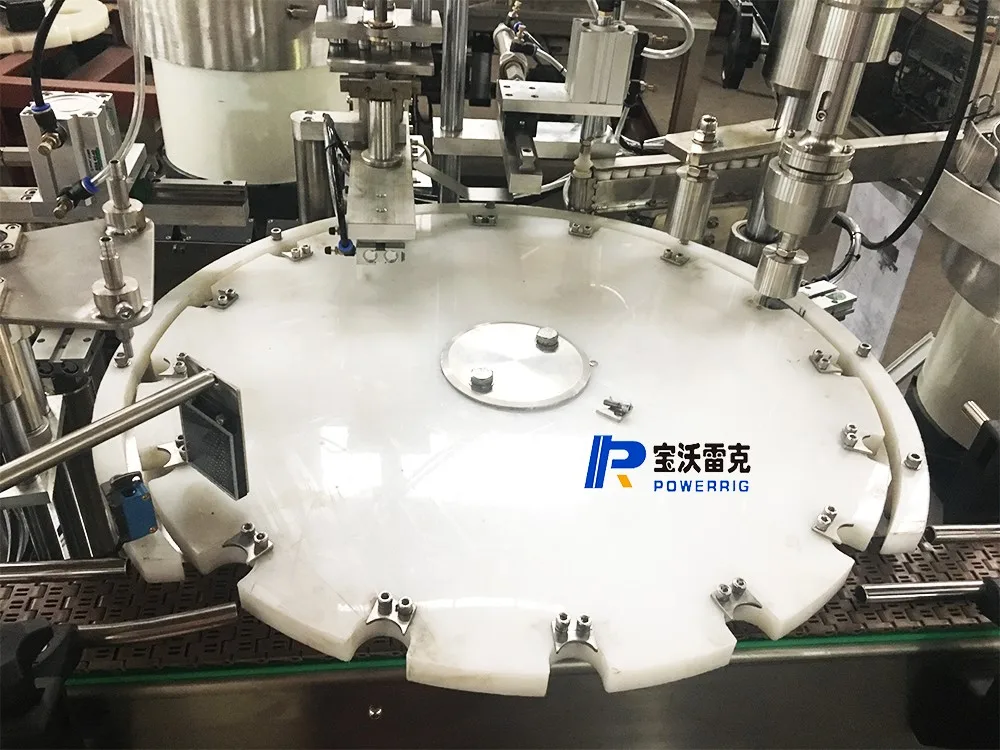

Rotary table host

All work station in one host table, 2 nozzle filling --  Plugging inner plug -- Plugging spray cap / brush cap /  --- Right up oustide cap  --- Screw outside cap-- labeling -- packing.

Loading inner brush guide

Used to loading the brush cap into capping station

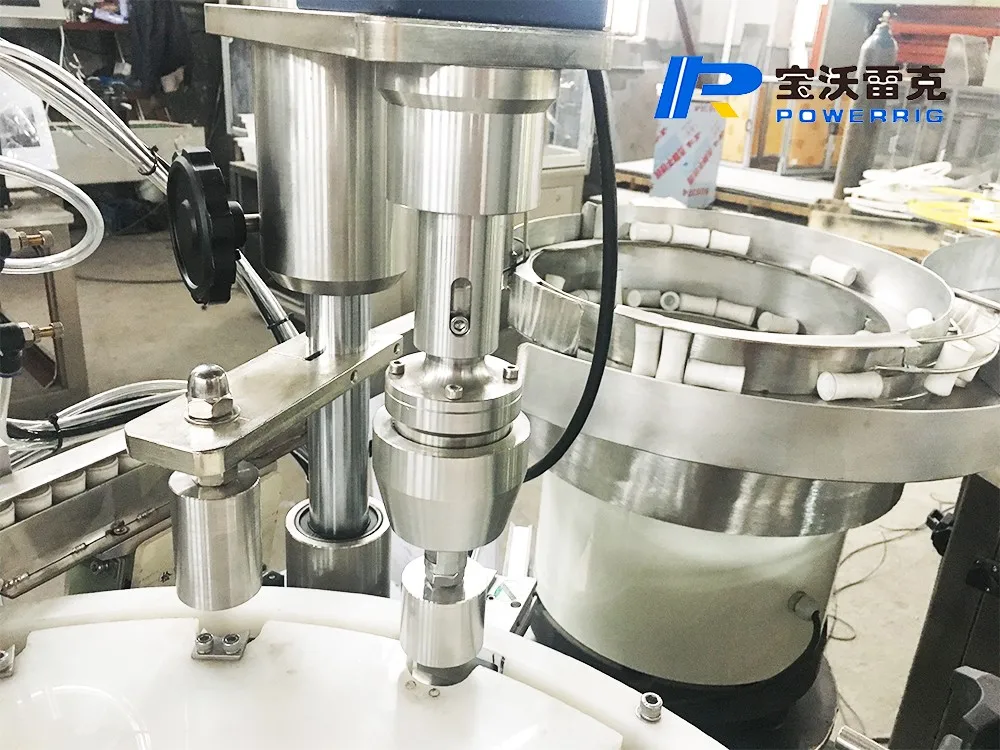

Screw capping head

Screw capping the outside cap

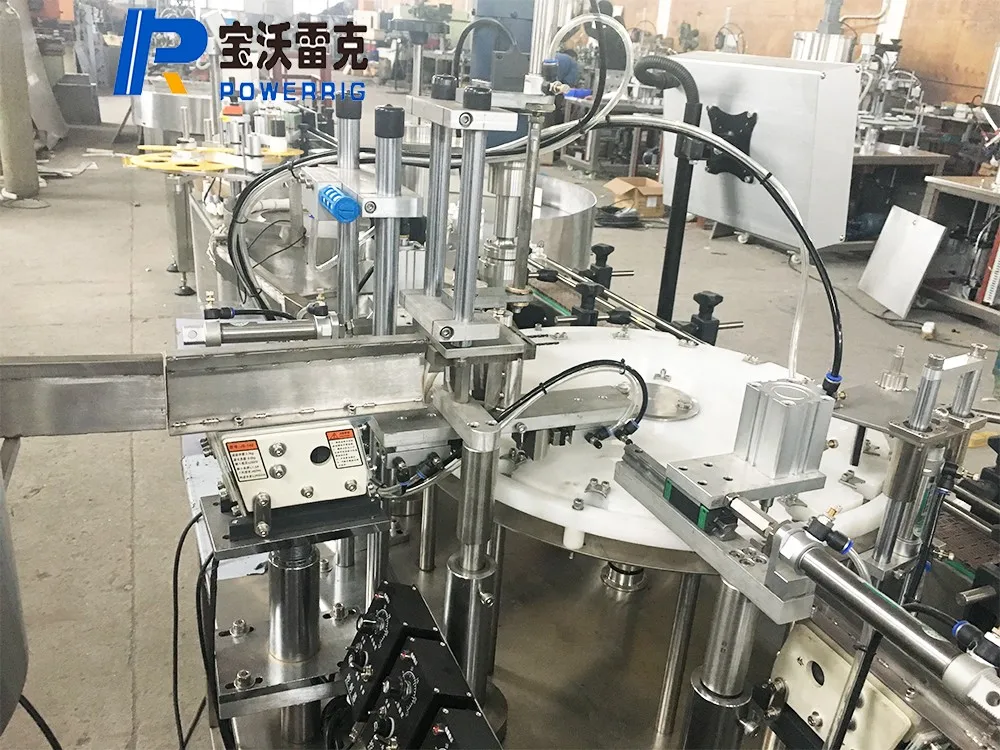

Plugging Station

Plugging inner plug and inner brush

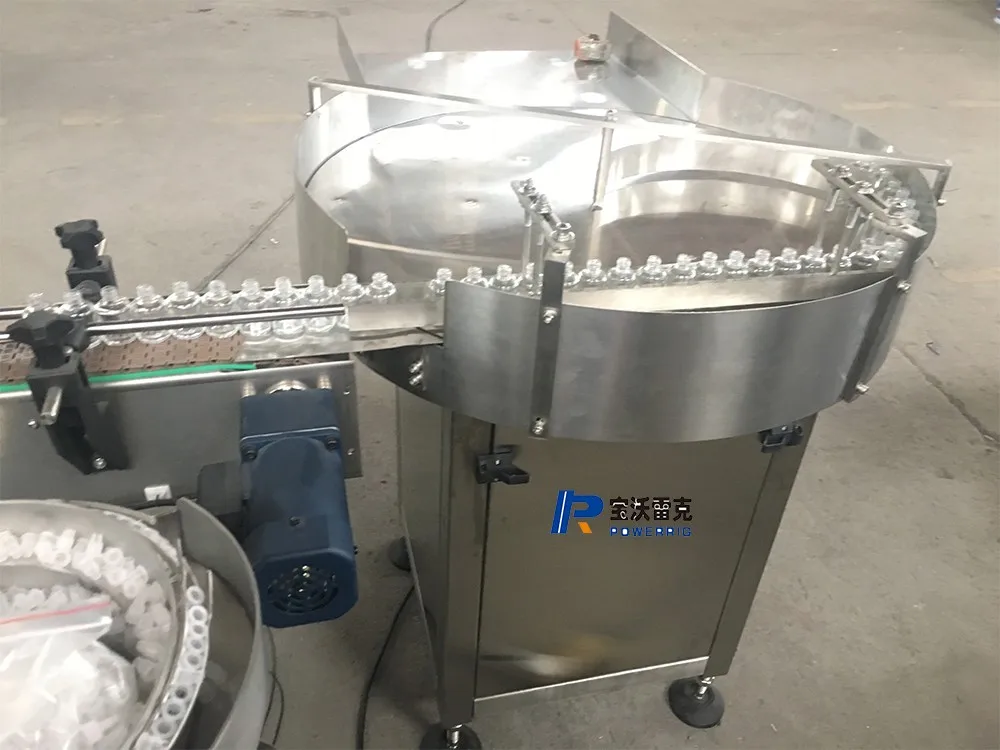

Bottle feeder /colleaction/ turn table

Can customize bottle feeder send bottle and colleaction table to collect bottle and connect table to connect filling machine and capping machine, used to transition bottle from filling machine to capping machine

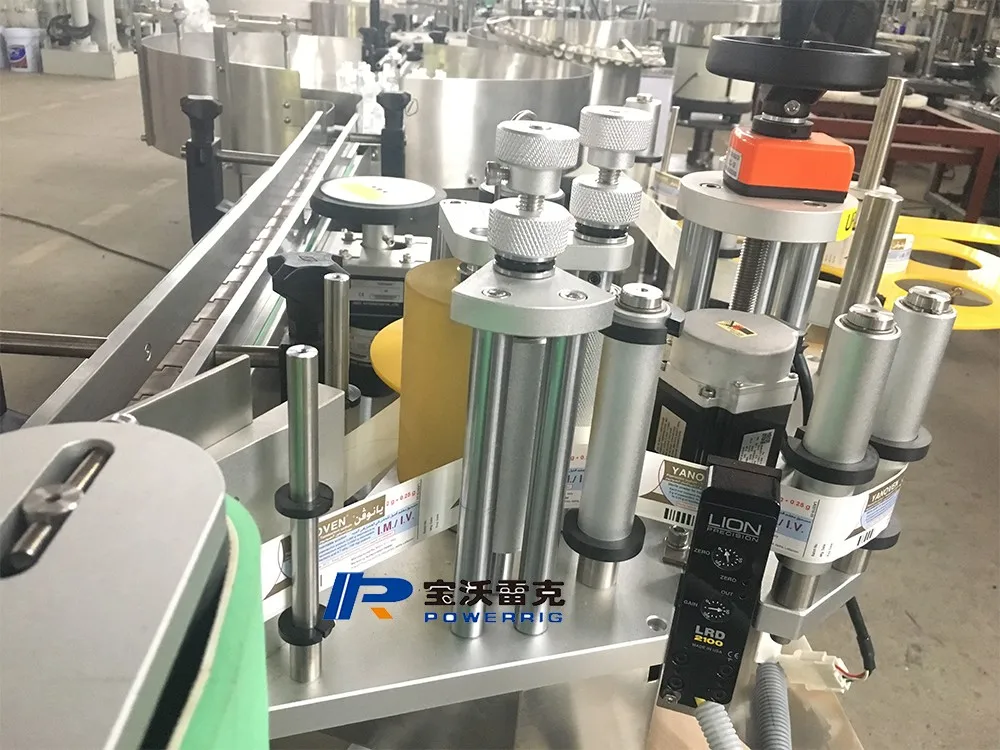

Labeling machine

After filling and capping

Can customize connect labeling machine, make a whole production line

If you have any questions or requirements about this CE standard nail polish gel bottle filling and capping machine
 ,please kinding send your inquiry:

Our Service

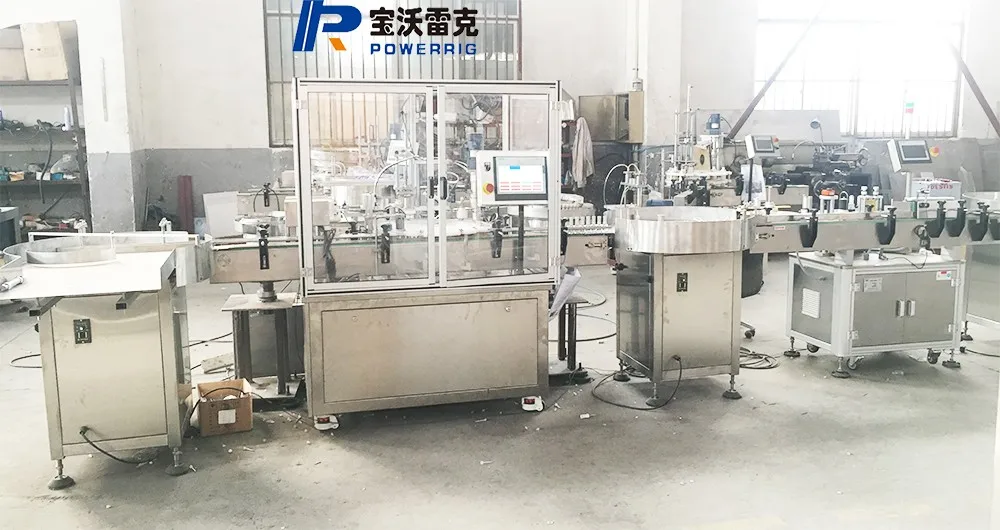

 If you need the whole produdction line of the Semi-automatic manual nail polish bottle gel polish filling capping machine line , we also can help you match the labeling machine after filling and capping machine and the bottle feeder and collection table and so on


And the bottle feeder unscrabler table or box type bottle unscrabler used to sort of bottle and send bottle into filling capping machine automatically, need match which type labeling machine or which type
bottle feeder machine need customize according to customize different bottles.

1. Can help customer find raw material, package bottle, offer whole line serivce
2. Offer customize serivce, according to customer different tube customize machine
3. Offer Machine layout design according to customer's site size
4. Offer engineer Go abroad to install and trainning
5. Whole-lifer after sale serivce



Packing & Delivery
Packaging
Size
1800*1000*1500mm
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our factory
FAQ

 Q:How Can I get a detailed quotation of CE standard nail polish gel bottle filling and capping machine from you?

Just send us inquiry through this web page is ok. I will reply your any question within in 6 hours.

Q:Can your company able to offer 2 years gurantee?
Yes it's no problem for our company. During the warranty, if you need any spare parts, we will delivery it to you in DHL for free.

Q:Do you offer a free set of replacement parts for parts that commonly wear out quickly?
All spare parts are always avaliable for delivery. Above 90% spare parts are made by ourselves. Because we have our own processing center, so we can supply at anytime.

Q:What is the whole production line?Can i connect labeling machine ,bottle feeder with filling machine in whole line?
I do not know how many meters of conveyors are involved so can not determine the over-all size of the line with all of its components.
We can help you match pipe and pump to transfer material form raw material tank to filling directly., so it can be totally auatomaticlly.We will design and make a layout plan according to customer's factory floor plan.

Q:What is the cost to send installation/training staff? How many staff do you need to send?
Whole installation/traning process needs 2peoples. Around 10days. Client needs to provide us round-air ticket, visa fee, local transpotation, accomodation, food, and 80USD/day/person. .



If you have any questions or requirements about this CE standard nail polish gel bottle filling and capping machine,please kinding send your inquiry:
